Innovative Solutions for Efficient Machining: "The FU1600 milling machine is engineered for efficient machining of heavy workpieces. Its large table enables precise execution of even complex machining tasks. Servo motor drives and ball screws on every axis provide both power and excellent control. In addition, the universal swivel head, central lubrication and modern LED lamp are among the features that make this milling machine suitable for professional use."

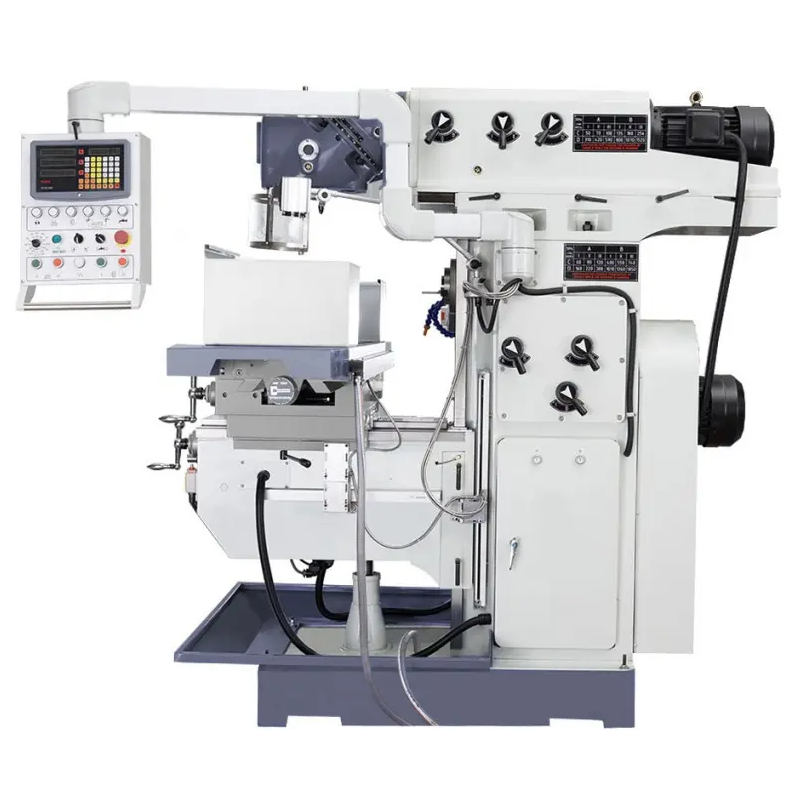

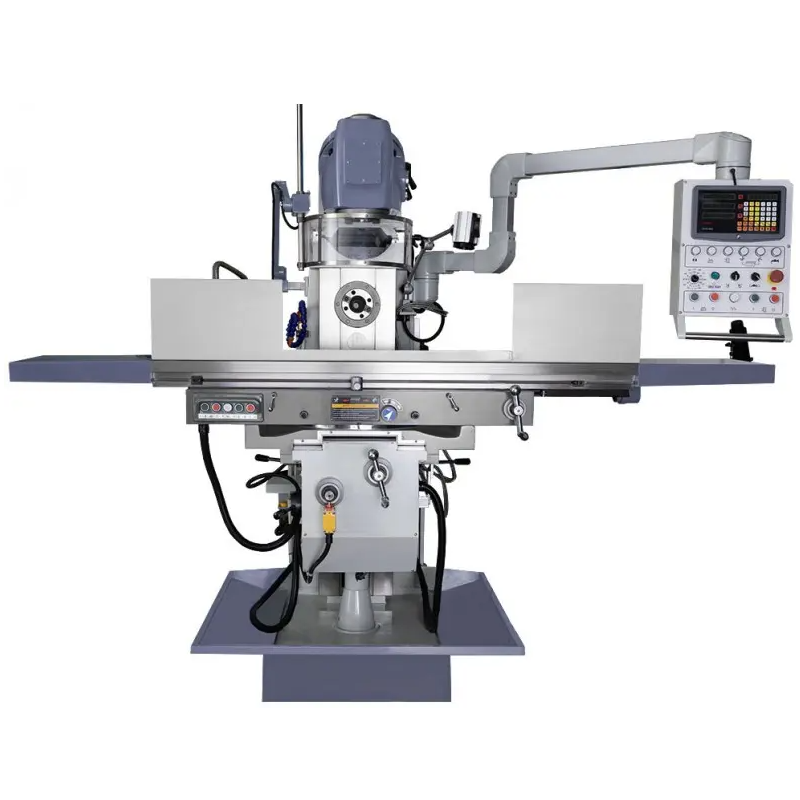

FU1600 Knee-Type Milling Machine is a professional universal metal milling machine designed for machining large and heavy components. The 1600x500mm worktable with a load capacity of 1,800kg, ISO50 spindle and 7.5kW main drive provide parameters suitable for intensive operation in production facilities, toolrooms and maintenance departments.
The FU1600 has been designed as an industrial knee-type milling machine for demanding machining processes. The 1600x500mm table with a load capacity of 1,800kg enables stable clamping of heavy workpieces and extensive machining tooling. Travels of 1,200mm on the X axis, 700mm on the Y axis and 500mm on the Z axis provide a wide positioning range relative to the tool.
The quiet-running vertical spindle gearbox uses hardened and ground gears, supporting stable operation of the drive mechanism. The universal milling head, swivelling in two planes, extends the spindle positioning range and enables machining of surfaces requiring a change in the tool approach angle.
One of the machine's key assemblies is the spindle with an ISO50 taper. The speed range includes 27 steps from 30 to 2,050rpm, allowing the rotational parameters to be matched to the tool diameter, material type and nature of the operation. The distance from the spindle nose to the table surface is 50 - 550mm.
The milling head swivels in two planes, enabling the tool position to be changed relative to the workpiece. Combining both swivel directions provides a wide range of working positions, allowing the FU1600 universal milling machine to be used for milling flat surfaces, slots and angled surfaces.
The feed speed on the X and Y axes is 10 - 1,000mm/min, while on the Z axis it is 5 - 500mm/min. Rapid feeds reach 2,540mm/min on the X and Y axes and 1,700mm/min on the Z axis. This reduces positioning movements and improves the efficiency of successive operations.
The FU1600 metal milling machine is designed for production facilities, toolrooms, repair workshops and maintenance departments. It is suitable for machining housings, plates, structural components and machine parts, particularly where a high table load capacity, large travel range and the ability to position the head at different angles are required. It is a solution for users looking for a heavy-duty ISO50 industrial milling machine for a variety of machining processes.
| Technical parameters | |
|---|---|
| Table dimensions | 1600x500mm |
| Table load capacity | 1,800kg |
| X-axis travel | 1,200mm |
| Y-axis travel | 700mm |
| Z-axis travel | 500mm |
| Speed range | (27) 30 - 2,050rpm |
| Spindle taper | ISO50 |
| Distance from spindle nose to table surface | 50 - 550mm |
| Swivel head | 360° |
| X-axis rapid feed | 2,540mm/min |
| Y-axis rapid feed | 2,540mm/min |
| Z-axis rapid feed | 1,700mm/min |
| X-axis feed speed | 10 - 1,000mm/min |
| Y-axis feed speed | 10 - 1,000mm/min |
| Z-axis feed speed | 5 - 500mm/min |
| Main drive power | 7.5kW |
| Overall dimensions | 2475x2260x2180mm |
| Weight | 5,000kg |
The equipment configuration enables the FU1600 universal milling machine to be adapted to the requirements of a specific machining process and workstation organisation.
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
A table load capacity of 1,800kg, ISO50 spindle, 7.5kW drive, large axis travels and a machine weight of 5,000kg make the FU1600 suitable for demanding industrial applications. Contact a CORMAK advisor to select the equipment version and tooling suitable for the workpieces being machined and the planned milling process.
