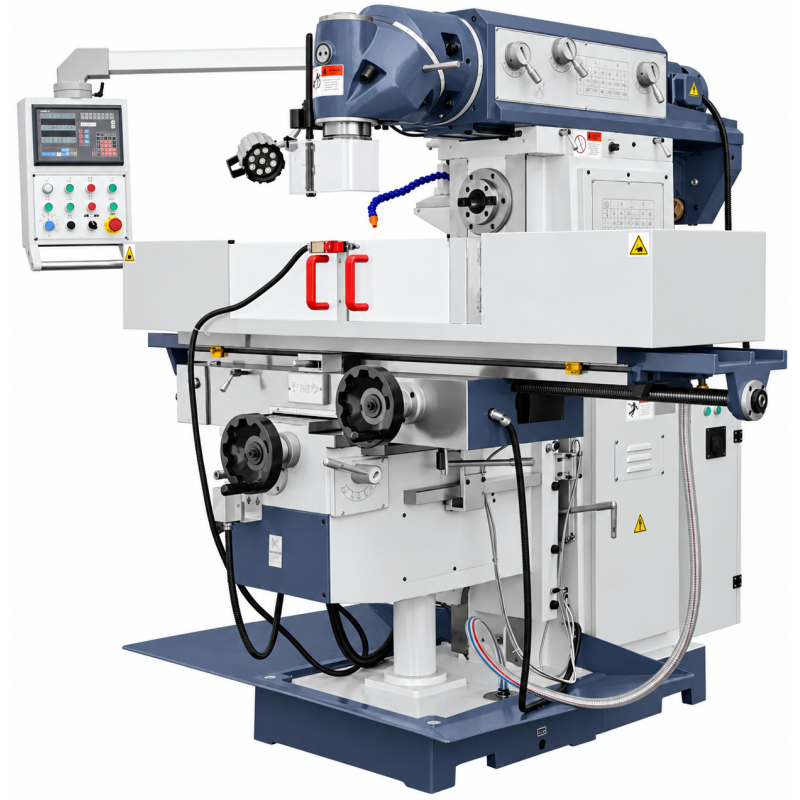

The UWF 150 Universal Milling Machine is an advanced machine combining the precision of servomotors for the X, Y and Z axes with an independently driven vertical head. Thanks to the handwheel for precise tool positioning and smooth movement, the machine delivers high precision in a wide range of milling operations. Its solid, heavy-duty construction provides stability and durability for demanding machining tasks. Simultaneous movement of several axes and automatic lubrication improve operating efficiency and productivity.
UWF 150 SERVO Universal Milling Machine is an industrial metal milling machine designed for precise and efficient machining of workpieces of various sizes. Servo drives on all axes, a 1600x360mm worktable, ISO50 spindles and a vertical head with spatial positioning capability provide a wide range of applications in toolrooms, production facilities and maintenance departments.
The UWF 150 SERVO has been designed as a professional servo-driven milling machine for tasks requiring precise control of table movement. Maximum travel of 1300x320x460mm in the X/Y/Z axes enables machining of large workpieces, while feeds of 30-750/20-500/15-375mm/min allow the working movement to be adapted to the type of material, tool and operation.
Servo drives on all axes improve positioning control and facilitate repeatable working movements. The servomotor torque of 15Nm provides suitable feed drive parameters for professional machining operations.

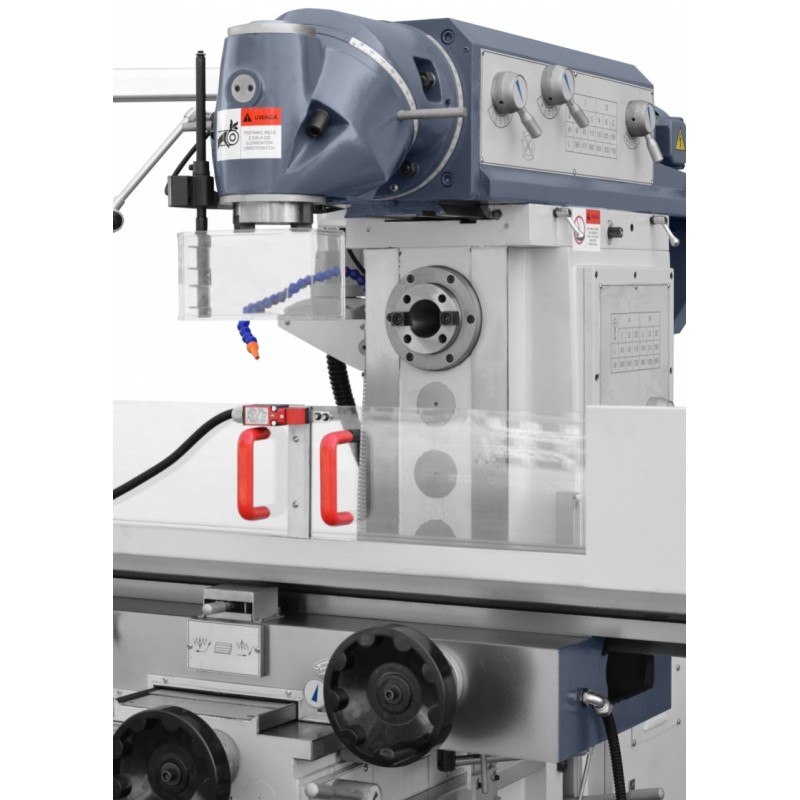

The machine uses vertical and horizontal spindles with 7:24 ISO50 tapers. The vertical spindle is driven by a 4.5kW motor, while the horizontal spindle is driven by a 5.5kW motor. The speed range is (12) 60-1750rpm for the vertical spindle and 60-1800rpm for the horizontal spindle, allowing the speed to be adapted to the tool diameter and material being machined.
The trapezoidal X-axis guideways and wide rectangular Y/Z-axis guideways form a stable guidance system for the working assemblies. Ball screws on all axes support repeatable movement, while the central lubrication system ensures regular delivery of lubricant to the guideways and reduces maintenance requirements.

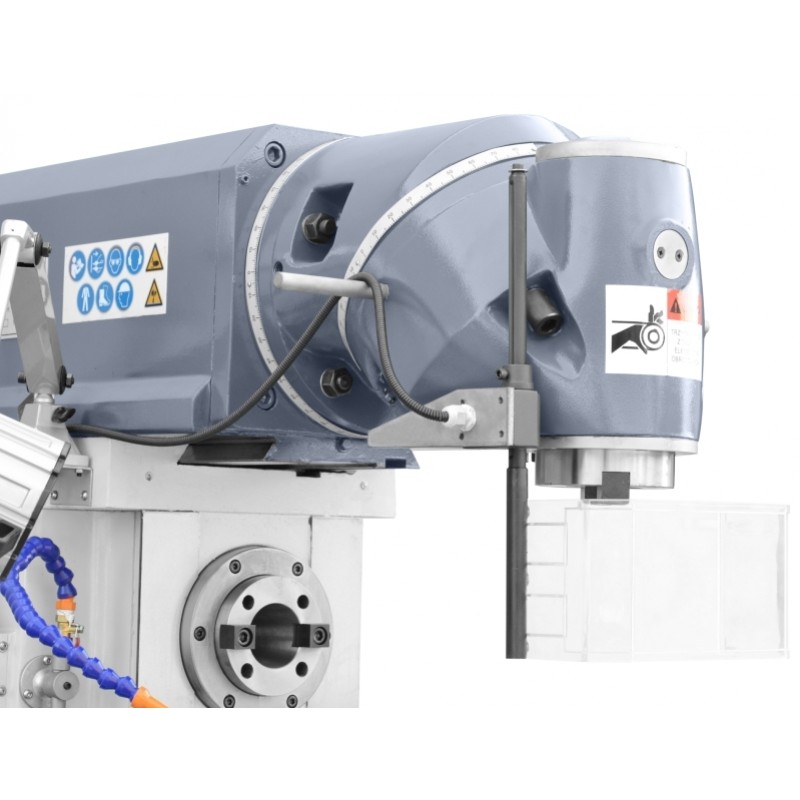

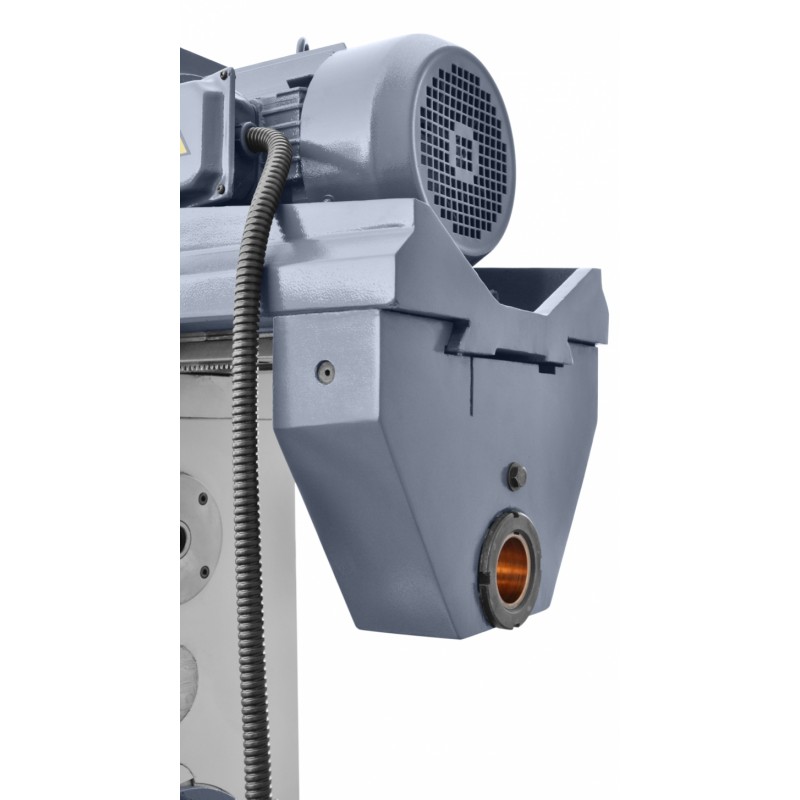

The tilting and adjustable upper beam and 3D vertical head increase spindle positioning possibilities. This enables surfaces to be machined at different angles and reduces the need for repeated workpiece setup. As a result, the UWF 150 SERVO meets the requirements of professional universal milling machines used for varied production tasks.
The combination of servo drives, a three-axis digital readout and wide feed ranges enables precise control of working movement. The 550mm arm travel, spindle-to-table surface distance of 196-656mm and horizontal spindle-to-table distance of 20-480mm allow the working area to be adapted to the geometry of the workpiece and tooling used.
The UWF 150 SERVO universal milling machine is suitable for metalworking facilities, toolrooms, repair workshops, maintenance departments and one-off and small-batch production. It can be used for milling flat surfaces, slots, inclined surfaces and components requiring vertical and horizontal machining. It is a professional metalworking machine for users requiring high setup flexibility and precise feeds.
| Technical parameters | |
|---|---|
| TABLE DIMENSIONS | 1600x360mm |
| MAX. TABLE TRAVEL (XYZ) | 1300x320x460mm |
| TABLE FEED (XYZ) | 30-750/20-500/15-375mm/min |
| SPINDLE TAPER | 7:24 ISO50 (H) 7:24 ISO 50(V) |
| ARM TRAVEL | 550mm |
| SPINDLE-TO-TABLE SURFACE DISTANCE | 196-656mm |
| HORIZONTAL SPINDLE-TO-TABLE DISTANCE | 20-480mm |
| SPINDLE SPEED | (12) 60-1750(V) 60-1800(H)rpm |
| HORIZONTAL MOTOR POWER | 5.5kW |
| VERTICAL MOTOR POWER | 4.5kW |
| SERVOMOTOR | 15Nm |
| DIMENSIONS | 1800x2100x2000mm |
| WEIGHT | 2,885kg |
The combination of servo drives, two ISO50 spindles, a large table and extensive working area makes the UWF 150 SERVO suitable for demanding industrial applications. Contact a CORMAK advisor to select tooling and the machine configuration for the type of workpieces, materials and planned milling processes.
