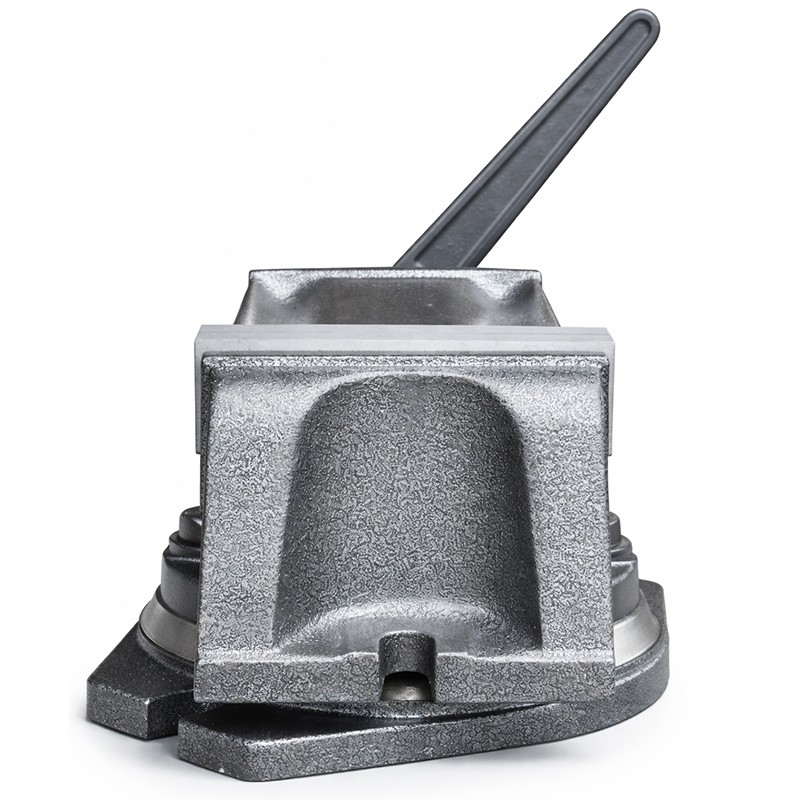

Swivel Machine Vice CORMAK QH100

CORMAK QH100 Machine Vice 100x80mm – Precision Clamping for Demanding Machining Operations

Machine vices are an essential part of the equipment used in engineering workshops and toolrooms. The QH100 machine vice 100x80mm features a robust construction designed for use with bench drilling machines, milling machines, grinding machines and planing machines. Thanks to its swivel base and high manufacturing precision, this vice enables efficient and repeatable workpiece clamping, even under intensive operating conditions.

Key Advantages of the QH100 Machine Vice

• Precision 360° graduated scale – allows the vice to be rotated in 1° increments, significantly increasing positioning flexibility during machining operations.
• High-grade cast iron – both the body and jaws are made from durable cast iron, providing increased resistance to deformation and vibration.
• Protected lead screw – protection against swarf and contamination extends service life and ensures smooth operation.
• Removable swivel base – allows the vice to be used in a fixed configuration for operations requiring maximum rigidity.

Construction and Technology

The QH100 is a swivel machine vice with a compact, carefully designed construction. Its compact body, integrated with the base, ensures stability when machining materials of varying hardness. Hardened jaws that can be replaced provide firm and secure workpiece clamping. To maintain full accuracy, the manufacturer recommends machining the mating surfaces of new replacement jaw inserts.

Precision and Operating Efficiency

The QH100 ensures highly repeatable workpiece positioning, even when its orientation is frequently changed. The high clamping force of up to 2,000kg provides stable workpiece holding during drilling, milling and grinding. High rigidity eliminates the risk of vibration and movement, directly improving machining quality.

Applications

This professional drilling machine vice and vice for other metal-cutting machines is suitable for:

• toolrooms and metalworking workshops,
• series production facilities,
• individual workpiece machining in maintenance departments,
• prototyping and precision machining departments.

Standard Equipment

• 360° swivel base with 1° graduations
• Replaceable hardened jaws
• Lead screw protection

QH100 Machine Vice Technical Specifications

Order the QH100 Vice – Precision Clamping for Workshop and Production Applications

If you are looking for a machine vice that combines compact construction with high clamping force and flexible positioning, the QH100 is an excellent choice. Add it to your basket and ensure reliable workpiece clamping in your workshop with proven CORMAK quality.
