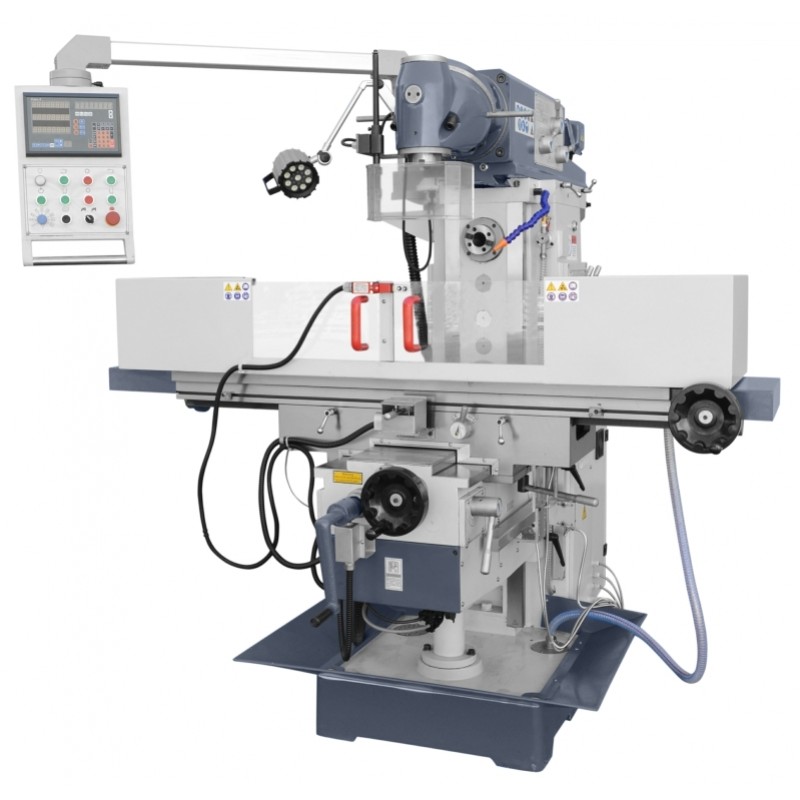

The UWF 120 SERVO Universal Milling Machine is an innovative solution for a variety of milling operations. Servomotors for the X, Y and Z axes and an independent vertical head drive enable precise milling at different angles. The handwheel provides accurate tool positioning, while smooth movement makes operation intuitive and efficient. Its solid, heavy-duty construction ensures stability even during demanding tasks while supporting long machine service life.
UWF120 SERVO Universal Milling Machine is an industrial metal milling machine equipped with servo drives for the X, Y and Z axes and an independent vertical head drive. The 2,100kg construction, 1500x320mm worktable and wide range of parameter adjustment enable precise milling operations in toolrooms, production facilities, repair workshops and maintenance departments.
The UWF120 SERVO combines the classic construction of an industrial universal milling machine with a modern drive system. The use of servo drives for the X, Y and Z axes enables smooth and precise working movements, improving control over the machining process and making it easier to adapt parameters to the type of material, workpiece geometry and tool used.
The heavy cast-iron machine body reduces the effect of vibration during cutting, which directly contributes to process stability and the quality of the machined surface. The independent vertical head drive increases machine functionality, enabling a variety of operations without frequent workstation reconfiguration.
The machine is constructed with a cast-iron body whose weight and rigidity support vibration damping during machining. The Schneider Electric electronics and servo drive system control the machine's basic functions and working movements. The ergonomic control panel and digital display make it easier for the operator to monitor axis positions and machining settings.

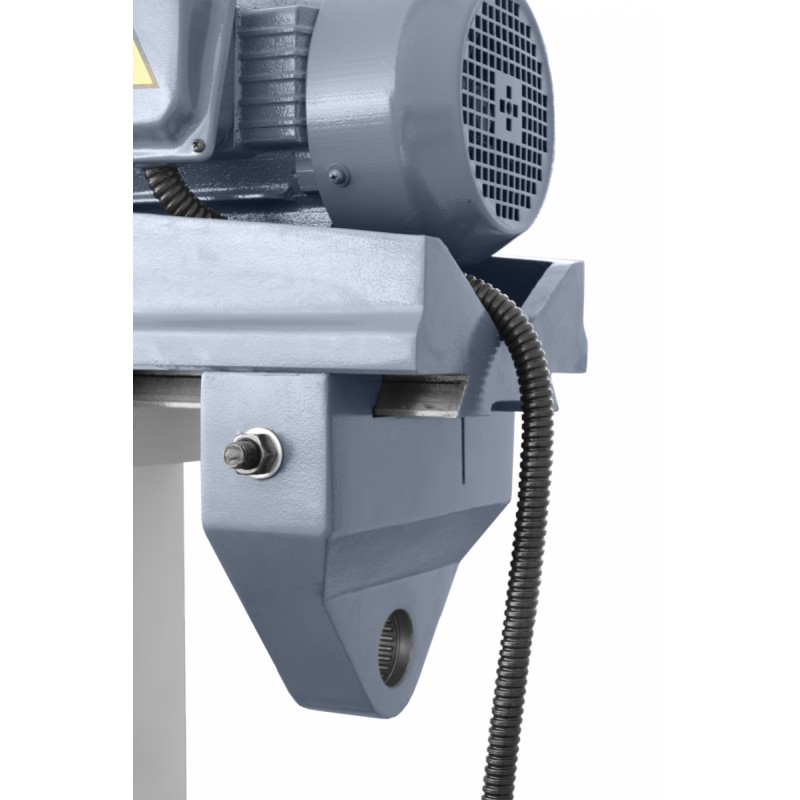

The vertical spindle speed is 45-1660rpm, while the horizontal spindle speed is 34-1320rpm. This allows the cutting parameters to be adapted to the cutter diameter, material type and nature of the operation. Motor power is respectively 2.2kW for the vertical spindle and 3kW for the horizontal spindle.
Table feed adjustable within the range of 25-595mm/min allows the working speed to be adapted to roughing and finishing requirements. The three-axis digital readout improves table position monitoring, reduces the risk of errors when manually measuring movements and supports repeatable settings.
The spindle face-to-table distance of 90-430mm and spindle axis-to-column distance of 400-800mm allow the working area to be adapted to different workpiece sizes and tooling. This enables the UWF120 SERVO to be used as a universal machine tool in facilities performing a wide range of milling tasks.
UWF120 SERVO is designed for professional machining of steel, cast iron and non-ferrous metal components. It is suitable for milling flat surfaces, slots, surfaces positioned at an angle and other typical operations performed by industrial metal milling machines. The machine is suitable for toolrooms, mechanical workshops, production companies and maintenance departments requiring versatility and precise positioning.
| Table dimensions | 1500x320mm |
| Table travel X/Y/Z | 1000/320/340mm |
| Spindle face-to-table distance | 90-430mm |
| Horizontal spindle axis-to-table distance | -130 to 300mm |
| Spindle axis-to-column distance | 400-800mm |
| T-slot width, spacing and quantity | 14mm / 70mm / 3 pcs |
| Spindle speeds | 45-1660(V-11)rpm 34-1320(H-12)rpm |
| Table feeds | 25-595mm/min (8) |
| Spindle taper | ISO40 |
| Supply voltage | 400V |
| Motor power | 2.2kW (V); 3kW (H) |
| Weight | 2,100kg |
| Overall dimensions (LxWxH) | 1630 x 1700 x 1950mm |
The combination of servo drives, a three-axis digital readout, heavy-duty construction and two spindle operating ranges makes the UWF120 SERVO a solution for users requiring a universal metal milling machine with precise positioning, a large working area and extensive process configuration options.
Contact a CORMAK advisor to select the UWF120 SERVO configuration and tooling suitable for the workpieces, materials and planned milling technology.
