Discover a new generation of conventional milling machines with the CORMAK UWF 110 B Universal Milling Machine. Innovative servo drives control axis movement, supporting precise machining and improved machine productivity. Straightforward operation and reliable performance make the UWF 110 B a popular choice among users. Modern technologies facilitate operation while supporting machining process stability, making the machine suitable for users focused on quality and efficiency.
UWF 110B universal milling machine is an industrial metal milling machine designed for precision machining of steel, cast iron and non-ferrous metal components. Its universal design, 1120x260mm worktable and 45-1660rpm spindle speed range enable a wide range of milling operations in toolrooms, production facilities and maintenance departments.
The UWF 110B has been designed for companies that require both high versatility and stable operating parameters from their machine tool during everyday use. The machine weight of 1,350kg helps reduce the influence of vibration during cutting, while the 600x250mm table travel provides suitable working space for machining a variety of workpieces.
The spindle speed range, comprising 11 speeds from 45 to 1660rpm, allows cutting parameters to be adapted to the type of tool, workpiece material and nature of the operation being performed. This enables the milling machine to be used both for machining that requires higher torque at lower speeds and for operations carried out at higher rotational speeds.
The UWF 110B structure has been designed to meet the requirements of professional machining. The machine's high dead weight provides a stable base for its working assemblies, which is directly relevant when milling surfaces, slots and carrying out other operations that require repeatable tool guidance.

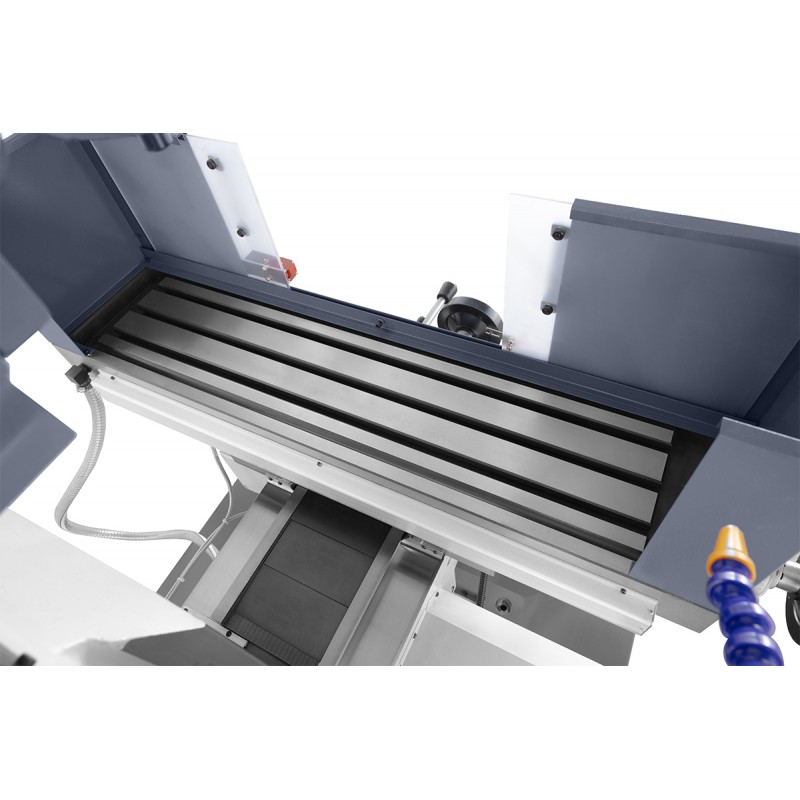

The spindle axis-to-column distance of 0-580mm and spindle nose-to-table distance of 80-480mm increase the possibilities for positioning the workpiece. Three table slots allow the use of suitable clamping elements, vices and additional tooling.

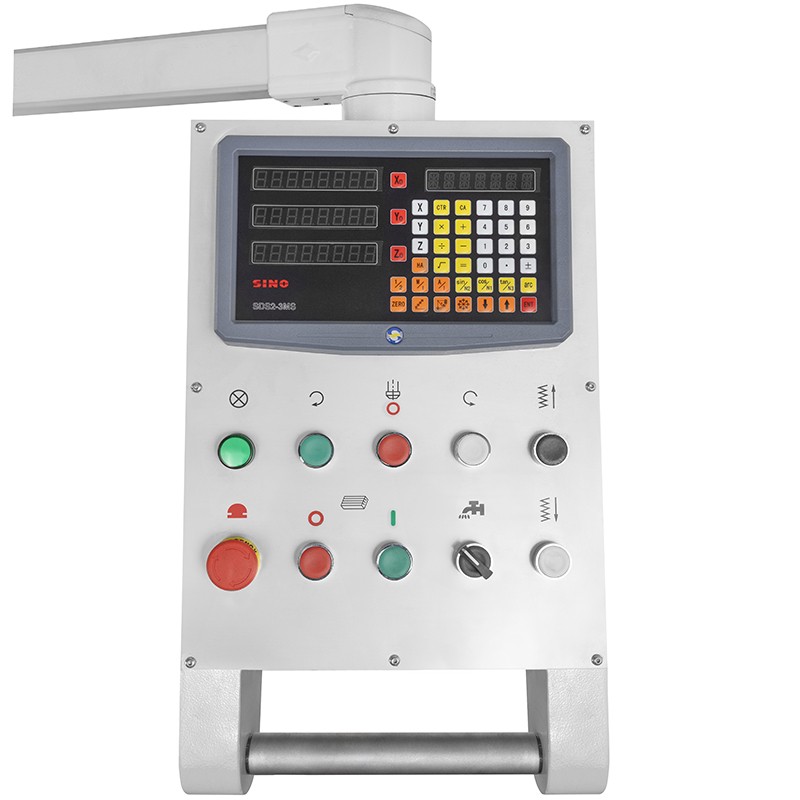

In professional universal milling machines, not only the machining range but also repeatable workpiece positioning and control of the tool position are important. The UWF 110B can be equipped with a 3-axis digital readout, which facilitates movement control and operations requiring precise positioning.
The cooling system helps maintain suitable cutting conditions and dissipate heat from the machining zone. 24V work lighting improves visibility of the working area, while the availability of additional holders, sleeves, dividing heads and heads allows the machine configuration to be adapted to the technology used in the facility.
UWF 110B universal milling machine is suitable for metalworking shops, toolrooms, mechanical workshops, maintenance departments and companies carrying out one-off and small-batch production. The machine can be used for machining flat surfaces, producing slots and other typical milling operations requiring stable workpiece clamping and appropriate selection of cutting parameters.
|
Table dimensions |
1120x260mm |
|
Spindle speeds |
45-1660rpm (11 speeds) |
|
Spindle axis-to-column distance |
0-580mm |
|
Spindle nose-to-table distance |
80-480mm |
|
Table travel |
600x250mm |
|
Motor |
2.2kW |
|
Table slots |
3x14mm x 63mm |
|
Weight |
1,350kg |
|
Dimensions |
1800x1600x1950mm |
The range of available equipment allows the machine to be prepared for different milling and drilling technologies and increases the functionality of the workstation. It includes components related to position measurement, tool holding, horizontal spindle operation, cooling and illumination of the working area.
The selection of additional equipment allows the milling machine to be configured for a specific technological process. Vices, rotary tables, dividing heads, milling and tapping heads, and various tool-holding systems allow the range of work carried out at a single workstation to be extended.
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
UWF 110B is a solution for users looking for a solid and functional metal milling machine with a large table, wide spindle speed range and the possibility of expansion with specialist tooling. The machine parameters allow it to be used both as a primary machine tool in a workshop and as part of a professional machine park.
Contact a CORMAK advisor to select the UWF 110B milling machine configuration, additional equipment and tooling suitable for the planned technological processes.
