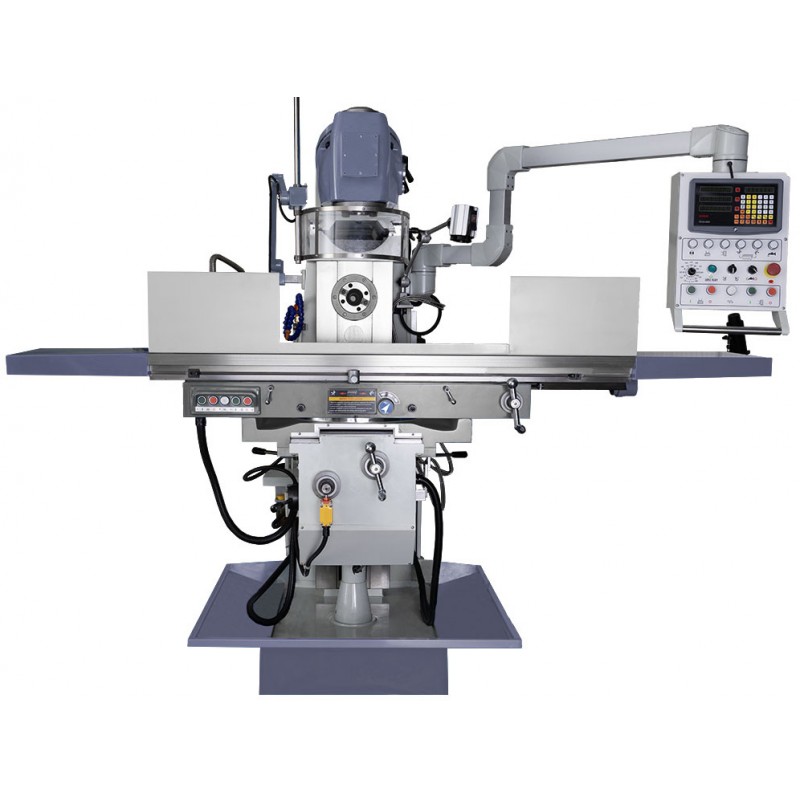

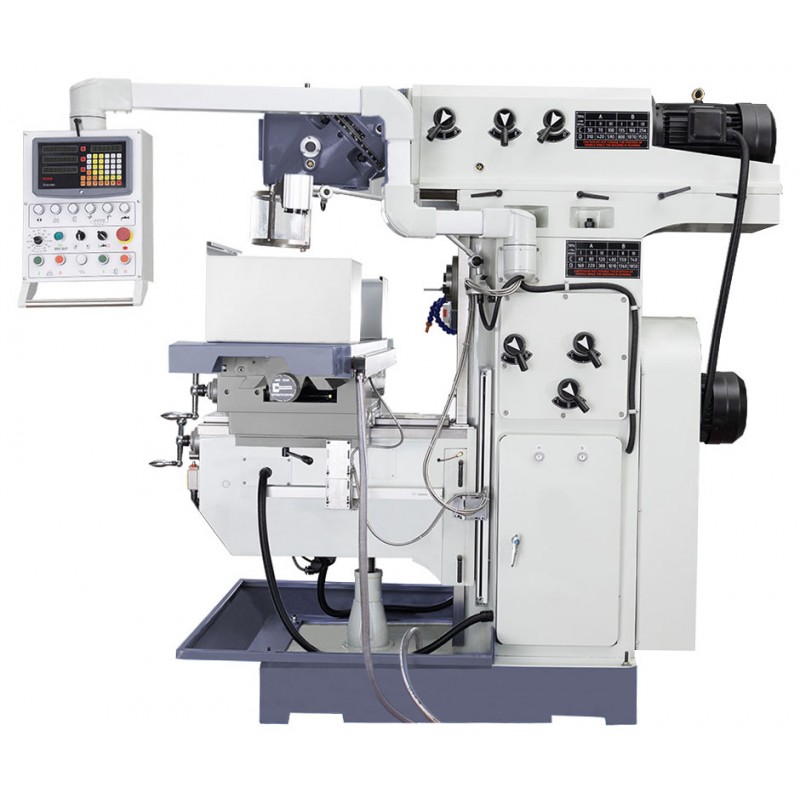

FU1800 Knee-Type Milling Machine is a robust machine with a solid construction. Servo motors and ball screws on all axes provide high precision and efficiency. Additional features such as the universal swivel head, central lubrication and LED lamp make operation straightforward and convenient. It is a machine designed to handle even demanding tasks.
FU1800 Knee-Type Milling Machine is a professional metal milling machine designed for precision machining of large workpieces. The 1800x400mm worktable, servo feed drives on three axes and two spindles – vertical and horizontal – provide broad machining capabilities for one-off and small-batch production, toolrooms and maintenance departments.
The FU1800 combines the capabilities of industrial universal milling machines with an advanced feed system. Powerful servo motors enable stepless feed speed adjustment, allowing the operator to precisely match table movement parameters to the tool, material and type of operation being performed. A travel range of 1300/450/600mm on the X/Y/Z axes enables machining of large workpieces and multiple operations without the need for frequent reclamping.
An important design feature is the universal milling head swivelling in two planes. This solution enables the machining configuration to be changed and the head to be positioned at the required angle. Two spindles – vertical and horizontal – extend the machine's range of applications when milling flat surfaces, slots, angled surfaces and components requiring tool access from different directions.
The FU1800 construction is designed for professional use in machining facilities. X- and Y-axis feed is adjustable within the range of 25~800mm/min, while the Z-axis feed range is 8~267mm/min. The feed servo drive torque is 12N.m. This configuration allows the working movement to be adapted to rough and precision machining.
The vertical spindle operates at 50-1520rpm, while the horizontal spindle operates at 60-1850rpm. Twelve speed steps for each spindle enable the cutting conditions to be selected according to the tool diameter and workpiece material. The ISO50 taper enables the use of tooling designed for demanding milling operations.
The high machine weight and extensive knee-type construction provide stable operating conditions during milling. Three T-slots in the table enable vices, fixtures and components to be mounted directly on the table. The 700mm upper arm travel and the 200-850mm distance from the vertical spindle to the table make it easier to adapt the working space to different workpiece heights and tool configurations.
The FU1800 Knee-Type Milling Machine is designed for production facilities, toolrooms, repair workshops, maintenance departments and companies performing one-off and series metal machining. It is suitable for milling flat surfaces, slots and angled surfaces, as well as operations requiring the use of a vertical or horizontal spindle. For companies looking for an efficient and versatile universal metal milling machine, the FU1800 provides a wide adjustment range and a large working area.
| Table dimensions | 1800x400mm |
| Table travels (X/Y/Z) | 1300/450/600mm |
| X-axis feed speed | 25~800mm/min |
| Y-axis feed speed | 25~800mm/min |
| Z-axis feed speed | 8~267mm/min |
| Spindle taper | 7:24 IS050 (H) 7:24 IS050 (V) |
| Upper arm travel | 700mm |
| Distance from vertical spindle to table | 200-850mm |
| Distance from horizontal spindle axis to arm surface | 200mm |
| Spindle speed range | 50-1520 (Vertical) rpm 60-1850 (Horizontal) rpm |
| Number of spindle speed steps | 12/12 |
| T-slots (number/width/spacing) | 3/18/100mm |
| Spindle motor power | <strong class="cor |
