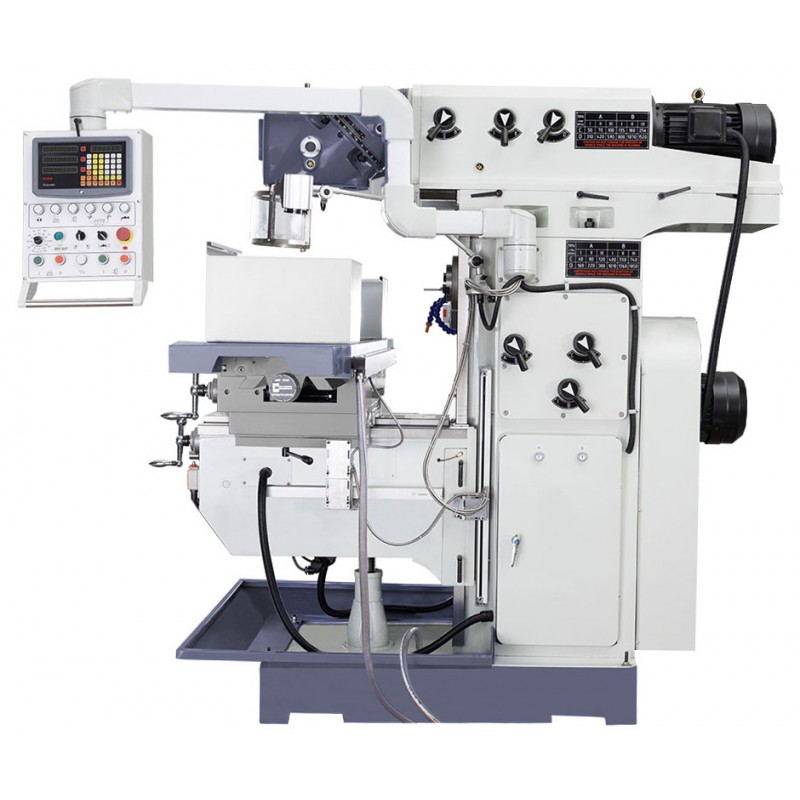

Conventional Universal Knee-Type Milling Machine CORMAK FU1700

FU1700 Knee-Type Milling Machine is an industrial metal milling machine designed for precision machining of workpieces requiring a large travel range, stable table guidance and flexible head positioning. The design with three-axis servo drives, an 1800x400mm table and two spindles enables a wide range of milling operations in one-off, small-batch and workshop production.

FU1700 knee-type milling machine – precise feeds, large working area and universal head

The FU1700 has been designed for professional machining facilities that require both suitable machine rigidity and a wide range of technological settings. Axis servo motors enable stepless feed adjustment on the X, Y and Z axes, allowing the operator to accurately match the working movement to the material, tool and type of operation.

Table travels of 1300/450/600mm on the X/Y/Z axes enable machining of workpieces with substantial dimensions. The large worktable and T-slots allow stable clamping of workpieces, vices and additional tooling. These parameters enable the FU1700 to serve as a universal machine tool in facilities using universal milling machines for a variety of production tasks.

Main advantages of the machine

• X, Y and Z axis servo drives providing smooth feed adjustment.
• 1800x400mm table enabling the clamping of large workpieces and tooling.
• 1300/450/600mm travels increasing the machining range.
• Two spindles – vertical and horizontal enabling the machining method to be adapted to the workpiece geometry.
• Universal head swivelling in two planes enabling machining at various angles.
• Y-axis telescopic covers limiting the ingress of chips and contamination into feed system components.
• 3,580kg weight supporting machine stability during cutting.

Construction and technology of the FU1700 metal milling machine

The universal milling head can be swivelled in two planes. Combining both adjustment ranges makes it possible to position the tool at the appropriate angle relative to the machined surface and to switch efficiently between vertical and horizontal configurations. This solution extends the range of possible operations without the need for a separate machine tool.

The vertical spindle operates within the range of 50-1520rpm, while the horizontal spindle operates within the range of 60-1850rpm. Twelve speed steps for each spindle enable the rotational speed to be selected according to the tool diameter and process requirements. The ISO50 tapers are suitable for use with tooling employed on professional metal milling machines.

Machining precision and efficiency

Feed on the X and Y axes can be adjusted within the range of 25~800mm/min, while the Z-axis feed range is 8~267mm/min. Servo drive torque is 12N.m. These parameters allow the working speed to be set appropriately for both rough machining and more precise finishing operations.

The 700mm upper arm travel and the 200-850mm distance from the vertical spindle to the table allow the working space to be adapted to the height of the workpiece, tool length and tooling used.

Applications of the FU1700 knee-type milling machine

The FU1700 Knee-Type Milling Machine is designed for production facilities, toolrooms, repair workshops, maintenance departments and companies performing one-off and small-batch machining. It can be used for milling flat surfaces, slots, angled surfaces and components requiring operation with a vertical or horizontal spindle. It is a solution for companies that expect a universal metal milling machine to provide a large working area and a wide range of parameter adjustment.

Machine characteristics

• Powerful axis servo motors enable stepless feed adjustment on all three axes, providing precise machining.
• Telescopic covers on the Y axis protect the feed spindle against contamination and damage.
• The universal milling head, swivelling in two planes, enables easy switching of the machining mode from horizontal to vertical.
• The combination of both swivel planes enables the head to be positioned at almost any angle, increasing machining flexibility.

Technical specifications

Equipment depending on version

The available equipment configuration allows the FU1700 to be adapted to the specific requirements of the machining process, tool clamping method and operator requirements. Components such as the digital readout, coolant system or central lubrication increase the functionality of the workstation and facilitate work organisation.

• DRO digital readout
• Lighting
• Coolant system
• Central lubrication system
• Two vertical and horizontal spindles
• Table feed for the X, Y and Z axes
• ISO50/ER arbor, collets 4-16mm
• ISO50/MK4 arbor
• Horizontal spindle support
• 2 long arbors for the horizontal spindle
• Set of operating tools
• EC Declaration of Conformity
• User manual
• Brand-new machine under warranty

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

FU1700 as a universal milling machine for professional metalworking

The combination of a large working area, servo-controlled feeds, two spindles and a swivelling head enables the FU1700 to handle a wide range of processes at a single workstation. The machine is intended for users who expect industrial metal milling machines to provide flexible adjustment, stable construction and the ability to work with large workpieces.

Contact a CORMAK advisor to select the FU1700 version and equipment suitable for the materials being machined, workpiece geometry and planned machining operations.
