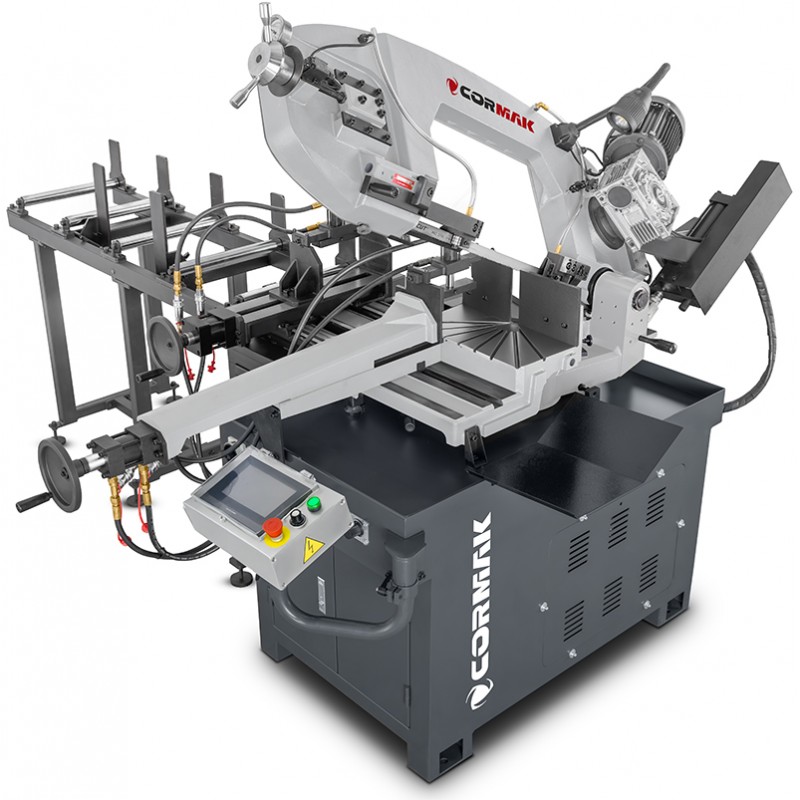

The CORMAK BS370SA model is a modern automatic metal bandsaw designed for efficient serial cutting of tubes, profiles and solid materials of various geometries. Its robust design, full automation of operations and high cutting precision make it ideal for production plants, tool workshops and metalworking companies that require reliability and repeatability.
The CORMAK BS370SA model is a modern automatic metal bandsaw designed for efficient serial cutting of tubes, profiles and solid materials of different geometries. Its sturdy design, full process automation and high cutting accuracy make the machine perfectly suited for production facilities, tool shops and metalworking companies where precision and reliability are essential.

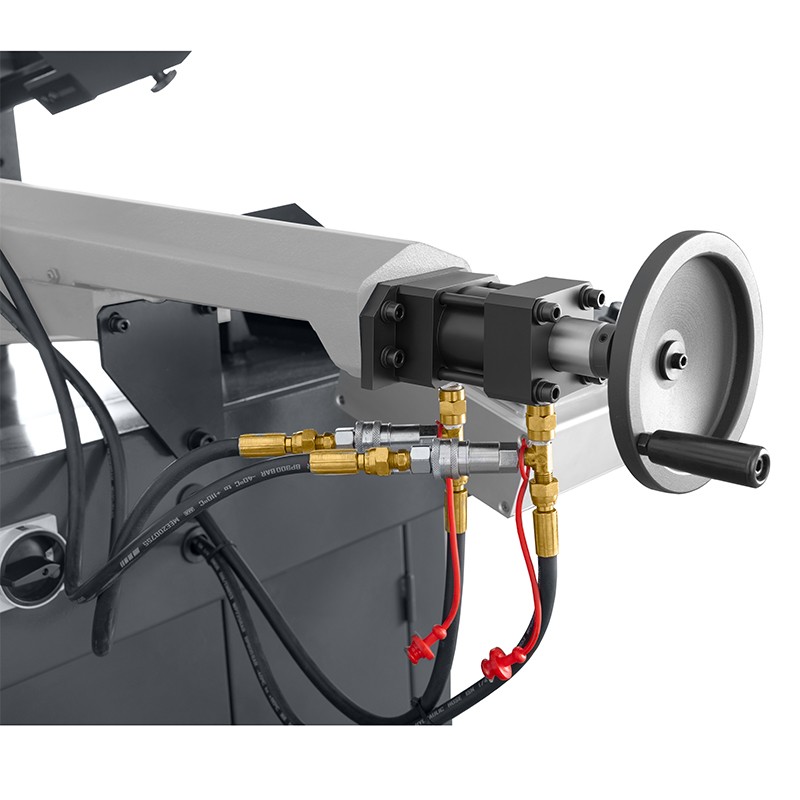

The CORMAK BS370SA bandsaw is built on a rigid welded frame providing work stability and vibration reduction. The hydraulic feed and clamping system, precise blade guides, and stepless speed control guarantee high cutting quality and operational safety. The machine is equipped with a roller conveyor facilitating automatic material feeding.
Thanks to high-quality components and advanced technical solutions, the CORMAK BS370SA bandsaw offers repeatable and accurate cuts. The ability to adjust cutting speed and hydraulic blade pressure ensures long tool life and full control over the cutting process.
This machine is recommended for production plants involved in serial manufacturing and machining of steel, aluminium and non-ferrous metal components. It is particularly suitable as a bandsaw for pipes, profiles and solid sections in the steel construction, prefabrication and precision production industries.
| Main motor power | 1.5 kW (400 V) |
| Hydraulic motor power | 0.75 kW (400 V) |
| Blade dimensions | 3160 × 27 × 0.9 mm |
| Cutting speed (stepless) | 5–90 m/min |
| Saw frame rotation angle | up to 60° |
| Workpiece capacity at 90° | ● 270 mm, ■ 260 mm, ▅ 370 × 220 mm |
| Workpiece capacity at 45° | ● 240 mm, ■ 180 × 180 mm, ▅ 240 × 160 mm |
| Workpiece capacity at 60° | ● 160 mm, ■ 100 × 100 mm |
| Machine length | 3970 mm |
| Machine width | 1850 mm |
| Machine height | 1763 mm |
| Net weight | 770 kg |
| Gross weight | 925 kg |
| Additional roller conveyor | Length 2450 mm |
▶
