Automatic Double-Column Metal Bandsaw CORMAK H400SA

Automatic Bandsaw CORMAK H400SA – Precision Cutting of Large Workpieces

The CORMAK H400SA automatic bandsaw is a high-performance industrial machine designed for accurate and repeatable cutting of large steel parts, tubes and closed profiles. With its double-column structure and fully automated cutting cycle, it is ideally suited for production facilities, metal workshops and logistics centres dealing with large-scale material processing.

Main Advantages

• Automatic operation – full cutting cycle without operator intervention: clamping, feeding, cutting and arm return.
• Hydraulic feed and vice system – ensuring fast, safe and precise cutting.
• Arm and vice position memory – shortens cycle times and increases efficiency in serial production.
• Cooling system and powered blade cleaning brush – extend blade life and improve cutting quality.
• Large cutting capacity – materials up to Ø400 mm or 400 × 400 mm.

Construction and Technology

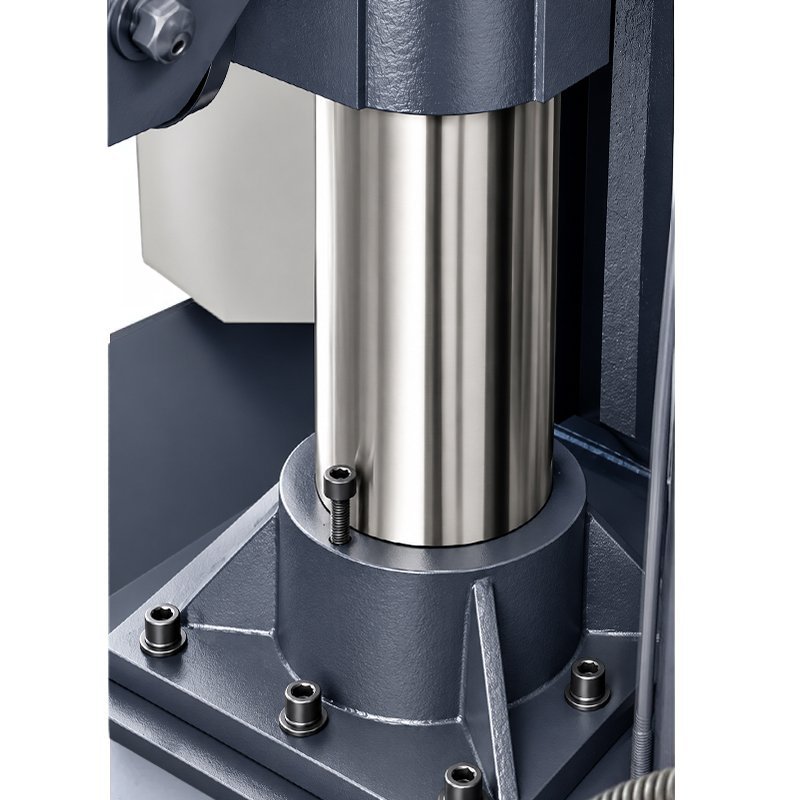

The double-column CORMAK H400SA bandsaw is built on a robust welded steel frame with a cast-iron body, ensuring maximum rigidity and vibration damping. The saw arm is set at a 3° angle relative to the work table, which facilitates cutting of profiles and hollow sections.

Precision and Productivity

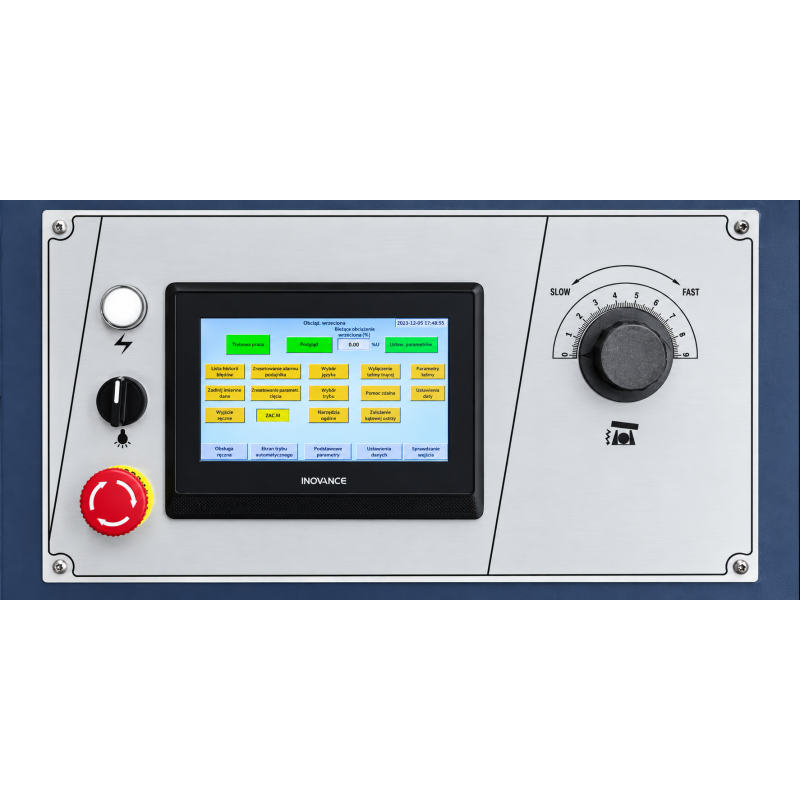

Hydraulically controlled arm feed with adjustable cutting pressure and precision throttle valve allows accurate adaptation to various materials. The hydraulic feeding system with electronic control enables programming of cutting length and quantity. The LCD display provides information about progress, errors, and material status. An automatic stop system halts operation in case of faults or programme completion, ensuring safe and efficient performance.

Applications

The CORMAK H400SA model is ideal for:

• Metalworking and steel construction industries
• Profile and section processing centres
• Serial production in workshops and industrial plants
• Logistics companies cutting materials to size

Standard Equipment

• Automatic working cycle
• Arm and vice position memory
• Hydraulic unit and feed system
• Powered blade cleaning brush
• Coolant circulation system
• Bimetal bandsaw blade for metal
• CE Declaration of Conformity
• Technical and Operation Manual (DTR)

Technical Data

Choose proven performance – the CORMAK H400SA automatic bandsaw delivers precision, durability and efficiency. Contact our technical advisor or place your order online today!
