The CORMAK C33 automatic bandsaw is an advanced industrial-grade machine designed for precise and efficient metal cutting in both automatic and manual modes. Its double-column design ensures stability, while thoughtful construction and automation features provide accuracy, repeatability and reduced production downtime.
The CORMAK C33 automatic bandsaw is a technologically advanced industrial machine designed for precise and efficient metal cutting in both automatic and manual operation. The double-column structure ensures stability, and its robust design combined with automation functions delivers repeatability, precision and reduced production downtime.

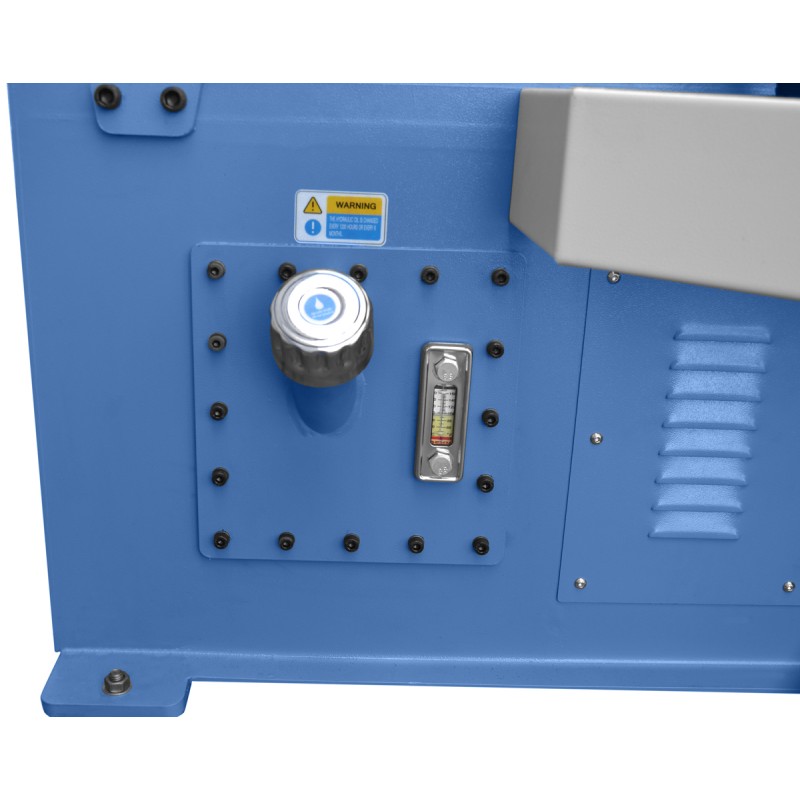

The body of the CORMAK C33 automatic bandsaw is made of a cast-iron frame mounted on a rigid spatial base. The 3° inclined saw frame allows for more efficient cutting of tubes and profiles. The hydraulic blade tensioning system ensures optimal cutting conditions, while precision guides with bearings and carbide inserts guarantee top cutting quality.

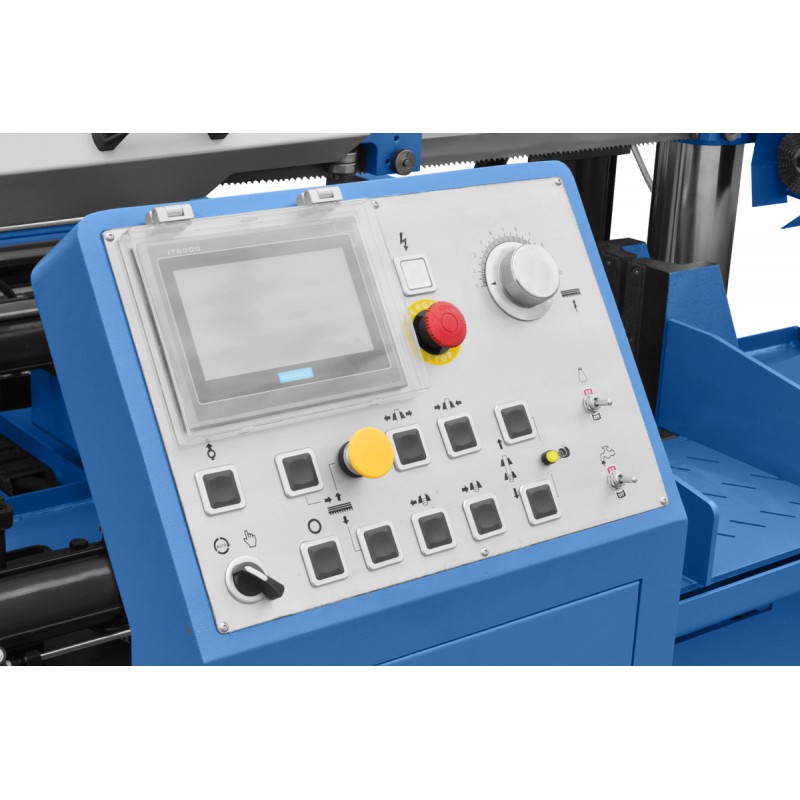

The quick feed system, adjustable arm descent, and advanced control system enable fast and repeatable cutting even in large production series. The cooling system and powered blade cleaning brush effectively extend the lifespan of the cutting tool.
The C33 model is a versatile metal bandsaw designed for serial production and steel structure workshops. It is ideal as a bandsaw for pipes and profiles, solid materials, and serial cutting in automated operation.
| Type | automatic double-column |
| Arm lifting and lowering | hydraulic with stepless adjustment |
| Blade speed | 25 / 40 / 58 / 80 m/min |
| Feed and fixed vice | hydraulic |
| Minimum cutting diameter | 5 mm |
| Minimum material length in vice | 30 mm |
| Vice base height | 780 mm |
| Blade size | 34 × 1.1 × 4115 mm |
| Total power | 6 kW |
| Hydraulic unit power | 1.5 kW |
| Coolant pump power | 0.75 kW |
| Machine dimensions (L × W × H) | 2300 × 2400 × 1650 mm |
| Weight | 1900 kg |
Choose professionalism and reliability. Opt for the CORMAK C33 automatic bandsaw and optimise your company’s cutting processes!
