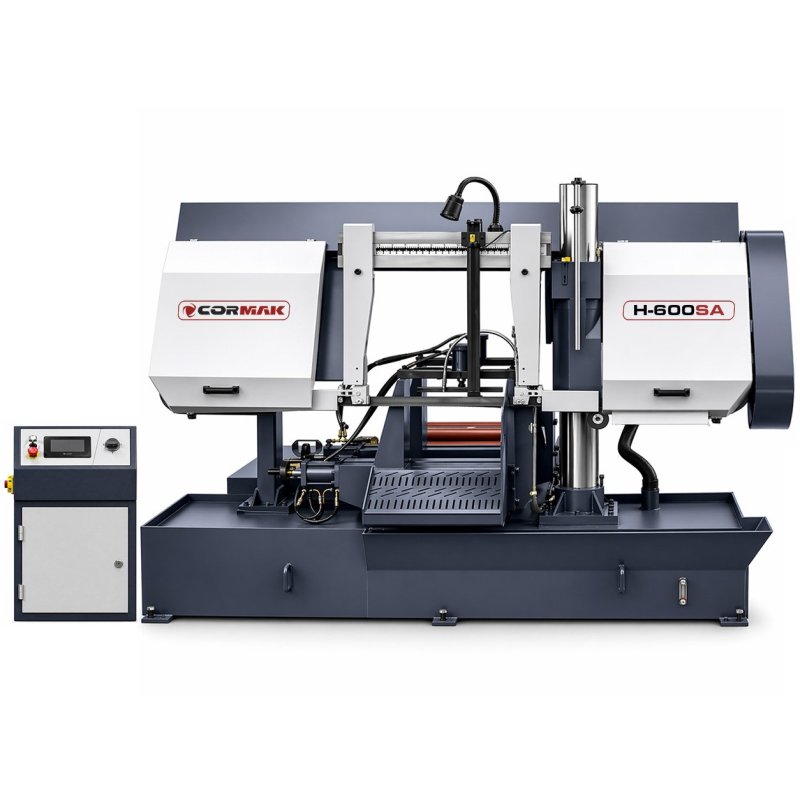

CORMAK H600SA automatic metal cutting band saw is designed for industrial cutting of large solid metal sections, bundles of profiles and thick-walled tubes. Its maximum cutting capacity of 600 × 600mm meets the needs of facilities preparing workpieces for further machining. PLC control and automatic material feeding with a maximum single feed stroke of 500mm support repeatable cutting cycles and reduce manual operations. Three blade speeds allow cutting conditions to be adjusted to suit the material.
CORMAK H600SA automatic metal cutting band saw is designed for industrial cutting of large solid metal sections, bundles of profiles and thick-walled tubes. In metalworking facilities, cutting often precedes turning, milling or other operations requiring stock cut to specified lengths. A properly selected band saw improves the organisation of material preparation and the transfer of workpieces between production workstations.
The H600SA combines a cutting capacity of 600 × 600mm, a 5.5kW blade drive, PLC control and automatic material feeding. This combination of specifications meets the needs of companies where preparing large-section materials is a regular part of the production process.
The maximum cutting capacity is 600 × 600mm. This parameter is essential when selecting a band saw to match the dimensions of the material being prepared. For materials with non-standard geometry, their shape and positioning within the cutting area must also be considered.
In addition to solid stock, the metal cutting band saw is suitable for cutting bundles of profiles and thick-walled tubes. Where the cutting process permits bundle cutting, properly arranged components can be cut together in a single operation. This is important when preparing batches of cut lengths for subsequent production stages.
Correct bundle cutting requires proper arrangement and secure clamping of the individual components. The method of preparing the bundle should take into account its geometry, dimensions and material characteristics.

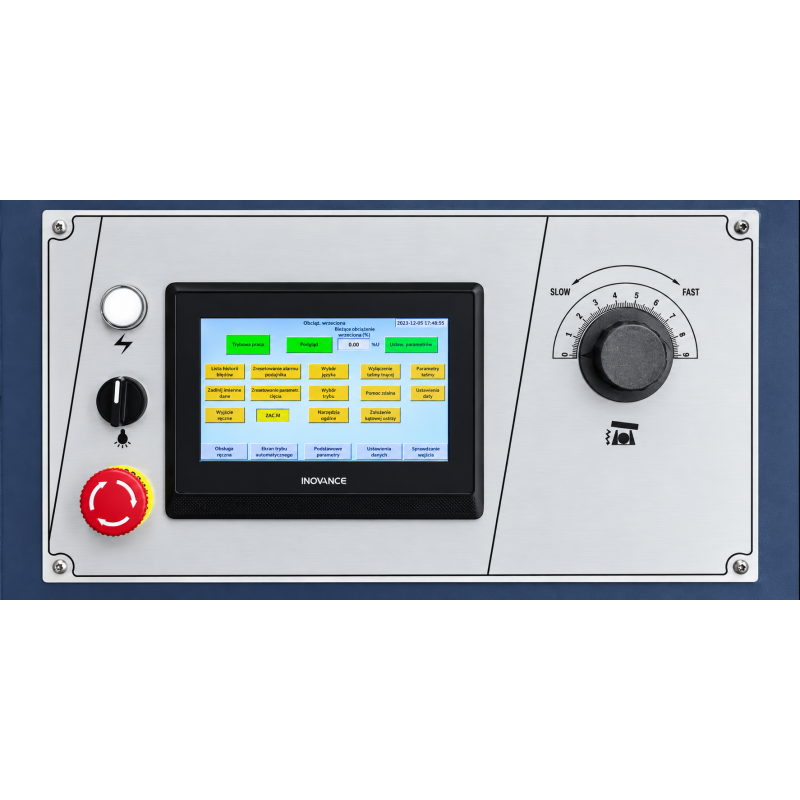

The PLC controller manages the automatic cutting cycle. Combined with the material feeding mechanism, it supports repeatable cutting operations while reducing the need to move the stock manually.
For facilities performing series metal cutting, this means easier workstation organisation and allows the operator to focus on material preparation and process supervision.
The maximum single material feed stroke is 500mm. This value specifies the maximum stated distance of a single material feeding movement, not the maximum length of the workpiece being cut.
This parameter is important when planning repetitive cutting operations, as it defines the range of a single movement of the feeding mechanism. It helps assess whether the feeding system is suitable for the required workpiece lengths and the organisation of subsequent production operations.

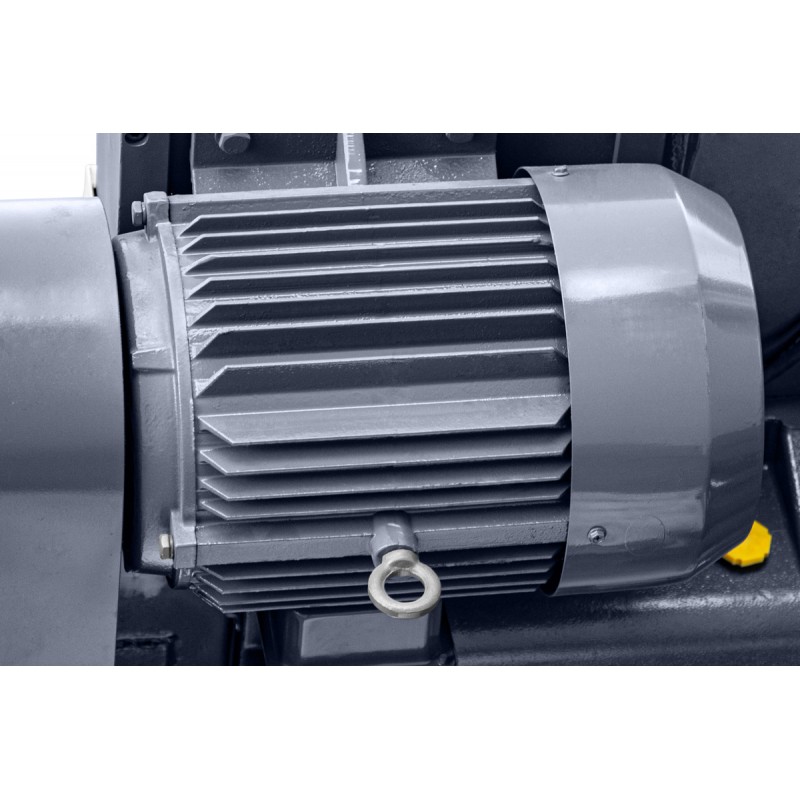

The main motor, rated at 5.5kW, drives the band saw blade. Selecting the appropriate cutting conditions requires consideration of the drive power, material cross-section, material properties and type of cutting blade used.
The band saw offers three blade speeds: 27, 45 and 69m/min. Selecting one of these speeds allows the cutting speed to be matched to the characteristics of the material and the recommendations for the fitted blade. This is particularly important in facilities preparing stock for different production operations.
The band saw blade dimensions are 6,620 × 54 × 1.6mm. When selecting a blade, its type and tooth pitch are just as important as its dimensions. Matching the tooth configuration to the material cross-section and properties affects cutting edge operating conditions and chip evacuation from the cutting zone.
The band saw is equipped with a hydraulic power unit with a 1.5kW motor and a coolant pump rated at 0.125kW. These specifications describe separate systems, independent of the main motor driving the band saw blade.
When cutting large solid sections, the longer contact area between the blade teeth and the material increases the demands on cooling and chip removal. The cutting fluid helps dissipate heat generated in the cutting zone.
Proper cooling conditions, combined with the correct blade speed and tooth selection, are important elements of a well-prepared metal cutting process.
The CORMAK H600SA industrial metal cutting band saw is suitable for companies where preparing workpieces is a regular stage of production.
In facilities producing turned and milled components, it is used to prepare cut lengths for subsequent machining. In companies manufacturing metal structures, it can be used to cut stock intended for further production operations.
When selecting a band saw for series production, it is worth comparing typical material cross-sections, required cut lengths and batch sizes with the available cutting capacity and feeding parameters. This approach makes it easier to select equipment that meets the facility's actual requirements rather than basing the purchasing decision solely on motor power.
| Name | CORMAK H600SA |
| Type | Automatic metal cutting band saw |
| Maximum cutting capacity | 600 × 600mm |
| Blade speeds | 27 / 45 / 69m/min |
| Band saw blade dimensions | 6,620 × 54 × 1.6mm |
| Main motor power | 5.5kW |
| Hydraulic power unit motor power | 1.5kW |
| Coolant pump power | 0.125kW |
| Maximum single material feed stroke | 500mm |
| Control system | PLC |
| Primary application | Cutting solid metal stock |
| Additional application | Cutting bundles of profiles and thick-walled tubes |
CORMAK H600SA is an automatic metal cutting band saw designed primarily for industrial cutting of large-section materials. The automatic operating cycle and PLC control improve the efficiency of series cutting to specified lengths, supporting production productivity and repeatability.
