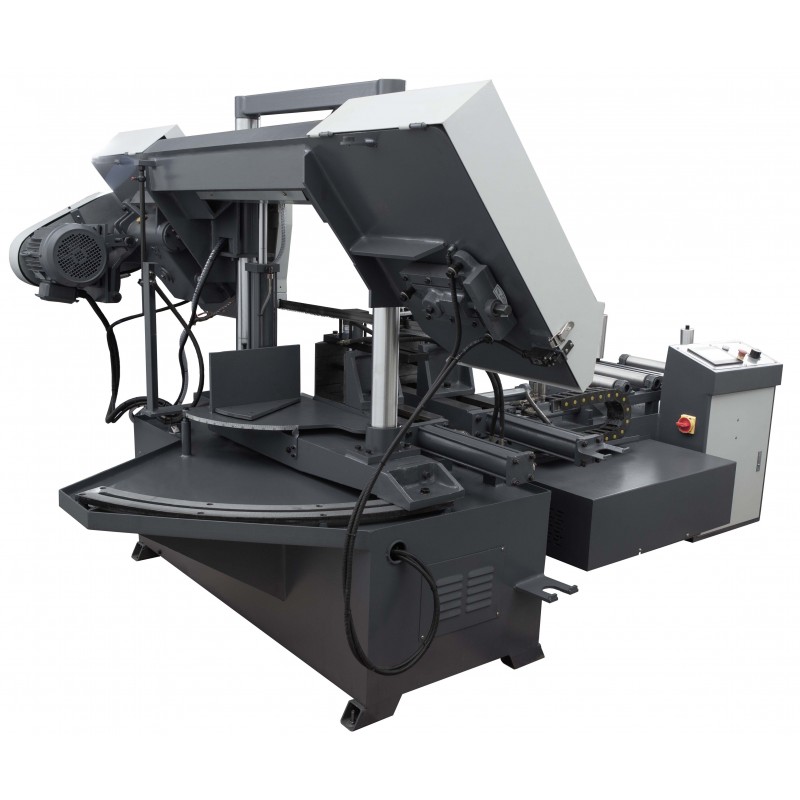

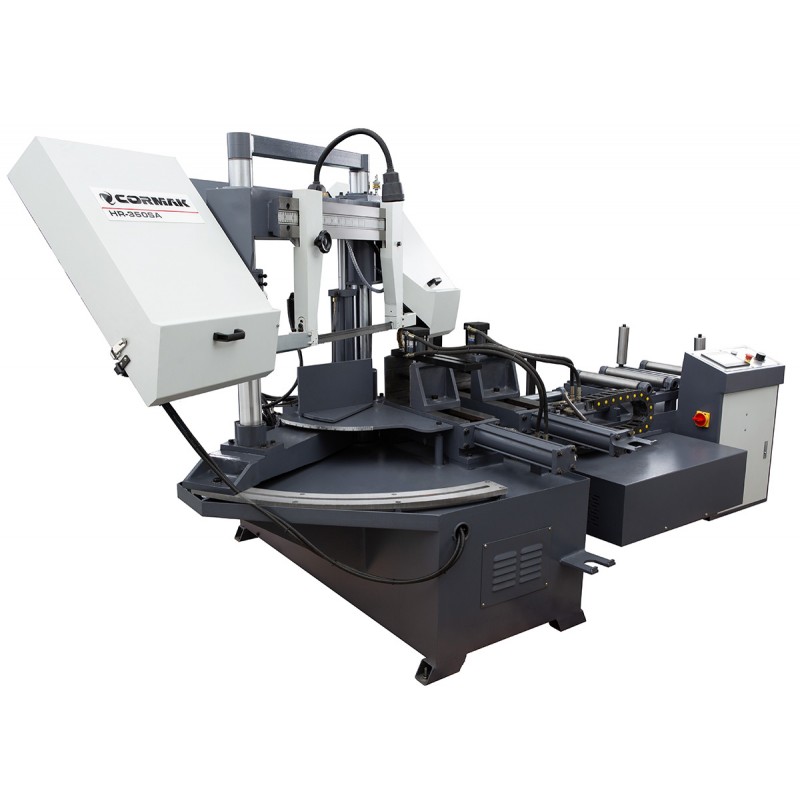

Automatic Double-Column Metal Bandsaw CORMAK HR500SA

Automatic Bandsaw CORMAK HR500SA – high cutting efficiency for profiles and bundles

CORMAK HR500SA is an advanced automatic bandsaw designed for cutting solid materials, tubes, and steel profiles with large cross-sections. The double-column construction and reinforced frame ensure maximum stability, precision, and repeatability of cutting – even during continuous operation.

The machine stands out for its solid, rigid design, smooth parameter adjustment, and the ability to programme a full cutting cycle. It is a reliable tool for industrial plants where efficiency, automation, and cutting quality are key factors.

Main advantages of the machine

• Fully automated process – clamping, feeding, cutting, and arm return are performed without operator intervention.
• Double-column bandsaw – guarantees precise blade guidance when cutting large cross-sections.

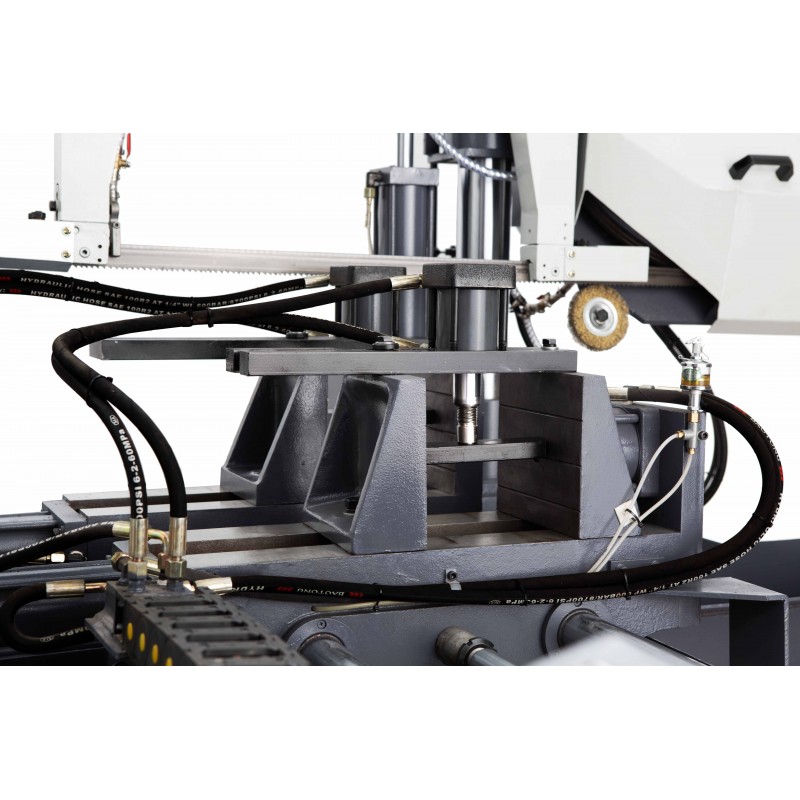

• Bundle cutting capability – the vice features an upper clamping system for stabilising bundled material.
• Three-speed blade control – 27/45/69 m/min – allows optimal parameters for different material grades.

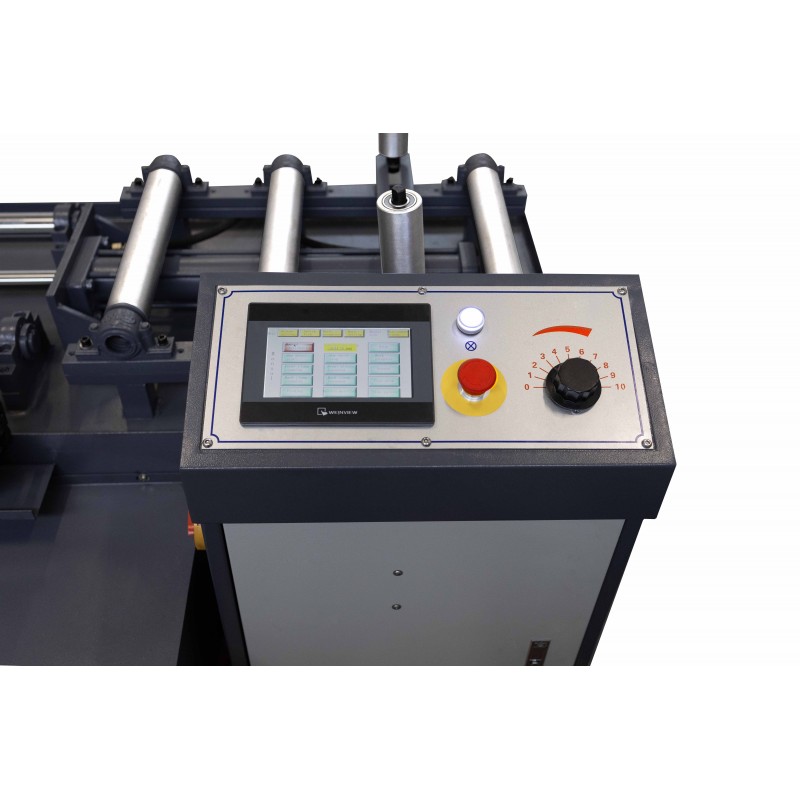

• Intuitive touchscreen panel – simplifies programming of length, quantity, and cutting cycles.
• Hydraulic material feeding system – feed accuracy up to ±0.2 mm.
• Cooling and cleaning system – increases blade durability and improves surface finish quality.

Construction and technology

The HR500SA metal bandsaw is built on a stable cast-iron body mounted within a steel frame structure. Inside are the coolant tank, hydraulic unit, and chip conveyor. The rigid frame design minimises vibrations during operation, directly improving cutting precision.

This metal bandsaw with a 6.5 kW motor and manual tensioning system works with blades measuring 6600 x 41 x 1.3 mm. The table height is 715 mm, and the maximum machine load capacity is as much as 3,000 kg.

Precision and work efficiency

The machine offers high repeatable accuracy and industrial-grade efficiency thanks to guides with carbide inserts and stepless arm lowering adjustment. The cutting drive with gearbox and hydraulic control increase system lifespan and reliability.

Application

The HR500SA model is recommended for production plants, machining centres, and industrial workshops where fast, serial cutting of steel, tubes, and profiles of large sections is required. It performs perfectly in structural, power, steel, and heavy engineering industries.

Standard equipment

• Touchscreen control panel with memory settings,
• Automatic work cycle,
• Upper bundle pressure clamp,
• Hydraulic material feeding system,
• Three-speed cutting gearbox,
• Cooling system and cleaning brush,
• Bimetal bandsaw blade,
• CE certification

Optional equipment

• Saw blades with various pitches and applications,
• Roller loading and receiving tables

Technical data:

Choose precision and reliability. Select the HR500SA – a professional metal bandsaw designed to meet the demands of heavy industry. Contact our advisor to receive an offer tailored to your production requirements.
