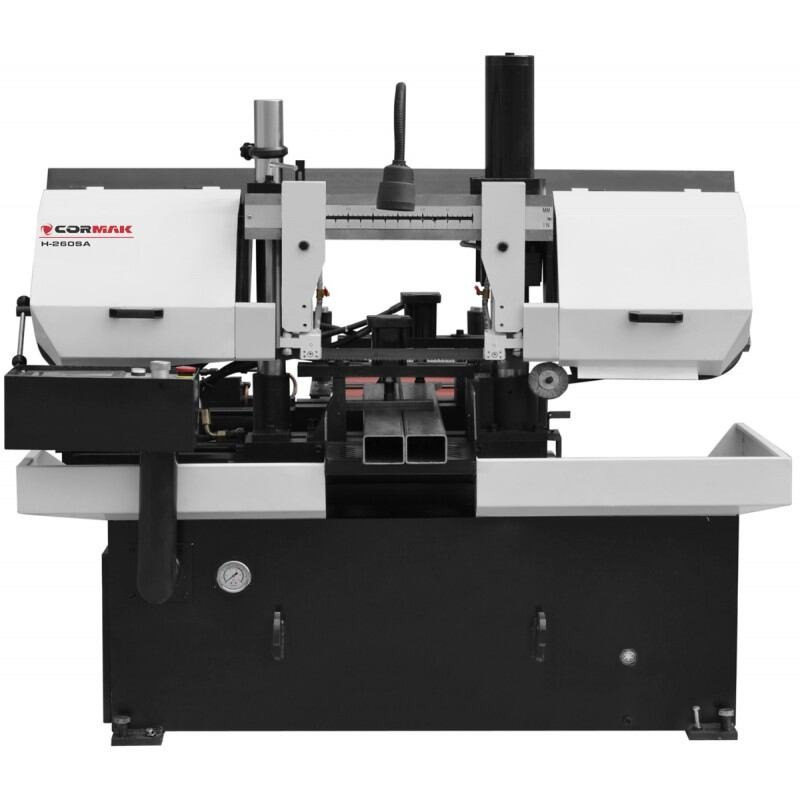

The CORMAK H260SA automatic bandsaw is a precision industrial machine designed for cutting metals with round, rectangular and hollow profiles. Its durable double-column design ensures high rigidity of the cutting system, guaranteeing long service life without loss of accuracy. The machine offers a full automatic cycle, ideal for both serial production and metal fabrication workshops.
The CORMAK H260SA automatic bandsaw is a precision industrial machine designed for cutting metals with round, rectangular and closed profiles. The robust double-column construction ensures exceptional rigidity of the cutting system, resulting in long-lasting performance without compromising accuracy. The machine operates in a fully automatic cycle, making it ideal for serial production, steel fabrication, and locksmith workshops.
The saw’s construction is based on a heavy-duty steel frame and a cast-iron body, ensuring excellent vibration resistance and long-term durability. The hydraulic lifting and lowering system of the saw arm provides smooth operation and full control of the cutting process. An integrated chip removal system and coolant circulation system significantly extend the lifespan of the saw blade.
The CORMAK H260SA automatic bandsaw features a fast-feed mechanism and an LCD electronic control panel. Cutting length and piece count can be easily programmed, while the ability to store cutting parameters guarantees production repeatability. The machine automatically stops after completing the preset series, if the blade breaks, or in case of an error, effectively reducing downtime and improving operational efficiency.
The H260SA model is ideal for companies involved in serial production of steel components, cutting structural tubes and profiles, steel beams, aluminium and non-ferrous metals. This metal bandsaw is perfect for industrial and specialist workshops where precision and cutting quality are key factors.
| Cutting range | Ø260 mm or 260 × 260 mm |
| Blade size | 3150 × 27 × 0.9 mm |
| Blade speed | 40 / 60 / 80 m/min |
| Total power | 3 kW |
| Hydraulic motor | 0.75 kW |
| Coolant pump | 0.09 kW |
| Feeder stroke | 500 mm |
| Load capacity | 1500 kg |
| Machine dimensions | 1600 × 1800 × 1550 mm |
| Weight | 1000 kg |
The CORMAK H260SA automatic bandsaw is an investment in precision, efficiency and reliability. Contact us to configure the machine to suit your production needs.
▶
