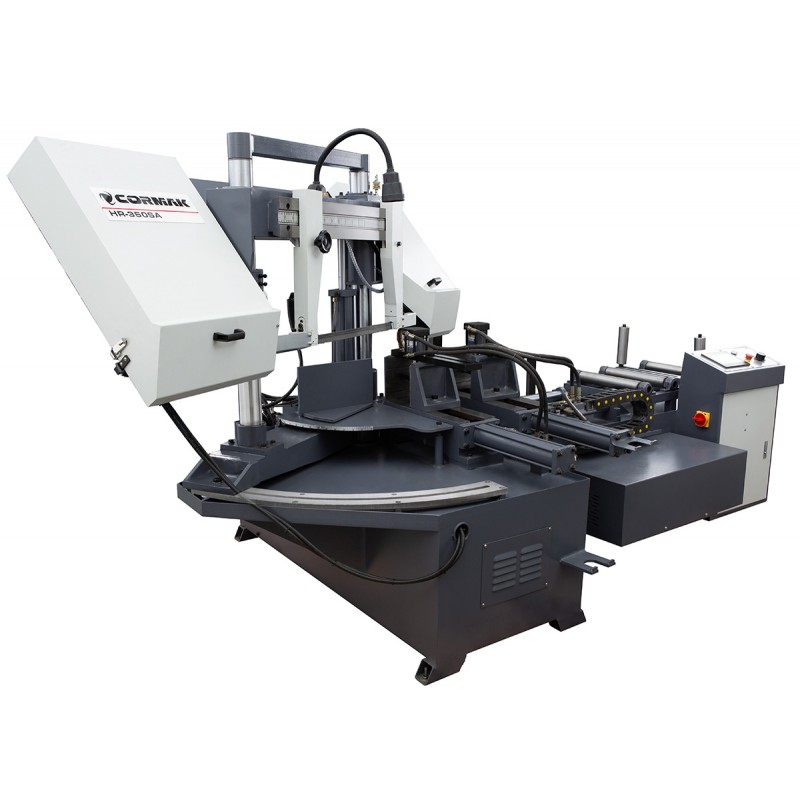

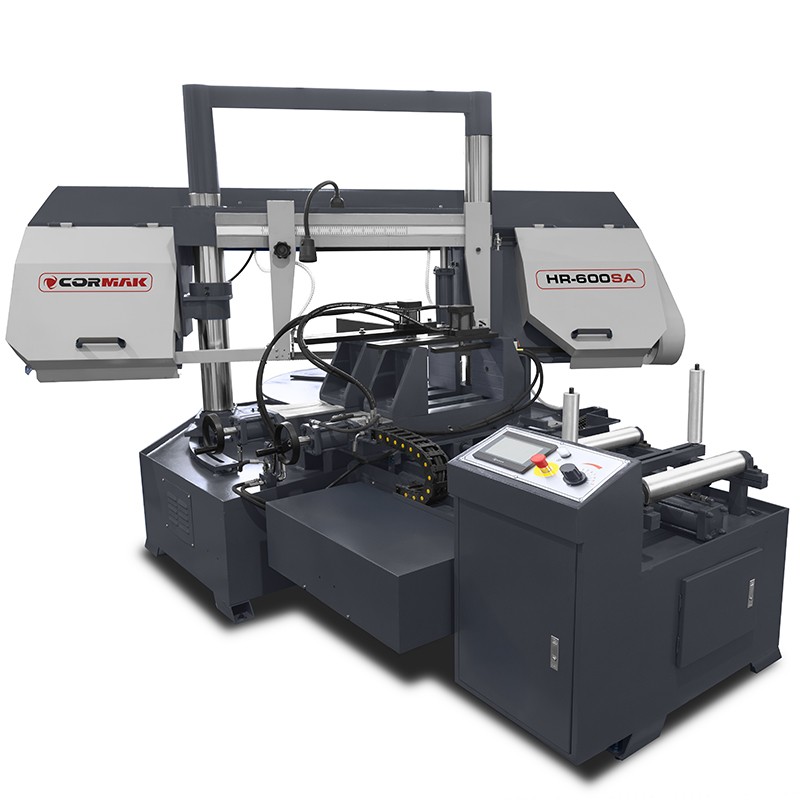

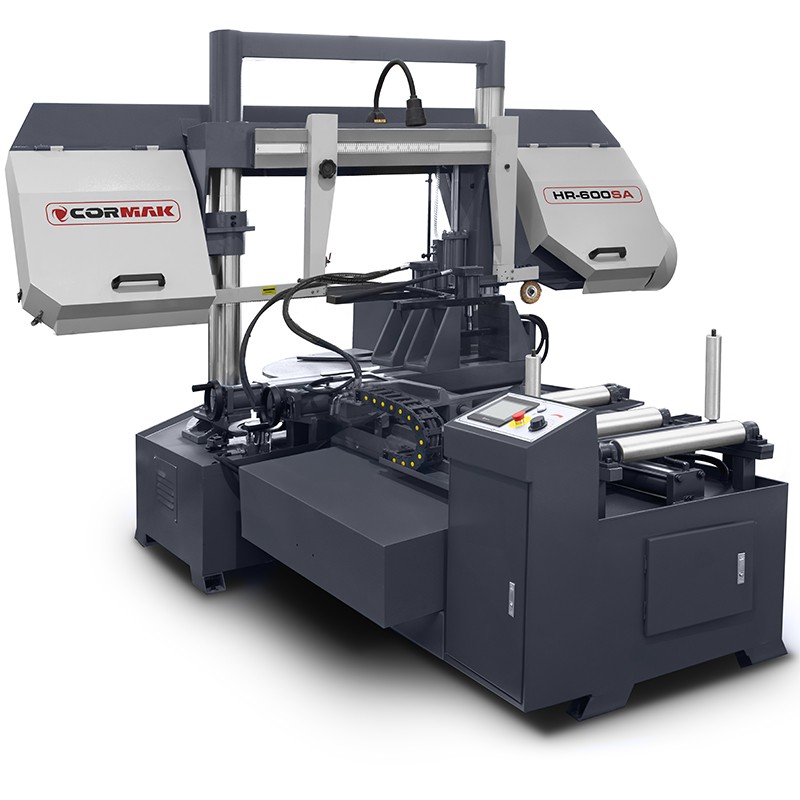

The column-type bandsaw CORMAK H-600SA is a high-performance machine designed for automatic-cycle cutting of solid materials and profiles. A solid cast-iron body and robust saw frame, combined with the column design, provide excellent rigidity and outstanding stability during cutting, even for the most difficult-to-machine metals. The saw is equipped with a PLC controller and an easy-to-use touchscreen panel. A key advantage of this model is the swivelling head, which allows cutting from 0° to 60° – in both automatic and semi-automatic cycles, with smooth angle adjustment.
Manual and Automatic Modes: The saw allows both manual operation from the control panel and a fully automatic cutting cycle, eliminating the need for constant operator supervision.
Upper Vise Pressure: Adapted for bundle cutting.
Automatic Cutting Cycle: In automatic mode, the entire cutting process – clamping, positioning, lowering the arm for cutting, and lifting it after completion – takes place without operator involvement.
Panel-Controlled Parameters: Cutting parameters such as number of pieces, workpiece length, and blade speed are set and monitored via the intuitive touchscreen control panel.
Robust Construction: The machine body is made of cast iron, mounted on a rigid, spatial frame structure that ensures excellent stiffness and stability.
Blade Drive: A powerful three-speed motor, hydraulic blade tensioning, coolant system, and cleaning brush provide precise and efficient cutting.
Safety System: In the event of a blade break, the machine stops automatically, improving operator safety.
Hydraulic Material Feeding System: Enables a fully automatic work cycle with precise material feed length adjustment.
Innovation and ISO Standards: Cormak ensures innovative solutions and production compliant with ISO 9001 and ISO 14001 standards, confirming high quality, safety, and reliability.
| Cutting range | Ø600 or 750 x 650 mm |
| Blade | 6600 x 41 x 1.3 mm |
| Cutting speeds | 27 / 45 / 69 m/min |
| Total power | 6.5 kW |
| Blade tensioning | manual |
| Feeder stroke | 500 mm |
| Table height | 715 mm |
| Dimensions | 3200 x 3050 x 2115 mm |
| Weight | 3,600 kg |
