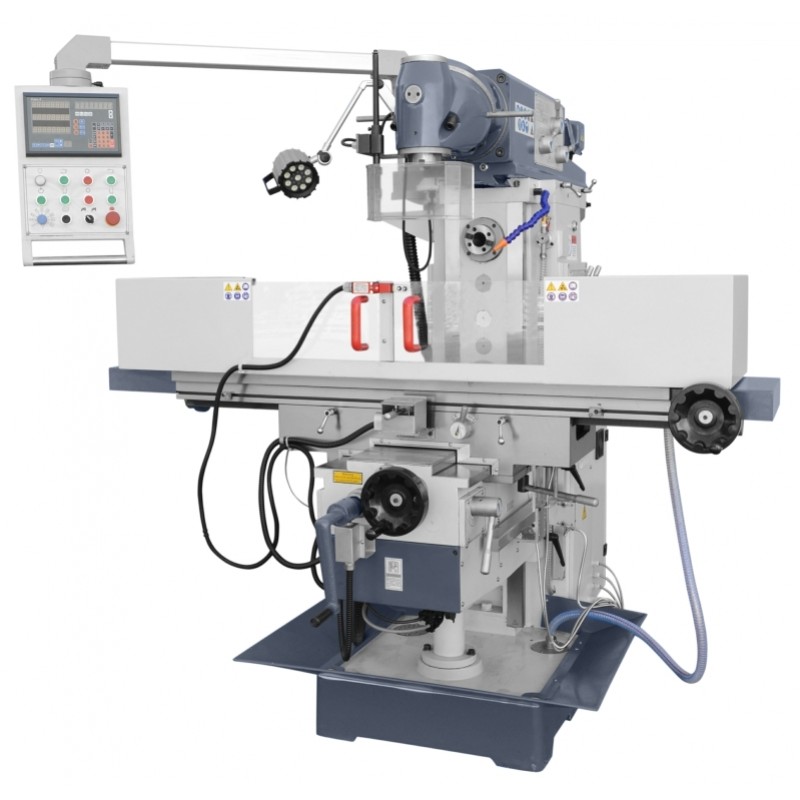

The UWF 130 SERVO milling machine combines servomotors for the X, Y and Z axes with an independent head drive, offering outstanding precision and flexibility in machining. Its solid, heavy-duty construction ensures stability even during demanding operations. Simultaneous movement of several axes and automatic lubrication make this milling machine a versatile solution for precision machining and a wide range of milling applications.
UWF 130 SERVO Universal Milling Machine is an industrial metal milling machine equipped with a servo feed drive, automatic table movement in three axes and spindles with an ISO 40 taper. The 1370x320mm worktable, 1000mm longitudinal travel and 360° swivelling head provide a wide range of applications in toolrooms, production facilities and maintenance departments.
The UWF 130 SERVO model has been designed for professional machining applications requiring structural stability and precise table guidance. The cast-iron body reduces the effect of vibrations during milling, while the 10Nm / 1.5kW feed servomotor supports controlled movement of the working assemblies.
Automatic feeds in the X, Y and Z axes and rapid traverses improve workpiece positioning. The feed range is (8) 30 - 830mm/min in the X and Y axes and (8) 23 - 625mm/min in the Z axis, allowing the travel speed to be selected according to the material being machined and the type of operation.
The UWF 130 SERVO industrial milling machine uses vertical and horizontal spindles with an ISO 40 taper. The horizontal spindle offers 12 speeds in the range of 35 - 1500rpm, while the vertical spindle provides 11 speeds from 45 to 1660rpm. Both spindles are driven by 4.0kW motors.
This configuration allows the operating setup to be matched to the type of tool, material and direction of the machining operation. The distance between the vertical spindle and the table is 30 - 430mm, while the distance between the spindle and the column is 305 - 805mm, increasing workpiece positioning possibilities.
The table tilts from -45° to +45°, while the milling head rotates through 360°, allowing machining at different angles without the need for additional solutions for each change of working plane. Three T-slots with a width of 14mm and spacing of 80mm allow stable mounting of vices and tooling.
The longitudinal table travel is 1000mm, the cross travel is 360mm, and the vertical travel is 400mm. Rapid feeds reach 1000mm/min in the X and Y axes and 750mm/min in the Z axis. These parameters improve changes in working position and reduce auxiliary movement time between successive milling operations.
The cooling system is equipped with a 90W pump providing a capacity of 25L/min. Supplying coolant to the cutting zone supports heat dissipation during machining and improves tool operating conditions.
The ISO 40 universal milling machine UWF 130 SERVO is intended for metalworking facilities, toolrooms, repair workshops, single-piece and small-batch production, and maintenance departments. It can be used for milling flat surfaces, slots, inclined surfaces and components requiring vertical or horizontal machining. It is a professional servo-driven milling machine for users requiring a large travel range and flexible workstation configuration.
| Technical parameters | |
|---|---|
| TABLE DIMENSIONS | 1370x320mm |
| T-SLOT SIZE | 3 / 14mm / 80mm |
| HORIZONTAL/VERTICAL SPINDLE TAPER | ISO 40 |
| HORIZONTAL SPINDLE SPEEDS | (12) 35 - 1500rpm |
| VERTICAL SPINDLE SPEEDS | (11) 45 - 1660rpm |
| SWIVELLING MILLING HEAD | 360° |
| LONGITUDINAL TRAVEL (X) | 1000mm |
| CROSS TRAVEL (Y) | 360mm |
| VERTICAL TRAVEL (Z) | 400mm |
| VERTICAL SPINDLE/TABLE DISTANCE | 30 - 430mm |
| SPINDLE/COLUMN DISTANCE | 305 - 805mm |
| TILTING TABLE | -45° to +45° |
| MAXIMUM TABLE LOAD | 300kg |
| LONGITUDINAL FEED RANGE | (8) 30 - 830mm/min |
| CROSS FEED RANGE | (8) 30 - 830mm/min |
| VERTICAL FEED RANGE | (8) 23 - 625mm/min |
| X-AXIS RAPID FEED | 1000mm/min |
| Y-AXIS RAPID FEED | 1000mm/min |
| Z-AXIS RAPID FEED | 750mm/min |
| HORIZONTAL SPINDLE MOTOR | 4.0kW |
| VERTICAL SPINDLE MOTOR | 4.0kW |
| SERVO MOTOR POWER (FEED) | 10Nm / 1.5kW |
| COOLANT PUMP POWER | 90W |
| COOLING SYSTEM CAPACITY | 25L/min |
| DIMENSIONS | 1880 x 1830 x 2050mm |
| WEIGHT | 2360kg |
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
The combination of ISO 40 spindles, servo drive, automatic feeds, tilting table and 360° head allows the UWF 130 SERVO to perform a wide range of operations at one workstation. Contact a CORMAK advisor to select the equipment version, holders and tooling for the workpieces to be machined and the planned manufacturing processes.
