Discover the performance and precision of the UWF 125 SERVO Milling Machine, a modern machine from the latest series of conventional solutions powered by advanced servo drives. The stable milling head with an adjustable angle of up to ±30° provides machining flexibility. Standard equipment includes a 3-axis digital readout, large chip tray and efficient cooling system. Choose this milling machine to improve the quality and efficiency of metalworking.

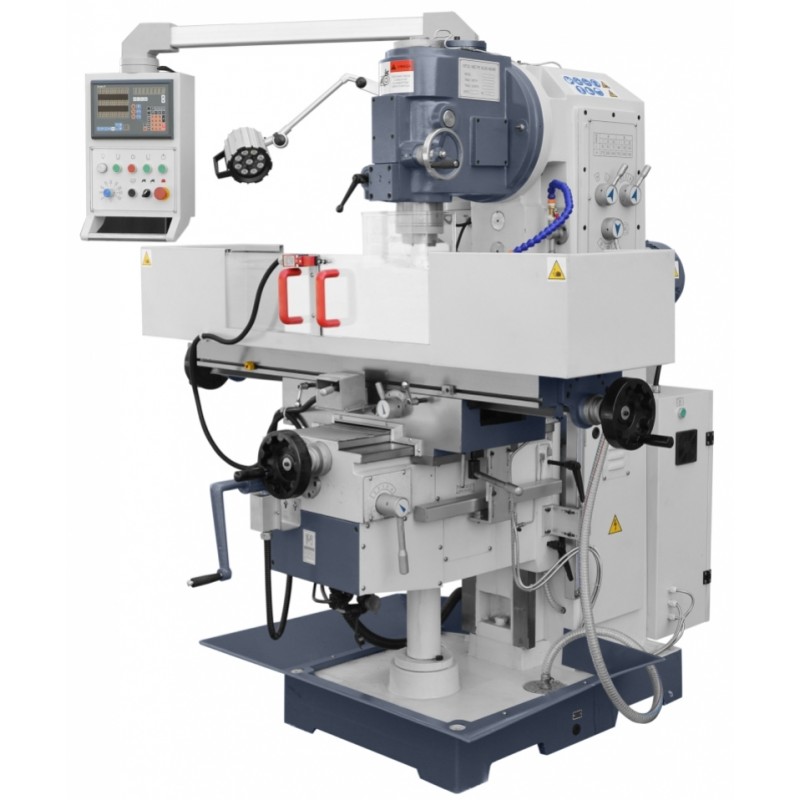

UWF 125 SERVO Universal Milling Machine is an industrial metal milling machine designed for a variety of milling operations in one-off and small-batch production, toolrooms and maintenance departments. The heavy Meehanite cast-iron construction, 1270x300mm table, ISO40 spindle and servo drive with 10Nm torque provide stable operating conditions and a wide range of machining applications.
The UWF 125 SERVO is a conventional universal milling machine designed for professional metalworking. The heavy base and body made of high-quality Meehanite cast iron provide stable support for the working assemblies. The machine weight of 1,500kg further reduces the structure's susceptibility to vibration during milling.
The cross table moves in three axes. Maximum table travel is 720/300/400 for the X/Y/Z axes, while rapid traverse reaches 1000/1000/750mm/min. The servo drive supports efficient table positioning and increases machine functionality during repeatable operations.
The ISO40 spindle taper allows the use of standard tooling used in professional metal milling machines. The 3kW main drive operates with a gearbox providing 12 speed ranges from 35 to 1500rpm, allowing the parameters to be adapted to the tool diameter, material and type of operation.

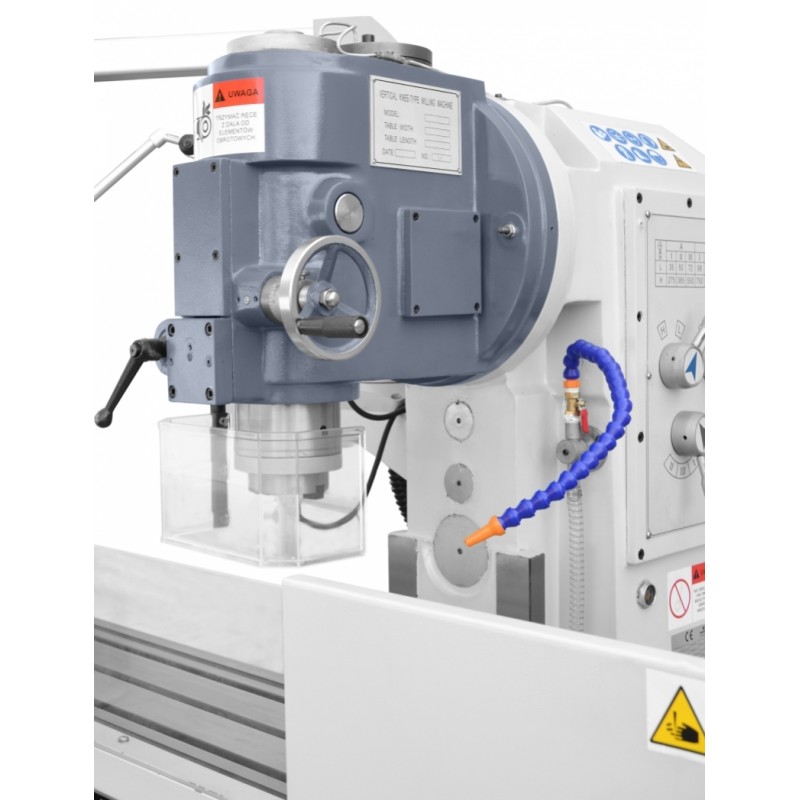

The spindle-to-table surface distance is 35-435mm, allowing the working area to be adapted to the workpiece height, holder used and tool length. The swivelling vertical head increases spindle positioning flexibility and expands the range of operations that can be performed at a single workstation.

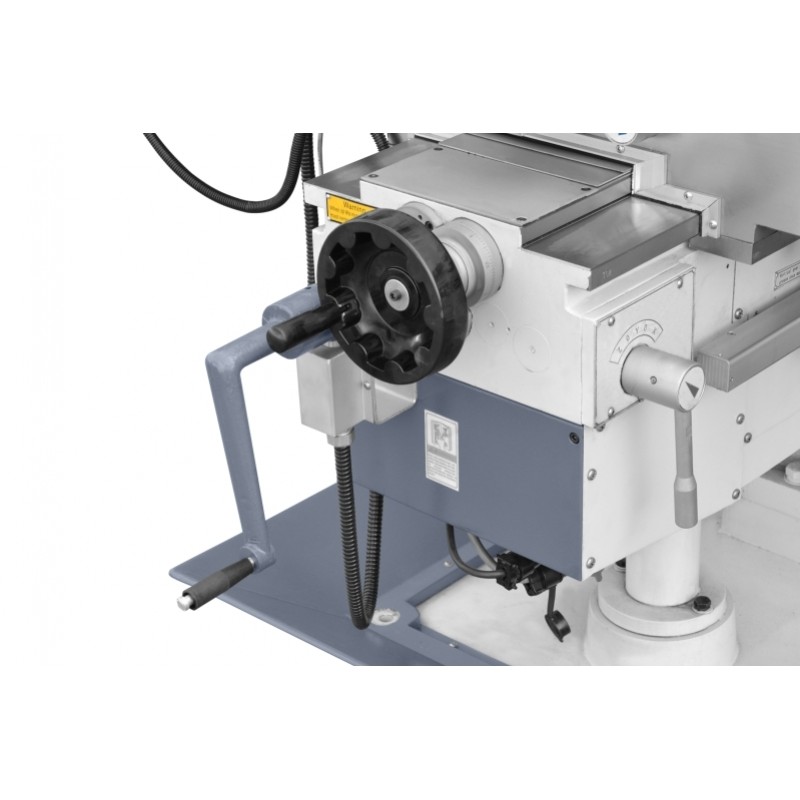

The solid cross table and SERVO feed drive enable working movements in all three axes. Rapid table traverse reduces the time required to change position between successive operations. The three-axis digital position readout makes it easier for the operator to monitor movement and the position of the workpiece relative to the tool.
The UWF 125 SERVO universal milling machine is designed for machining facilities, toolrooms, repair workshops, maintenance departments and one-off and small-batch production. It can be used for milling flat surfaces, slots, inclined surfaces and other operations requiring stable clamping and controlled table movement. The model is a solution for companies looking for a professional ISO40 industrial milling machine for universal applications.
| Technical parameters | |
|---|---|
| TABLE DIMENSIONS | 1270x300mm |
| MAX. TABLE TRAVEL (XYZ) | 720/300/400 |
| SPINDLE-TO-TABLE SURFACE DISTANCE | 35-435mm |
| SPINDLE TAPER | ISO40 |
| RAPID TABLE TRAVERSE | 1000/1000/750mm/min |
| TABLE FEED | variable |
| SPINDLE SPEED | (12) 35-1500rpm |
| MOTOR POWER | 3kW |
| SERVOMOTOR | 10Nm |
| DIMENSIONS | 1720x1680x1810mm |
| WEIGHT | 1,500kg |
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
The combination of heavy-duty construction, an ISO40 spindle, servo feed drive, 3-axis digital readout and large worktable allows the UWF 125 SERVO to handle a wide range of milling operations. Contact a CORMAK advisor to select tooling, clamping system and additional equipment for the planned metalworking processes.
