Our new series of conventional milling machines, the UWF 150S SERVO, redefines precision and efficiency in industrial machining. This versatile milling machine has been designed for maximum flexibility and machining quality. Equipped with servo drives for 3 working feeds, the machine enables precise and fast machining of materials across a wide range of applications.

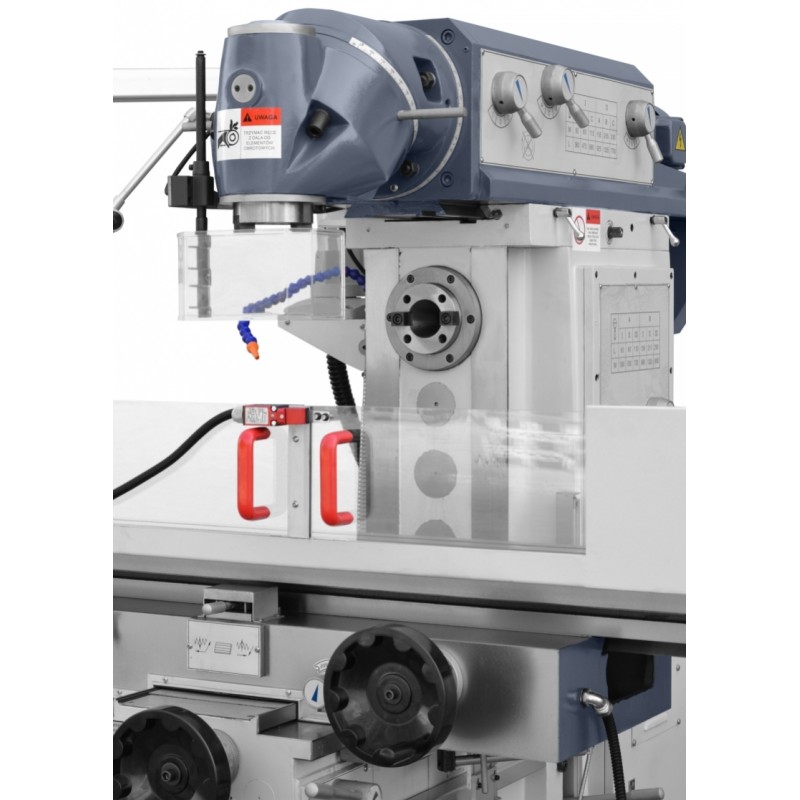

UWF 150S SERVO Universal Milling Machine with Swivelling Table is an industrial metal milling machine designed for precise machining of workpieces requiring a large range of movement and flexible workpiece positioning. The 1600x360mm worktable, automatic feeds in the X, Y and Z axes and table swivel capability of ±45° provide extensive machining possibilities for one-off, small-batch and workshop production.
The UWF 150S SERVO has been designed for facilities that require a universal milling machine with high functionality, stable operating parameters and the ability to machine workpieces at different angles. The swivelling table with a maximum tilt of ±45° allows the workpiece to be positioned relative to the tool without the need for additional angle attachments.
Automatic feeds in the X, Y and Z axes and rapid feed on all axes improve table positioning and reduce auxiliary operation time. The feed speed range of X/Y: 25~800mm/min and Z: 8-267mm/min allows the movement parameters to be adapted to the type of tool, material and machining operation.

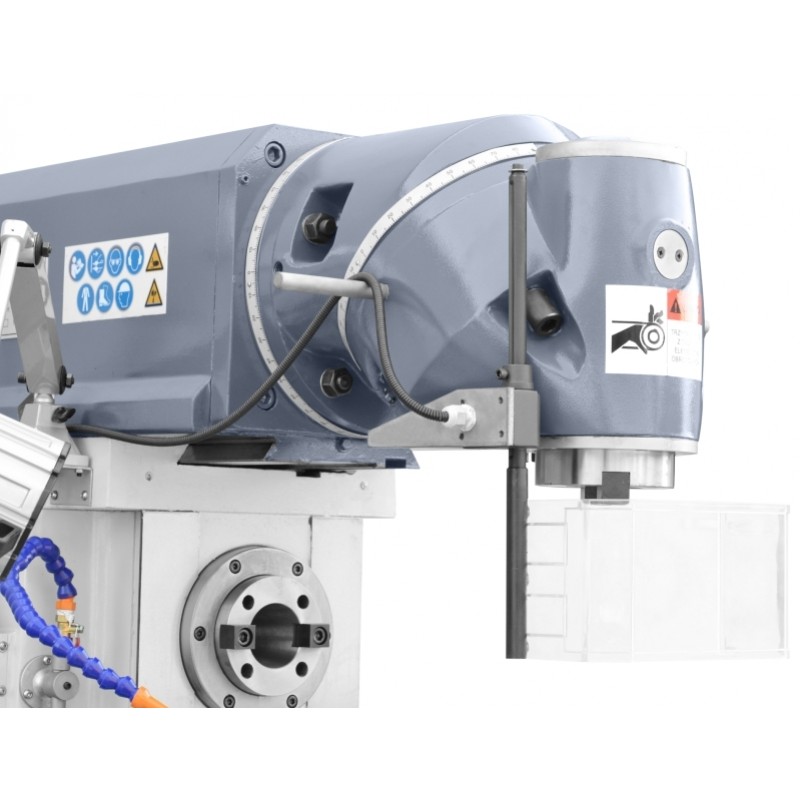

The machine construction has been designed for professional operation in machining facilities. The vertical and horizontal spindle tapers are made to the 7:24 ISO 50 standard, enabling the use of milling tooling intended for demanding industrial applications.

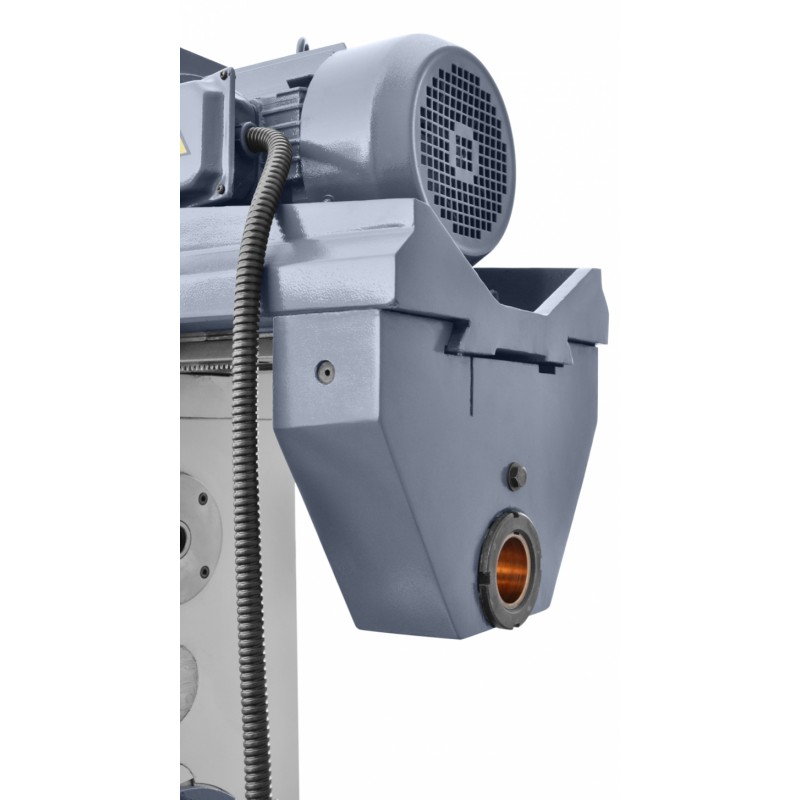

The 5.5kW horizontal motor and 4.5kW vertical motor allow the machining configuration to be adapted to the geometry of the workpiece. The speed range is (12) 60-1750rpm for the vertical spindle and (12) 58-1800rpm for the horizontal spindle, allowing the cutting parameters to be adapted to the type of material and tool.
The key distinguishing feature of the UWF 150S SERVO is the table with a ±45° swivel range. This solution enables milling of inclined surfaces, slots and components requiring angular positioning without the need for repeated machine setup. The three table T-slots, 14mm wide and spaced 95mm apart, allow the use of vices, holders and clamping systems.
The table feed servo drive rated at 2.36kW / 15Nm and stepless feed adjustment allow the working movement to be precisely adapted to the cutting parameters. The 3-axis digital readout facilitates positioning control, which is particularly important for repeatable operations and multi-surface machining.
The UWF 150S SERVO Universal Milling Machine is designed for toolrooms, production facilities, repair workshops, maintenance departments and companies carrying out one-off and small-batch machining. It can be used for milling flat surfaces, slots, inclined surfaces and workpieces requiring machining in vertical or horizontal configurations. It is a solution for companies using universal milling machines for a variety of machining processes.
| Technical parameters | |
|---|---|
| TABLE DIMENSIONS | 1600x360mm |
| MAX. TABLE TRAVEL (X/Y/Z) | 1300x300x420mm |
| TABLE T-SLOTS (QUANTITY/WIDTH/SPACING) | 3 /14mm/95mm |
| MAX. TABLE SWIVEL ANGLE | ±45° |
| TABLE FEED SPEED | X/Y: 25~800mm/min Z: 8-267mm/min |
| SPINDLE TAPER (VERTICAL/HORIZONTAL) | 7:24 ISO 50 / 7:24 ISO 50 |
| DISTANCE FROM TABLE CENTRE TO COLUMN SURFACE | 230-530mm |
| SPINDLE-TO-TABLE SURFACE DISTANCE | 0-420mm |
| DISTANCE FROM VERTICAL SPINDLE FACE TO TABLE SURFACE | 150-570mm |
| SPINDLE SPEED (VERTICAL/HORIZONTAL) | (12) 60-1750 / (12) 58-1800rpm |
| HORIZONTAL MOTOR POWER | 5.5kW |
| VERTICAL MOTOR POWER | 4.5kW |
| TABLE FEED SERVO DRIVE | 2.36kW /15Nm |
| DIMENSIONS | 2550x2161x2102mm |
| WEIGHT | 2,885kg |
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
The combination of a swivelling table, ISO 50 spindle tapers, automatic feeds and a table feed servo drive allows the UWF 150S SERVO to handle a wide range of processes at a single workstation. It is a metal milling machine designed for facilities requiring high setup flexibility, a substantial working area and the ability to perform operations at an angle.
Contact a CORMAK advisor to select additional equipment and tooling for the materials being machined, workpiece geometry and planned machining processes.
