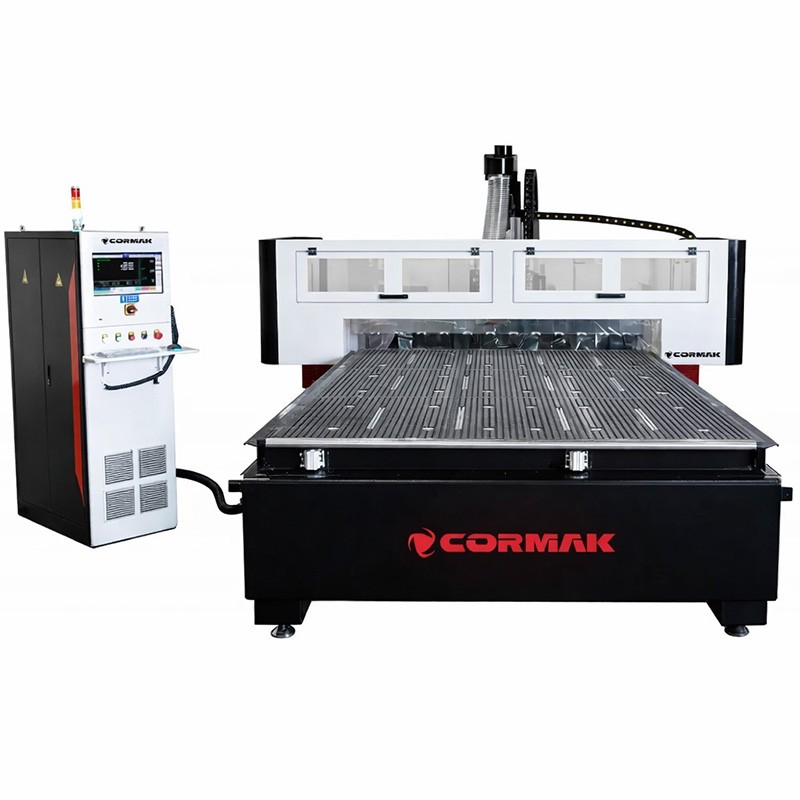

CNC Milling Machine / CNC Router CORMAK IND 2131 (2100x3100)

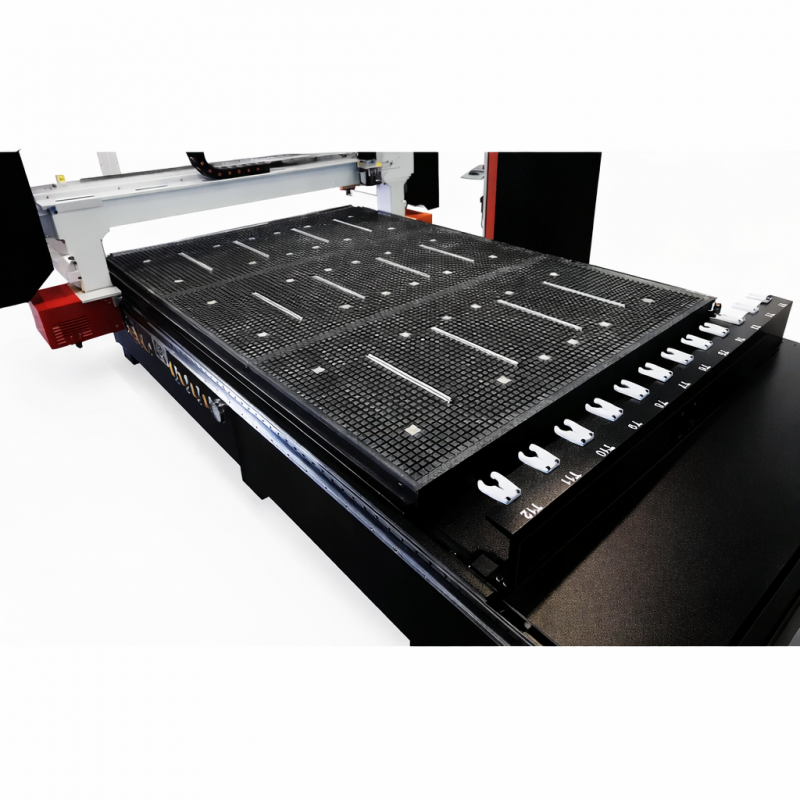

1. Worktable

• Sectional vacuum table with six independent zones made of durable HPL plates, controlled directly from the control cabinet,
• Each section features vacuum ports connected to the central vacuum pump system,
• Main ports include removable caps, allowing flexible clamping of various workpiece sizes,
• The table surface is covered with a network of channels ensuring even vacuum distribution,
• Includes T-slots for manual material clamping,
• Equipped with pneumatic positioning stops on two axes — ensuring consistent and repeatable material placement,
• The IND series features a reinforced industrial table providing superior rigidity.

2. Spindle

• High-performance 9 kW brushless spindle from a renowned Italian manufacturer, inverter-driven with overload protection,
• Air-cooled HSD spindle for high-duty industrial operation,
• Supports automatic tool change (ATC) to minimize downtime,
• Automation allows seamless tool utilization without recalibration or production interruption.

3. Drive System

• Energy-efficient YASKAWA AC servo drives controlled by a digital controller, ensuring high-speed and precise machining,
• Brushless AC servo motors on X and Y axes transmit motion via planetary gearboxes,
• Z-axis precision drive via reinforced ball screw,
• Portal movement along X and Y axes guided by HIWIN linear rails and helical gears made of hardened steel,
• All axes equipped with certified HIWIN trapezoidal linear guides, individually tested during assembly,

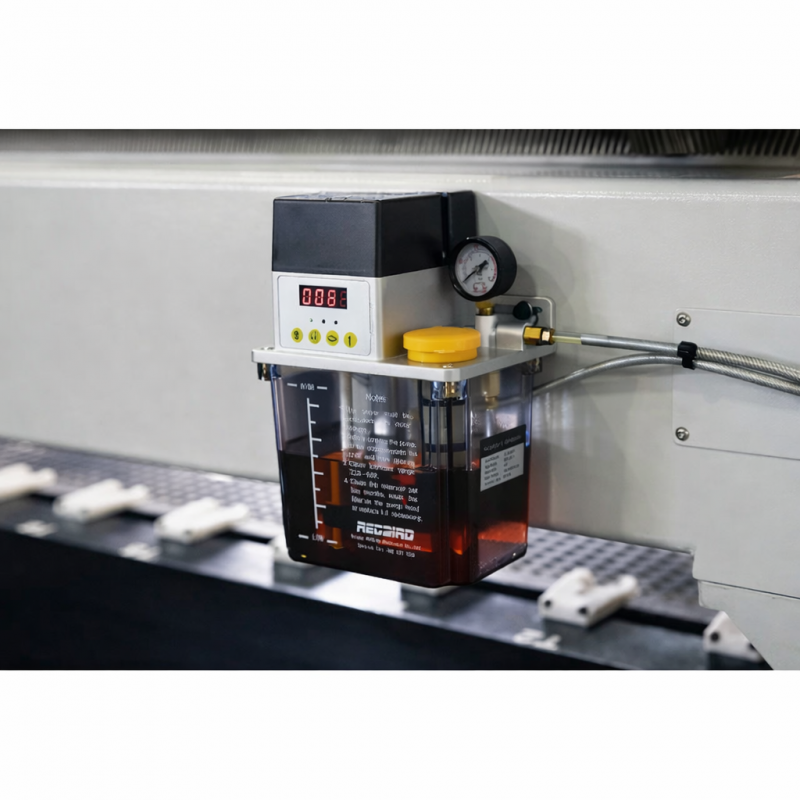

• Central automatic lubrication system for guides and ball screw ensures maintenance-free operation and extended component life.

4. Construction

• Sliding gantry structure made of cast iron for maximum rigidity and vibration damping,
• Reinforced ribbed steel table eliminates vibration during heavy-duty machining.

5. Tool Magazine and Measurement

• 12-position linear tool magazine with ISO30 holders and ER32 collets,
• Supplied with tool holders and collets: 1/2" (6 pcs), 1/8" (2 pcs), 3–4 mm (2 pcs), 5–6 mm (4 pcs), 7–8 mm (2 pcs), 9–10 mm (2 pcs),
• Equipped with an automatic Z-axis tool height sensor that eliminates manual calibration and ensures measurement precision.

6. Software and Industrial Control

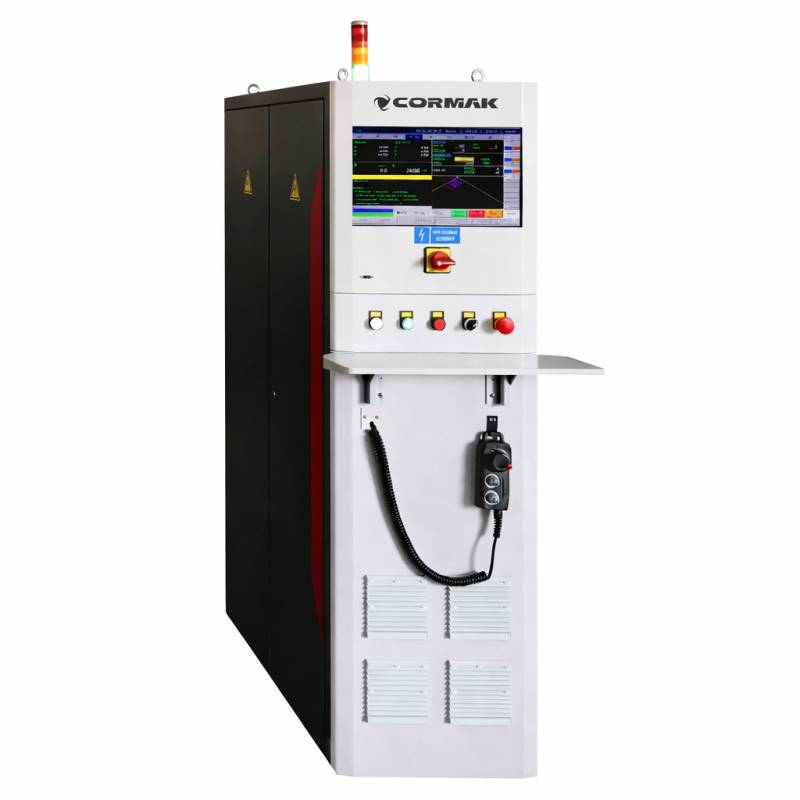

• Controlled by the SYNTEC industrial controller, identical to those used in CNC machining centers, complete with LCD display and hand pendant,
• Optional UCanCAM V13 software (imports Corel, AutoCAD files; supports G-code generation and editing),
• Enables quick design and conversion of elements into machining code, with easy import from other CAD programs.

7. Vacuum Pump (optional) and Dust Extraction Foot

• New-generation dust extraction housing allows efficient chip removal,
• Vacuum pump ensures secure material clamping during machining,
• Optional 7.5 kW vacuum pump (max -440 mbar) with six independent zones,
• Pneumatically actuated dust extraction foot mounted near the spindle keeps the work area clean and precise.

All CORMAK machines are CE-certified by leading EU authorities.

By choosing CORMAK, you invest in precision, long service life, and operational safety.

Warranty and post-warranty support available. Training and on-site commissioning offered on request — please contact our consultant.

The price refers to the machine only, excluding additional equipment, installation, transport, and training.

Technical Parameters

The machine is equipped with a G-code memory function — in case of power loss, it resumes machining from the last point without wasting time or material.

Optional Z-axis gantry height increase up to 450 mm.

Feed-in/out tables (loading/unloading) as in HK-51 and HK-52 models.

* Depending on material type and machining, using two vacuum pumps is recommended for improved holding efficiency.

* Unloading and installation of the machine are the customer’s responsibility.

** Power plug supplied by the customer due to varying 16A / 32A standards.

On-site commissioning of CNC routers available upon request, with individual pricing.
