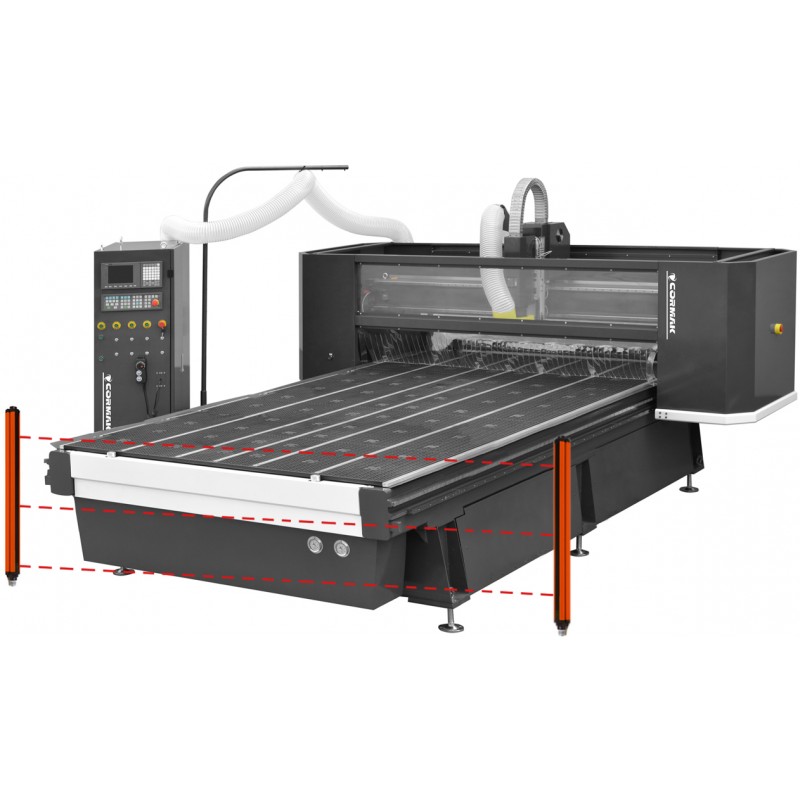

CNC Milling Machine CORMAK C2030 IND (2000×3000) + Hybrid Table

1. Work Table

• Sectional vacuum table with six independent vacuum zones made of rigid and durable HPL plates, controlled directly from the control cabinet.
• Each section has holes connected via a pipe system supplying vacuum from the pump.
• Main holes in the vacuum table have plugs allowing the clamping of different material formats.
• The table surface is covered with a network of channels that evenly distribute vacuum across the working area.
• Includes slots enabling manual clamping of materials as well.
• The table is equipped with stoppers on two axes! Pneumatic positioners allow precise, repeatable material placement.
• The IND series routers are fitted with a reinforced industrial-grade heavy-duty worktable.
• Possibility to mount a tool cabinet under the table at its end.

2. HSD Spindle – Made in Italy

• High-quality brushless spindle from a renowned manufacturer with 9kW power, powered by an inverter and protected against overload.
• Equipped with an innovative AIR-COOLED system.
• Designed for automatic tool change, reducing downtime and increasing machining efficiency.
• Automation enables the use of all tools during the process without calibration or production cycle interruption.
• Optional oil mist system (option*)

3. Drive System

• High-performance, energy-efficient YASKAWA AC servo drives controlled by a digital controller ensure excellent machining quality at high feed rates in all directions.
• Brushless AC servo motors on X and Y axes transmit motion through precision planetary gearboxes.
• The Z axis, where positioning accuracy is critical, is driven by a reinforced ball screw.
• Gantry movement on X and Y axes is achieved using HIWIN linear guides and helical rack gears made of hardened and tempered steel, ensuring years of reliable operation.
• All axes use professional HIWIN linear rails, with strict conformity and testing procedures at every assembly stage.
• Central maintenance-free lubrication system for key moving components such as carriages and the ball screw—saving time and protecting key elements.

4. Construction

• The moving gantry is made from cast iron, providing exceptional rigidity and excellent vibration damping during machining.
• The rigid steel ribbed frame design prevents vibration formation during production.

5. Tool Magazine and Tool Length Sensor

• The machine features an 8-position linear tool magazine, ISO30 toolholders and ER32 collets.
• Includes holders: ISO30 and collets for tool sizes:
  1/2" – 6 pcs; 1/8" – 2 pcs; 3–4 mm – 2 pcs; 5–6 mm – 4 pcs; 7–8 mm – 2 pcs; 9–10 mm – 2 pcs.
• Each CNC router is fitted with a precise Z-axis tool height sensor, eliminating the need for manual correction after each tool change.
