CNC Router CORMAK C1212 BSP (1200x1200)

Construction

• Rigid welded steel frame,
• The gantry arms are made of thick, powder-coated steel sheet, ensuring higher stiffness and excellent machining accuracy.

Worktable

• T-slot worktable,
• Equipped with T-slots for manual material clamping, working area 1200 × 1200mm,

Drive

• High-power drive motors provide suitable acceleration and speed along all axes.
• High-quality rack and pinion drives on X and Y axes ensure durability and precision,
• Z axis driven by a high-quality ball screw,
• All axes move on linear guideways,
• Router equipped with a tool height sensor.

Spindle

• High-quality machine bearings ensure quiet operation and extended spindle lifespan.
• Tool height measurement sensor – included,
• Spindle speed range from 4,500 to 18,000 rpm,
• Tool clamping with ER32 collets

Optional Software

• OPTIONAL Latest software UCanCAM V13 in English version (software allows importing files from Corel, AutoCAD etc., import/export, text editing and many other functions)
• The software allows quick and easy design of parts, which are then converted into G-code. It also supports importing ready-made files from other programs.
• The router features a function that memorises the last G-code path (in the event of power loss, it resumes from the last point without losing time or material).

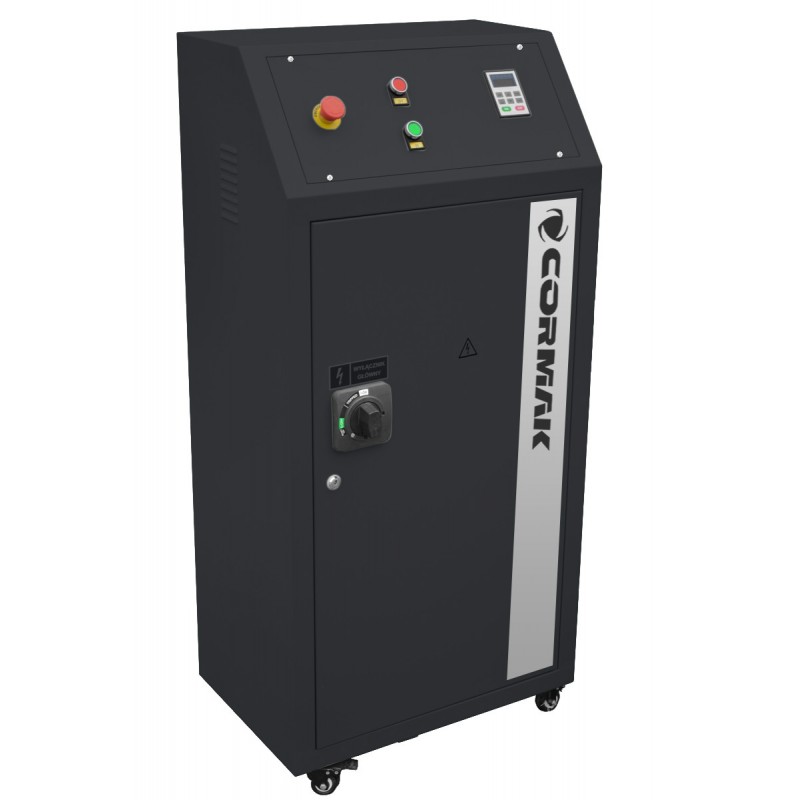

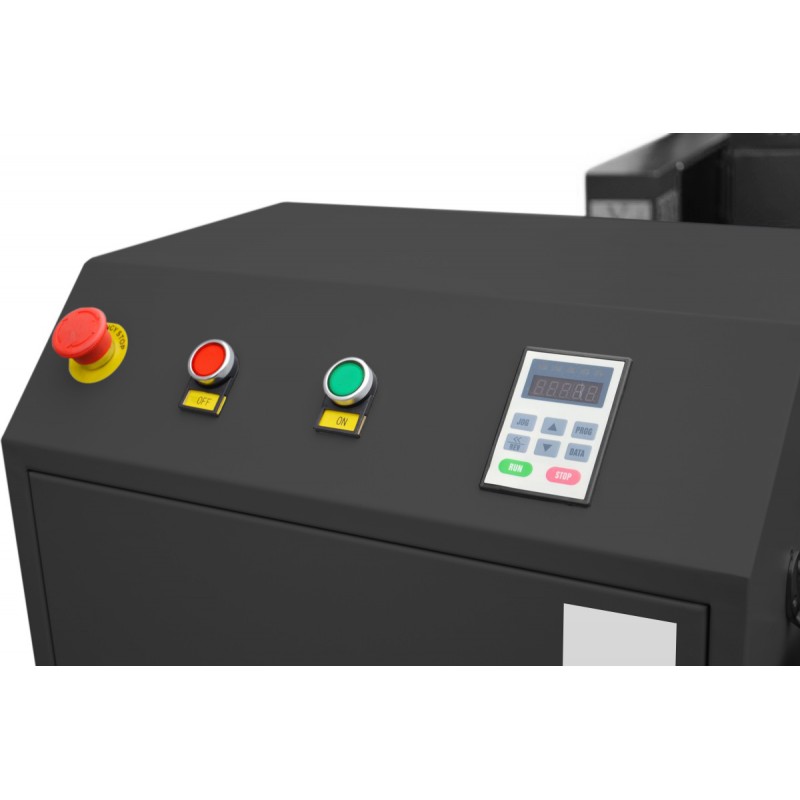

DSP Control

• Digital Signal Processing – digital signal processing,
• The router’s DSP controller has its own processor and memory, ensuring reliable operation and easy handling,
• The controller provides smooth operation and high machining accuracy,
• After a power interruption, reinitialisation of the programme is not required,
• The built-in controller memory allows the router to work without reloading the programme each time.



Machines supplied with genuine CE certification – verified by leading EU institutions.

By choosing the CORMAK brand, you choose machining precision, long service life, peace of mind and operator safety.

Technical Specifications

NOTE!

The router is equipped with a function that memorises the last G-code path. In case of failure or power loss, it resumes from the last point without losing time or material.

Equipment

• Levelling feet,
• Screws,
• Wrenches,
• Training cutter set,
• ER32 collets – 1/8 inch, 1/2 inch, and 5–6 mm,

Unloading and positioning of the router are the client’s responsibility.

Power plug provided by the client due to different 16A / 32A sockets.
