CNC Milling Machine / CNC Router C2131 ATC (2100x3200) Automatic Tool Change

1. Work Table

• Sectional table with FOUR independent vacuum sections, made of rigid and durable HPL plates,
• Each section includes holes connected via a system of pipes to the vacuum pump,
• Main vacuum table holes are equipped with plugs, allowing the clamping of various material formats,
• The worktable surface is covered with a network of channels ensuring even vacuum distribution over the entire area,
• Includes grooves allowing manual material clamping as well.

2. HQD Spindle

• High-class brushless spindle from a renowned manufacturer with 9 kW power, powered by an inverter and equipped with overload protection.
• Milling electrospindle fitted with an innovative AIR COOLING system.
• Designed for automatic tool change, which shortens machining time by eliminating downtime for manual tool replacement.
• Automation enables the use of all tools in the production process without calibration or production cycle interruption.

3. Drive

• Energy-efficient, high-quality Leadshine servo drives with 1500W power and high holding torque (dual drive on the Y-axis),
• Controlled by the digital controller NK-105 G3, providing excellent machining quality while maintaining high feed speeds in all directions,
• Brushless servo motors driving the X and Y axes transmit power through high-quality planetary gearboxes,
• The Z-axis, where positioning precision is crucial, is driven by a reinforced ball screw,
• Movement of the gantry along the X and Y axes is achieved through HIWIN linear guides and helical gears, ensuring long-term, failure-free operation, made from high-quality hardened and tempered steel,
• Professional trapezoidal guide rails by HIWIN are used on all axes, inspected for conformity, with testing procedures performed at every assembly stage,
• Central maintenance-free lubrication system for the most critical moving parts — carriages and the ball screw — saving time and protecting the key mechanical components.

4. Construction

• The movable gantry structure is made of cast iron, providing exceptional rigidity and excellent vibration absorption during machining,
• The rigid, ribbed steel table structure eliminates vibration formation during the production process.

5. Tool Magazine (8 tools) + Tool Height Sensor

• The machine is equipped with an 8-position linear tool magazine, a set of ISO30 tapers, and ER32 collets,
• Included tool holders: ISO30 and collets for tool sizes:
  1/2" – 6 pcs; 1/8" – 2 pcs; 3–4 mm – 2 pcs; 5–6 mm – 4 pcs; 7–8 mm – 2 pcs; 9–10 mm – 2 pcs,
• Each CNC milling router is equipped with a precise Z-axis tool height sensor, eliminating the need for manual measurement corrections after every tool change.

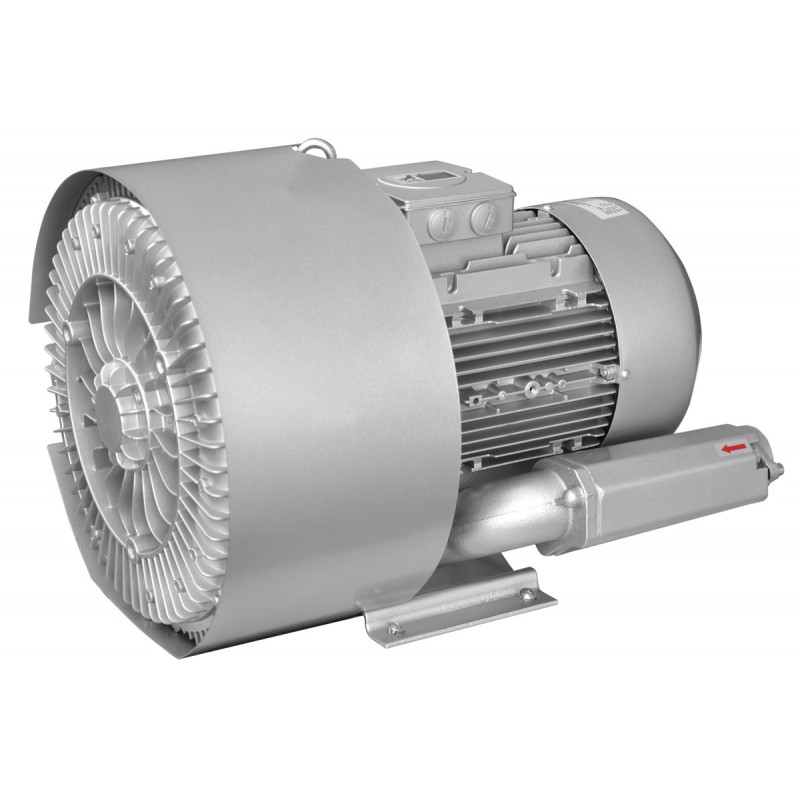

6. Vacuum Pump (option) and Extraction Foot

• The use of a vacuum pump significantly increases the clamping force of workpieces on the machine table, preventing material displacement during machining,
• Four independent vacuum sections,
• Pneumatically operated extraction foot located next to the spindle allows connection of any chip extraction system, maintaining cleanliness, safety, and machining precision.

We offer machines with genuine CE certification – EU DTR – certified by leading authorities in the European Union.

Choosing the CORMAK brand means choosing machining precision, long service life, peace of mind, and operator safety.

We offer warranty and post-warranty service. Machine training and/or commissioning is available upon individual pricing — please contact our consultant.

Technical Parameters

The machine is equipped with a function that remembers the last G-code path. In the event of a failure or power interruption, it resumes operation from the last point without time or material loss.

Equipment

• Premium air-cooled spindle,
• Leadshine servo drives, 1500W,
• Raised gantry on the Z axis to 300 mm,
• Vacuum table – 4 independent vacuum sections + T-slot table for manual material clamping,
• Tool height sensor included,
• Tools, collet set, leveling feet, extraction foot, and other accessories,
• NK-105 G3 control system,
• Machine equipped with a function that remembers the last G-code path (in the event of a failure or power interruption, it resumes operation from the last point without time or material loss),
• Starter tool set: milling cutters, drills, holders.

SimCNC Software (optional)

• Software available in Polish,
• High-speed industrial computer enclosed in a sealed housing,
• Lifetime SimCNC license with the option of updates,
• Thanks to Windows 10-based environment, it allows programming and design directly during machine operation on the same workstation,
• Possibility of installing UCANCAM software on the same workstation, allowing toolpath creation and execution in one place, improving efficiency and saving time,
• Visualization of machining during operation,
• Machine equipped with a function that remembers the last G-code path (in the event of a failure or power interruption, it resumes operation from the last point without time or material loss),
• Machining visualization during operation,
• Error messages providing status information,
• Simple, user-friendly interface displaying basic parameters and enabling quick operation,
• Fast macros for tool measurement via a single button.

New CSMIO Controller (optional)

• Extensive expansion capabilities,
• Polish manufacturer,
• Control system combined with SimCNC software allows smooth spindle speed regulation, offering greater control over the machining process,
• Ability to start the spindle in both directions,
• Option to add MPG (manual pulse generator) to simplify setup operations



On-site commissioning of CNC routers available upon request, with individual pricing.
