Construction
- Rigid welded steel construction,
- The gantry arms are made of thick, powder-coated sheet steel, ensuring increased rigidity and better machining quality.

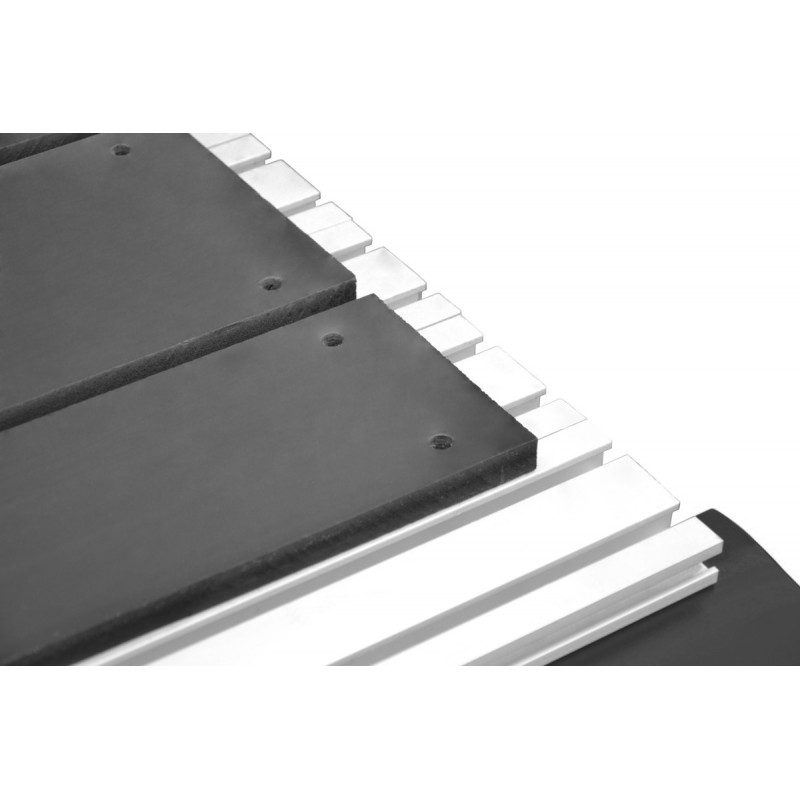

Working Table
- Working table manufactured using hybrid technology,
- Equipped with T-slots enabling manual material clamping, dimensions 1200 x 1200mm,
Drive
- High-power motors ensure proper acceleration and movement speeds in each direction.

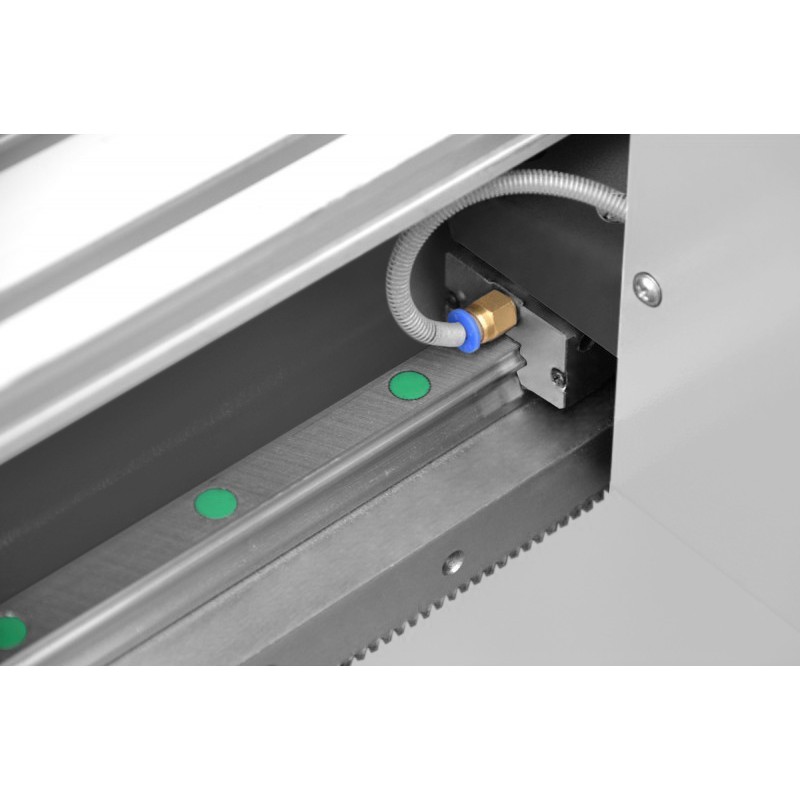

- The X and Y axes feature high-quality rack-and-pinion drives ensuring precision and durability,
- The Z axis is driven by a high-quality ball screw,
- All axes move on linear guideways,
- The machine is equipped with a tool height sensor.
Spindle
- The spindle features high-quality machine bearings ensuring quiet operation and long service life.
- Tool height measurement sensor included.
- Spindle speed range from 4,500 to 18,000 rpm.
- Tool clamping via ER32 collet system.
Optional Software
- OPTIONAL Latest UCanCAM V13 software (enables import of files from Corel, AutoCAD etc. Import/export options, editor, text input and many other functions)
- The software allows quick and easy design of elements, which the program converts to G-code. Import of ready-made files from other programs is also possible.
- The machine is equipped with a function that saves the last G-code path (in case of failure or power interruption, it resumes work from the last point without losing time or material).

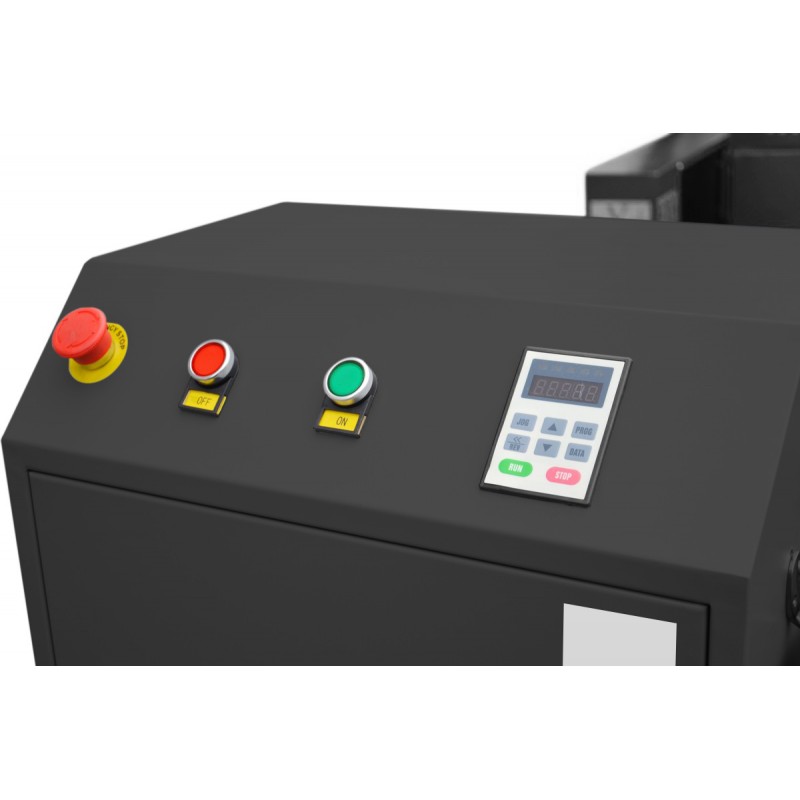

DSP Control
- Digital Signal Processing – digital signal processing system
- The DSP controller has its own processor and operating memory, ensuring reliable operation and simple control.
- The controller ensures smooth machine operation and machining precision.
- After power loss, there is no need to reinitialise the program.
- The built-in controller memory allows operation without the need to reload the program each time.
We offer machines with genuine CE certification – approved by top EU institutions.
By choosing CORMAK you choose machining precision, long service life, safety and reliability.
Technical Specifications
| Spindle |
3.7kW / 18,000 rpm inverter, air-cooled |
| Working area |
1200x1200x210 mm |
| Control |
DSP |
| Software resolution |
0.001 mm |
| Power supply |
400V |
| Weight |
520 kg |
| Machine dimensions |
2000x1800x1640 mm |
| Table height |
715 mm |
| Guideways |
Linear |
| Drive transmission |
Rack-and-pinion (Z axis – ball screw) |
| Software |
Software UCanCAM V13 (optional) |
ATTENTION!
The machine is equipped with a function that memorises the last G-code path. In case of failure or power loss, it resumes work from the last point without losing time or material.
Equipment
- Levelling feet,
- Screws,
- Keys,
- Training milling cutter set,
- ER32 collets – 1/8 inch, 1/2 inch and 5–6 mm
Unloading and machine placement at customer’s side.
Power plug provided by the customer (depending on 16A / 32A sockets).
