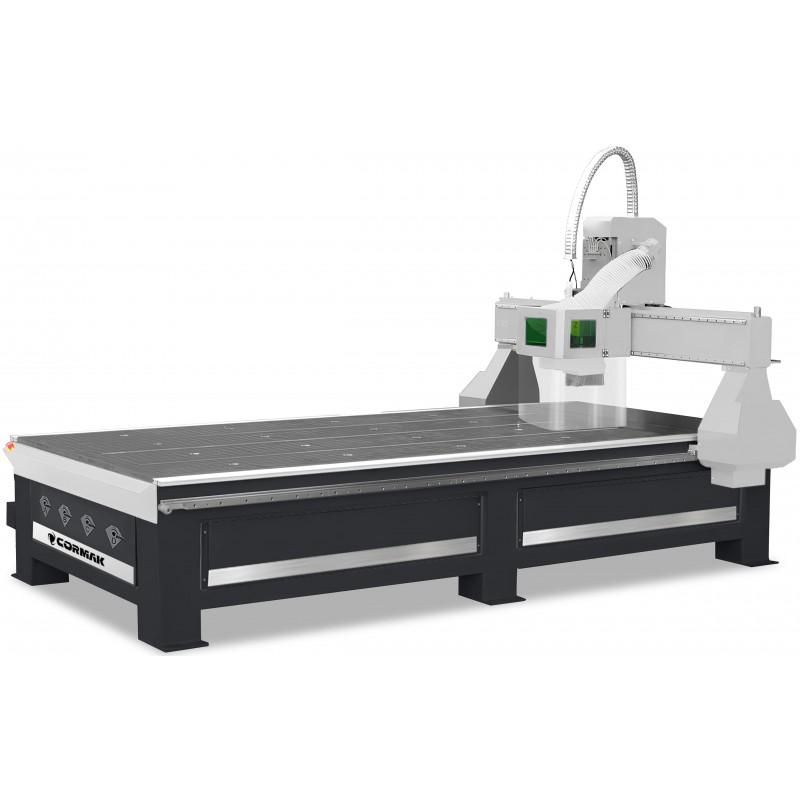

CNC Milling Machine / CNC Router CORMAK C1530 PREMIUM (1500x3000) with Hybrid Table

Construction

• Rigid welded steel structure,
• The gantry arms are made of hardened, powder-coated thick sheet metal, providing increased stiffness and improved machining precision.

Worktable

• Hybrid worktable design,
• Equipped with T-slots for manual clamping of materials measuring 1300 x 2500 mm,
• Sectional vacuum table with four independent vacuum zones.

Drive

• SERVO motors ensure high acceleration and travel speeds in all directions.
• X and Y axes use high-quality rack and pinion drives, ensuring durability and precision,
• Z axis driven by a high-quality ball screw,
• All axes move on linear guideways,
• The machine is equipped with a tool height sensor,

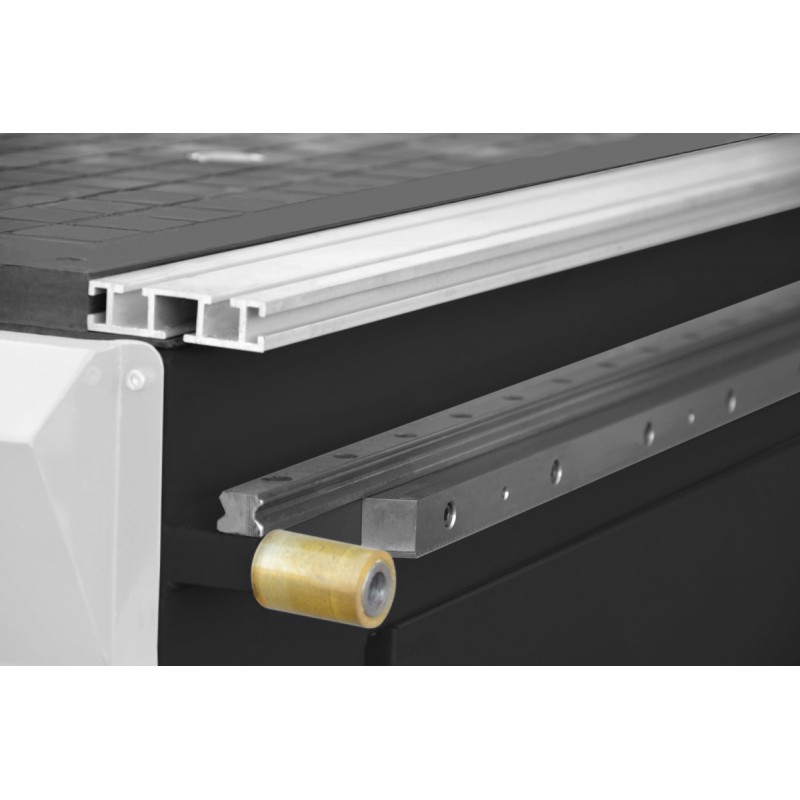

• Linear bearings: trapezoidal rails, Hiwin carriages.

Spindle

• High-quality brushless spindle designed for durability,
• Additionally equipped with an innovative AIR cooling system (not liquid!)
• The spindle design uses precision machine bearings, ensuring quiet operation and long service life,
• Tool height measuring sensor – included,
• Spindle speed range: 4,500–18,000 rpm,
• Tool clamping via ER32 collets.

Software

• OPTIONALLY latest software UCanCAM V13 (software enables importing files from Corel, AutoCAD, etc. Import/export of files, text editing and creation, and many other functions)
• Allows quick and easy design of parts, which the program then converts into G-code. It also allows importing ready-made files from other programs.
• The machine features G-code path memory (in case of power loss, it resumes from the last point without time or material loss.)

DSP Control

• Digital Signal Processing – digital signal processing technology,
• The DSP controller has its own processor and operating memory, ensuring reliable operation and ease of control,
• Provides smooth operation and machining precision,
• After power loss, reinitialisation is unnecessary,
• Built-in memory allows operation without reloading the program each time.




We offer machines with genuine CE certification – certified by leading EU institutions.

By choosing the CORMAK brand, you choose machining precision, long service life, and operator safety.

We offer warranty and post-warranty service. Machine training and/or commissioning is available upon individual pricing — please contact our consultant.

Technical parameters

Equipment

• Air-cooled spindle, PREMIUM version
• Hybrid servo drives
• Raised Z-axis gantry – 350 mm
• Vacuum table – 4 independent vacuum zones + T-slot table for manual fixing
• Tool height sensor included
• Tool set, collets, levelling feet, and accessories
• DSP control – digital signal processing
• Starter milling cutter set

Unloading and machine placement are the customer’s responsibility.

Power plug on the customer’s side due to various 16A / 32A sockets.

On-site commissioning of CNC routers available upon request, with individual pricing.
