CNC Milling Machine / CNC Router CORMAK C2141 ATC 2100 x 4200 mm with Automatic Tool Change

1. Work Table

• Sectional table with four independent vacuum sections, made of rigid and durable HPL plates,
• Each section includes holes connected via a pipe system to the vacuum pump,
• Main vacuum table holes are equipped with plugs, allowing the clamping of various material formats,
• The worktable surface is covered with a network of channels ensuring even vacuum distribution across the entire surface,
• Includes grooves allowing manual material clamping as well.

2. HQD Spindle

• High-quality brushless spindle from a renowned manufacturer with 9 kW power, powered by an inverter and equipped with overload protection,
• Milling electrospindle equipped with an innovative AIR COOLING system,
• Designed for automatic tool change, which shortens machining time by eliminating downtime related to manual tool replacement,
• Automation allows the use of all tools during production without calibration or cycle interruption.

3. Drive

• Energy-efficient, high-quality Leadshine servo drives with 1500W power and high holding torque (dual drive on the Y axis),
• Controlled by the digital controller NK-105 G3, ensuring excellent machining quality while maintaining high operating speeds in all directions,
• Brushless servo motors driving the X and Y axes transmit power through high-quality planetary gearboxes,
• The Z axis, where positioning precision is crucial, is driven by a reinforced ball screw,
• Movement of the gantry along the X and Y axes is achieved through HIWIN linear guides and helical gears, guaranteeing long-term, failure-free operation — made of high-quality hardened and tempered steel,
• Professional trapezoidal guide rails by HIWIN are used on all axes and are inspected for conformity, with testing procedures carried out at every assembly stage,
• Central maintenance-free lubrication system for the main moving parts — carriages and ball screw — saving time and protecting the most important components.

4. Construction

• The movable gantry structure is made of cast iron, providing exceptional rigidity and excellent vibration absorption during machining,
• The rigid, ribbed steel table structure eliminates vibrations during the production process.

5. Tool Magazine (8 tools) + Tool Height Sensor

• The machine is equipped with an 8-position linear tool magazine, a set of ISO30 tapers, and ER32 collets,
• Included tool holders: ISO30 and collets for tool sizes:
  1/2" – 6 pcs; 1/8" – 2 pcs; 3–4 mm – 2 pcs; 5–6 mm – 4 pcs; 7–8 mm – 2 pcs; 9–10 mm – 2 pcs,
• Each CNC milling router is equipped with a precise Z-axis tool height sensor, which eliminates the need for measurement corrections after each tool change.

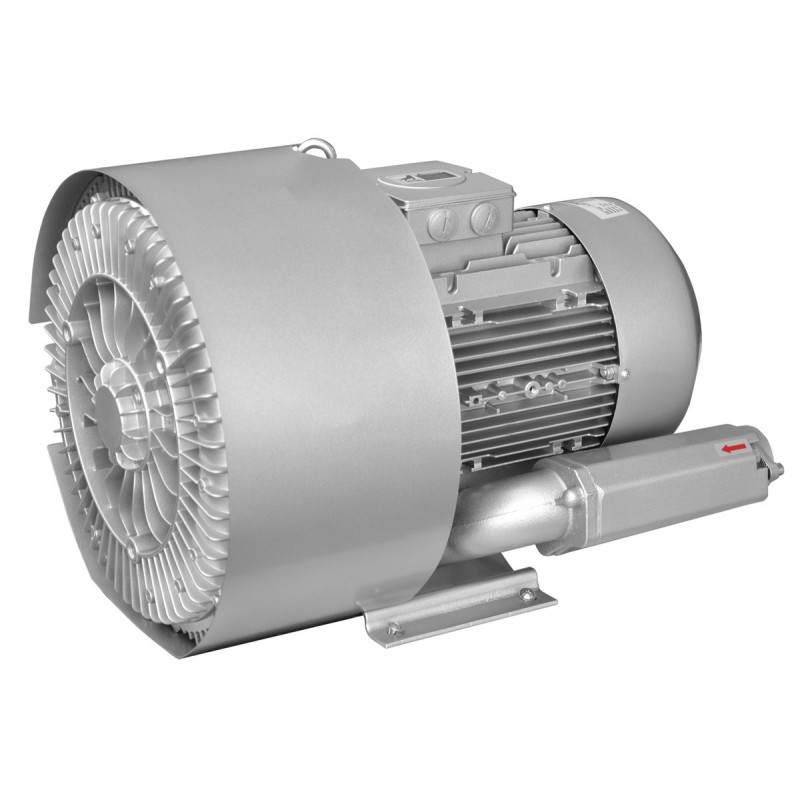

6. Vacuum Pump and Extraction Foot (option)

• The use of a vacuum pump significantly increases the clamping force of the workpieces on the machine table, preventing material displacement,
• Four independent vacuum sections,
• Pneumatically operated extraction foot located next to the spindle allows connection to any chip extraction system, ensuring machining cleanliness, safety, and precision.

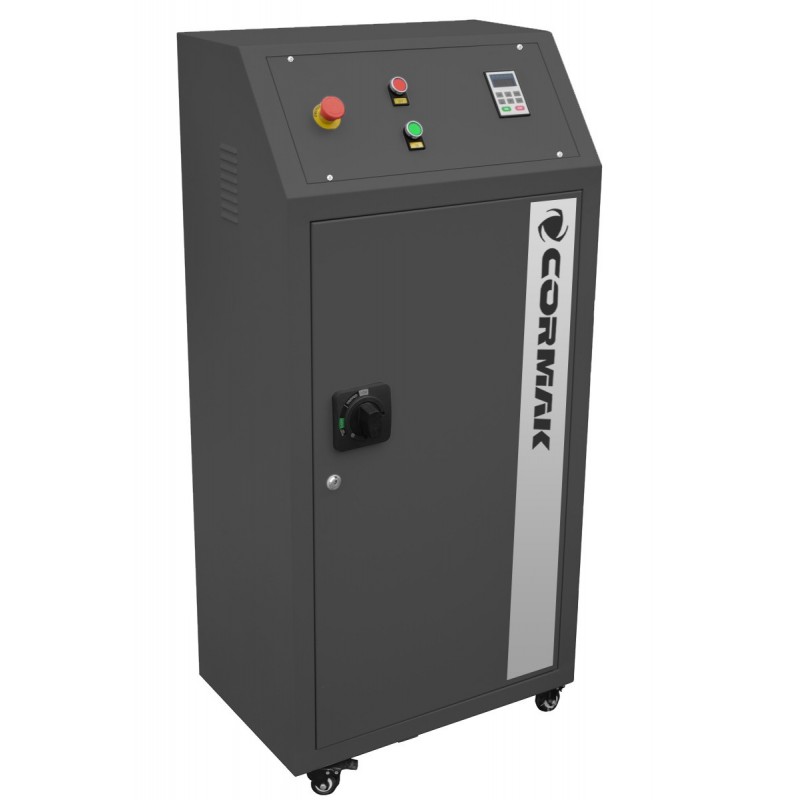

7. Software and INDUSTRIAL CONTROL:

• NK-105 G3 control system,
• The machine supports the latest CAD/CAM software,
• OPTIONALLY the latest software UCanCAM V12 in the Polish language version (the software allows importing files from Corel, AutoCAD, etc.; import/export of files, editing and text input, and many additional functions),
• The software allows quick and easy design of elements, which the program then converts into G-code. It is also possible to import ready files from other programs,
• The machine is equipped with a function that remembers the last G-code path (in the event of a failure or power interruption, it resumes operation from the last point without time or material loss).

We offer machines with genuine CE certification – EU DTR – certified by leading authorities in the European Union.

Choosing the CORMAK brand means choosing machining precision, long service life, peace of mind, and operator safety.

We offer warranty and post-warranty service. Machine training and/or commissioning is available upon individual pricing — please contact our consultant.

Technical Parameters

The machine is equipped with a function that remembers the last G-code path. In the event of a failure or power interruption, it resumes operation from the last point without time or material loss.

Equipment

• Premium air-cooled spindle,
• Leadshine servo drives, 1500W,
• Raised gantry on the Z axis to 350 mm,
• Vacuum table – 4 independent vacuum sections + T-slot table for manual material clamping,
• Tool height sensor included,
• NK-105 G3 control system,
• Tools, collet set, leveling feet, and other accessories,
• Tool set: milling cutters, drills, holders.

Raised gantry on Z axis up to 450 mm

Feeding/unloading table (loading–unloading) as in HK-51 and HK-52 models

Option to add oil mist system at additional cost

Unloading and placement of the machine are the responsibility of the client.

Power plug provided by the client due to varying 16A / 32A socket types.

On-site commissioning of CNC routers available upon request, with individual pricing.
