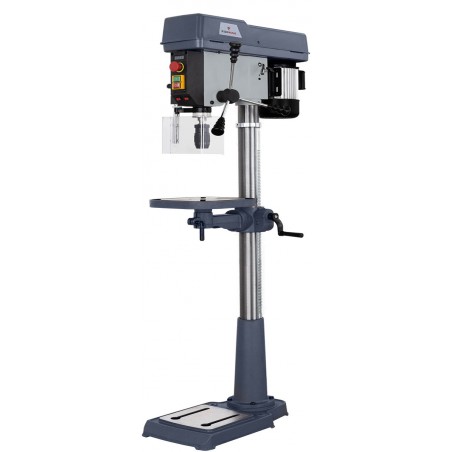

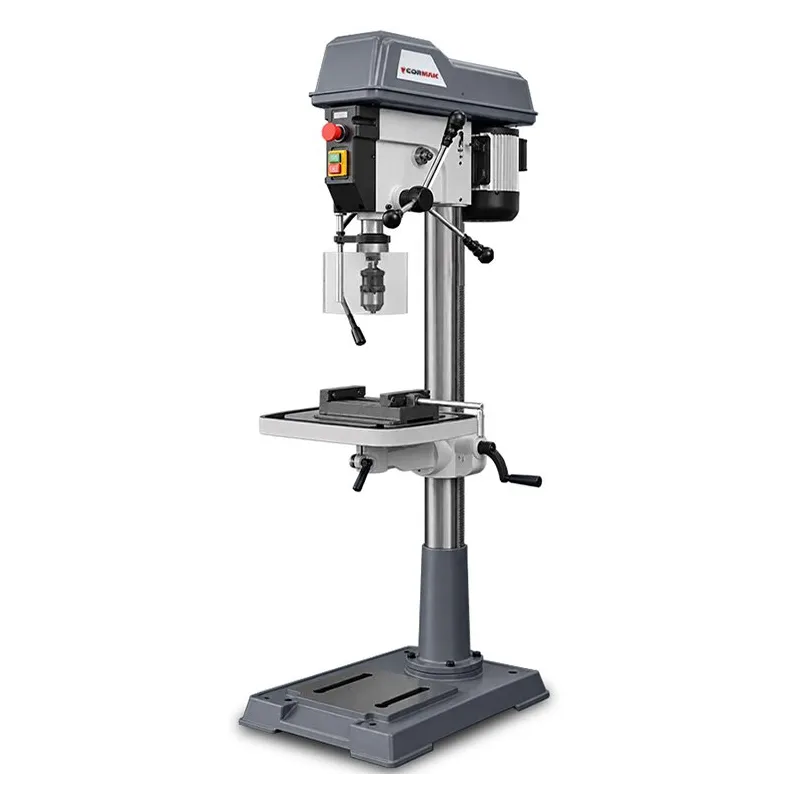

Column Drill CORMAK Z5020 VARIO Variable-Speed 1.5kW 400V

Metalworking Column Drill CORMAK Z5020 Vario / 1.5kW 400V – Professional Precision and Power in One Machine

The CORMAK Z5020 Vario / 400V column drill is a high-quality column drilling machine for metalworking, designed for demanding industrial users. Combining robust construction, continuously variable spindle speed control and extended spindle travel, the machine is ideally suited to precision machining of steel, cast iron, aluminium and other structural materials.

Key advantages of the CORMAK Z5020 Vario column drill

• Continuously variable spindle speed control from 180–2,000rpm – allows precise adjustment of operating parameters to suit the material and tool diameter.
• Extended spindle travel – 150mm – enables deep holes to be drilled without repositioning the workpiece.
• Tilting worktable with a ±45° range – enables drilling operations at an angle and increases application flexibility.
• Solid 80mm-diameter column – provides structural rigidity and vibration damping during intensive operation.

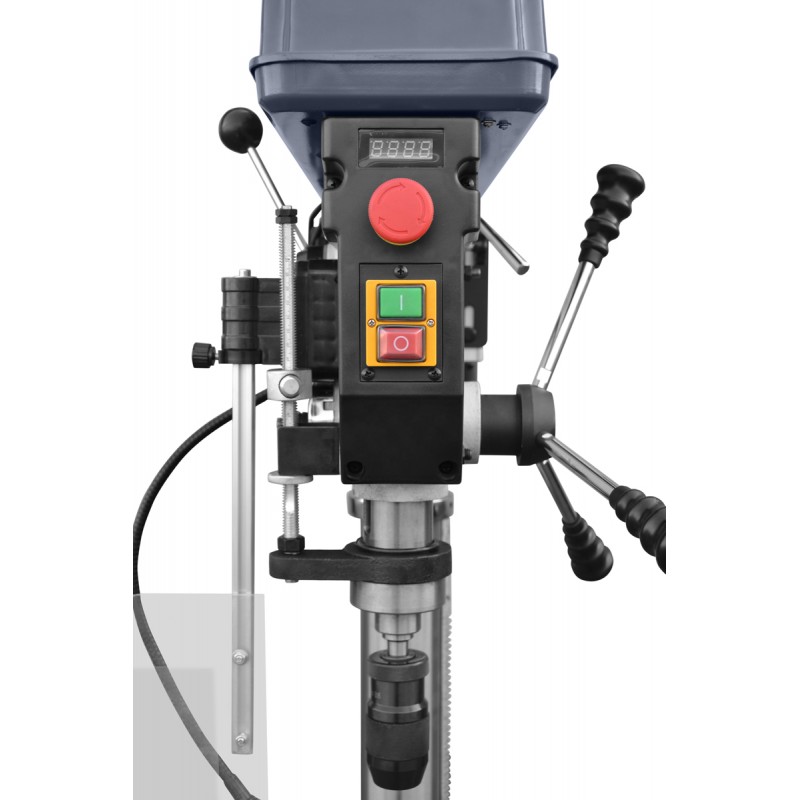

• Precision drilling depth stop with graduated scale – ensures repeatability and control in series production.
• Integrated LED light – improves visibility of the working area in all lighting conditions.
• Table and base with T-slots – facilitate the mounting of vices and workholding fixtures.

Construction and technology – designed for durability and functionality

The CORMAK Z5020 Vario column drill has been designed for maximum stability and ergonomics. The machine body is made from high-quality cast iron components that provide vibration damping and resistance to deformation. Power is transmitted through a durable belt drive system that ensures quiet, trouble-free operation. The 356 × 356mm worktable provides a large surface for machining workpieces of various sizes, while its 600mm vertical travel allows taller components to be accommodated.

Precision and efficiency – for demanding machining processes

The CORMAK Z5020 Vario metalworking column drill is equipped with a 1.5kW motor powered by a three-phase 400V supply. This drive system provides consistent torque, ensuring efficient operation even when drilling larger-diameter holes. Continuously variable spindle speed control allows quick adjustments when switching between materials, while the rigidity of the entire construction eliminates vibration, directly improving hole quality, reducing tool wear and increasing production efficiency.

Applications – versatility in industry and workshops

The CORMAK Z5020 Vario model is widely used in:

• metalworking facilities – one-off, small-batch and series production,
• metal fabrication workshops, repair workshops and toolrooms,
• industrial maintenance departments,
• technical schools and training centres where reliable and repeatable processes are essential.

Standard equipment

• Tilting worktable with T-slots
• Base with mounting slots
• LED work light
• Drilling depth stop with graduated scale
• Continuously variable spindle speed control

Technical specifications

Choose reliability and precision – choose CORMAK Z5020 Vario

The CORMAK Z5020 Vario metalworking column drill is a solution for professionals who demand durability, precision and versatility. Order directly from cormak.uk and increase your production efficiency with proven CORMAK technology.
