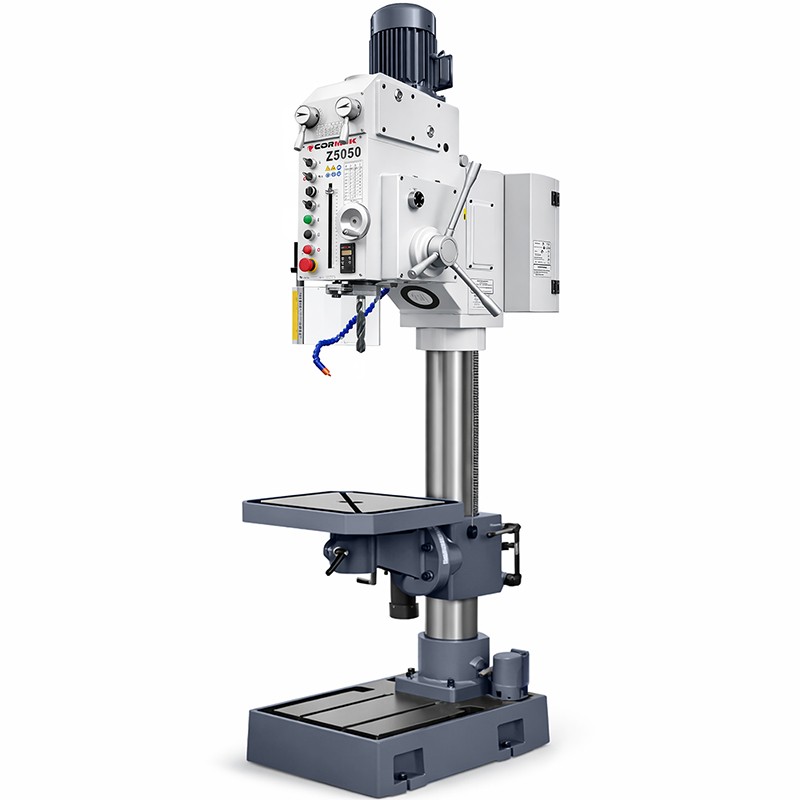

The industrial CORMAK Z5050 column drilling machine is suitable for both small workshops and large-scale production. Its heavy-duty cast-iron construction and rigid steel column ensure stability and accuracy even under heavy load. The drill features a wide speed range, automatic spindle feed, tapping function, and built-in cooling, offering exceptional reliability and precision in continuous operation.
The CORMAK Z5050 pillar drill is a durable and precise column drilling machine for metal, designed for professional industrial use requiring high performance and reliability. With a wide speed range, tapping function and four-step automatic spindle feed, this machine is ideal for drilling large-diameter holes in structural materials. Its solid construction and ergonomic design make the CORMAK Z5050 industrial drill an investment in long-term efficiency and operator safety.

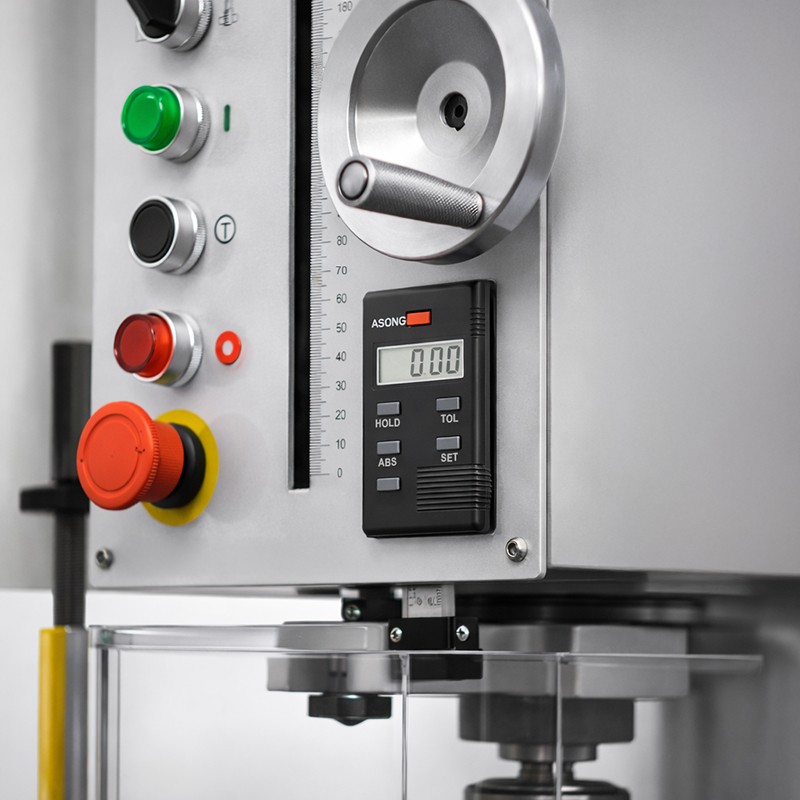

The CORMAK Z5050 column drilling machine is engineered for maximum stability and torque. The MK5 spindle with a 210 mm travel allows deep drilling and tapping. The 190 mm diameter column and rigid cast-iron base ensure vibration damping and structural rigidity. The intuitive control panel, feed indicator and user-friendly speed adjustment make operation smooth, accurate and safe.
Powered by a robust 2.2 / 3 kW (960 / 1440 rpm) motor, the CORMAK Z5050 pillar drill delivers constant torque transmission to the spindle, ensuring efficient performance even in hard steel. The cooling system with a 75 W independent pump maintains optimal cutting conditions, improves surface finish and extends tool life. The heavy-duty gearbox ensures smooth operation across all 18 speeds.
The CORMAK Z5050 industrial pillar drill is ideal for use in:
| Maximum drilling capacity | 50 mm |
| Tapping (steel / cast iron) | M22 / M24 |
| Spindle taper | MK5 |
| Spindle travel | 210 mm |
| Number of speeds | 18 |
| Spindle speeds | 55–1450 rpm |
| Number of spindle feeds | 4 |
| Feed rates | 0.1 / 0.2 / 0.3 / 0.4 mm/rev |
| Column diameter | 190 mm |
| Spindle–column distance | 370 mm |
| Spindle–table distance | 80–800 mm |
| Spindle–base distance | 1325 mm |

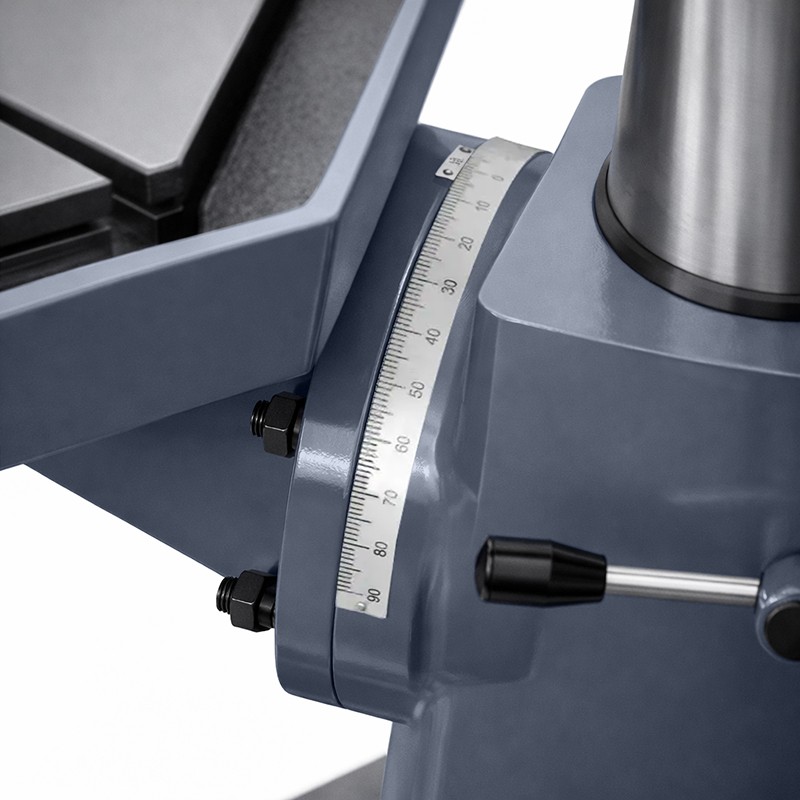

| Table tilt angle | ±45° |
| Table dimensions | 580 × 580 mm |
| Base dimensions | 860 × 580 mm |
| T-slot width | 2 × 18 mm |
| Main motor power | 2.2 / 3 kW |
| Motor speed | 960 / 1440 rpm |
| Coolant pump power | 75 W |
| Overall dimensions | 1050 × 590 × 2150 mm |
| Net / gross weight | 760 / 860 kg |
Choose power, precision and safety. Invest in the CORMAK Z5050 pillar drill to increase drilling and tapping efficiency in your workshop. Order online or contact our technical advisor for expert guidance.
▶
▶
