Powerful and efficient industrial pillar drill with a height of 190 cm. The drill features an efficient cooling system with a metal outlet. The machine offers automatic spindle rotation reversal during tapping. Equipped with 8 SPEED SETTINGS ranging from 140, 250, 380, 500, 580, 850, 1250, to 1960 rpm. Two worktables provide multiple machining options. The latest-generation induction motor and optimally designed belt drive ensure high power and efficiency.

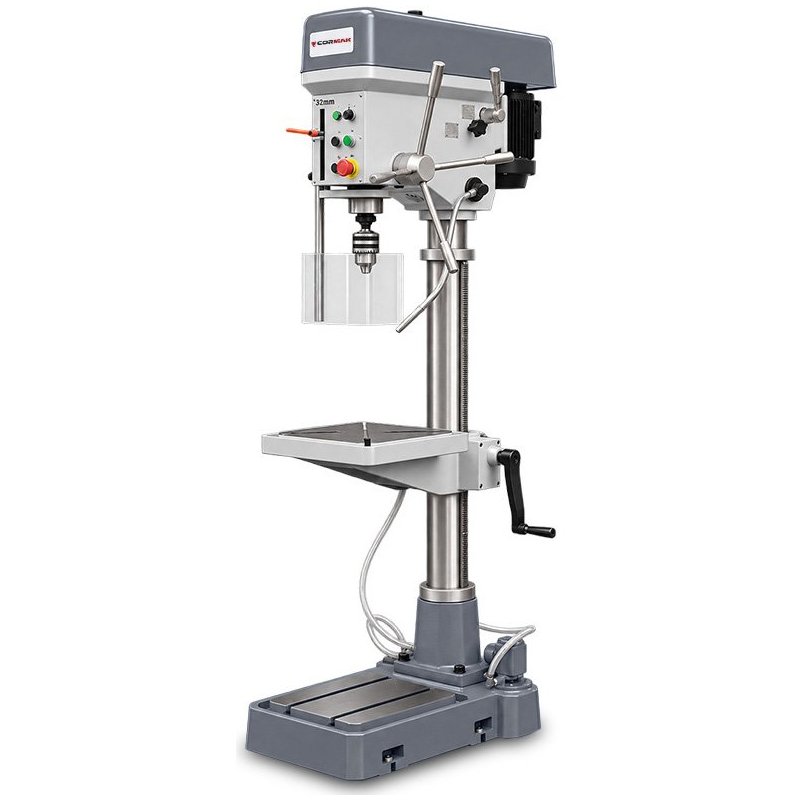

The CORMAK WS32GP pillar drill is an advanced industrial column drill for metal, designed for environments where high precision, durability and threading capability are required. Equipped with a cooling system, safety covers and a 400 V drive, this machine is ideal for both serial production and professional toolmaking workshops.

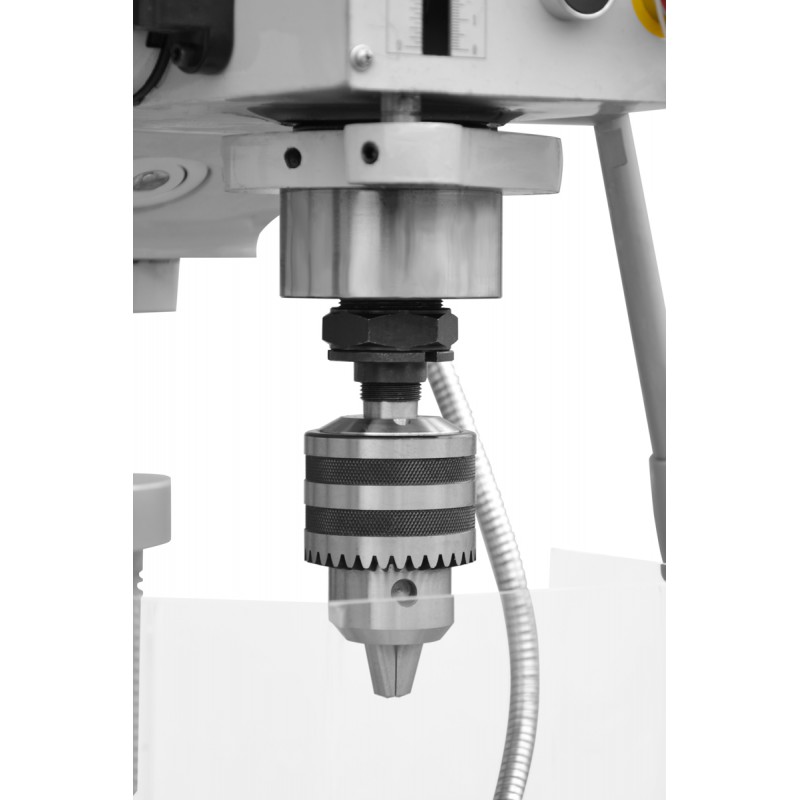

The CORMAK WS32GP column drill is constructed from premium-grade components. The headstock, column, table and base are made of seasoned cast iron to resist vibration and deformation. The MK3 spindle and gearbox components are made of hardened, heat-treated steel, providing high durability and machining precision. The clear control panel and ergonomic lever ensure intuitive operation, even during long shifts. The integrated LED work lamp enhances visibility in low-light areas.

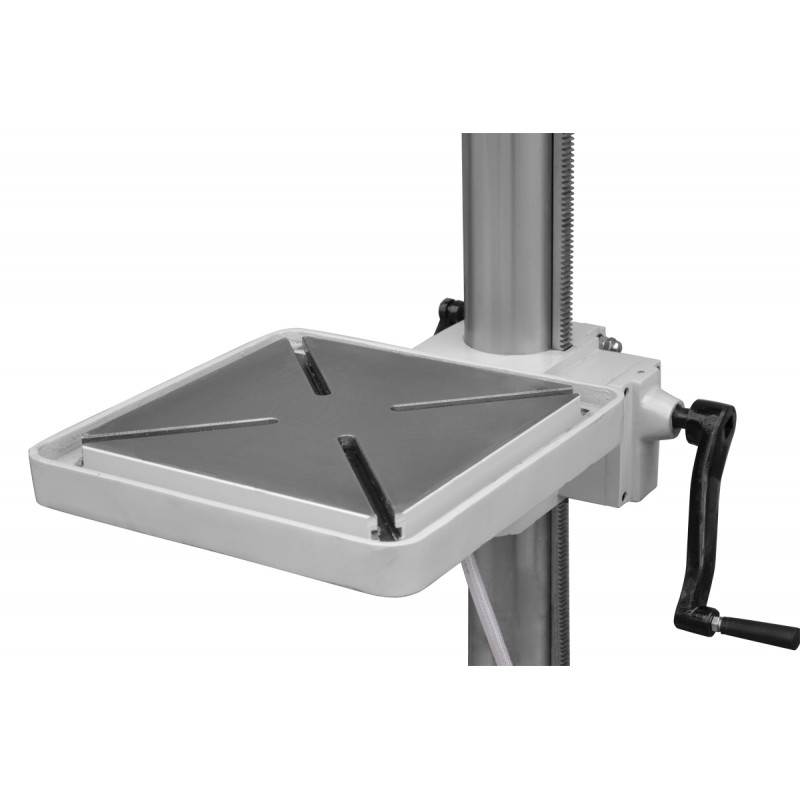

With a 150 mm spindle stroke and a rigid frame, the CORMAK WS32GP pillar drill for metal ensures dimensional accuracy and repeatability. Smooth motor operation and a precisely engineered gearbox enable effortless drilling and threading. The large table lift range (820 mm) and maximum spindle-to-base distance of 1235 mm make it suitable for both small and large workpieces.
The CORMAK WS32GP is a heavy-duty industrial drill dedicated to:
| Parameter | Value |
|---|---|
| Maximum drilling diameter (steel) | 32 mm |
| Maximum tapping diameter (steel) | M20 |
| Column diameter | 100 mm |
| Column wall thickness | 12.7 mm |
| Spindle travel | 150 mm |
| Distance spindle–column | 265 mm |
| Table lift range | 820 mm |
| Table rotation | 360° |
| Maximum distance spindle–base | 1235 mm |
| Spindle taper | MK3 |
| Spindle speed range | 140–1960 rpm |
| Number of speeds | 8 |
| Table dimensions | 380 × 400 mm |
| Base dimensions | 380 × 400 mm |
| Machine height | 1900 mm |
| Motor power | 1.5 kW |
| Power supply | 400 V |
| Net weight | 310 kg |
| Packing dimensions | 1040 × 640 × 2050 mm |
The CORMAK WS32GP column drill for metal is a solution for demanding professionals who expect reliability, precision and functionality in one machine. Order now from cormak.pl and boost your workshop’s performance and productivity.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
