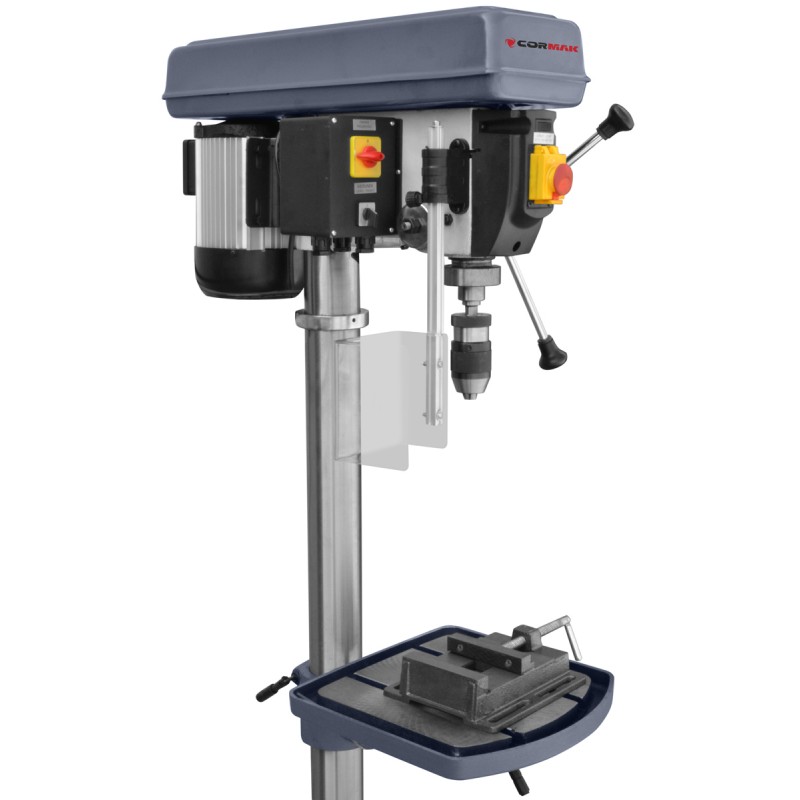

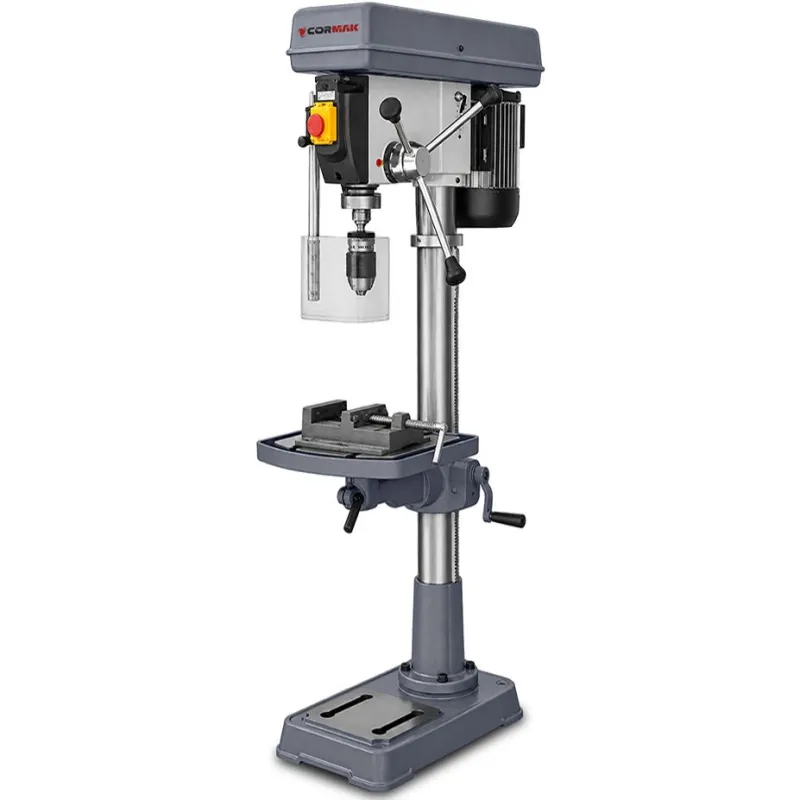

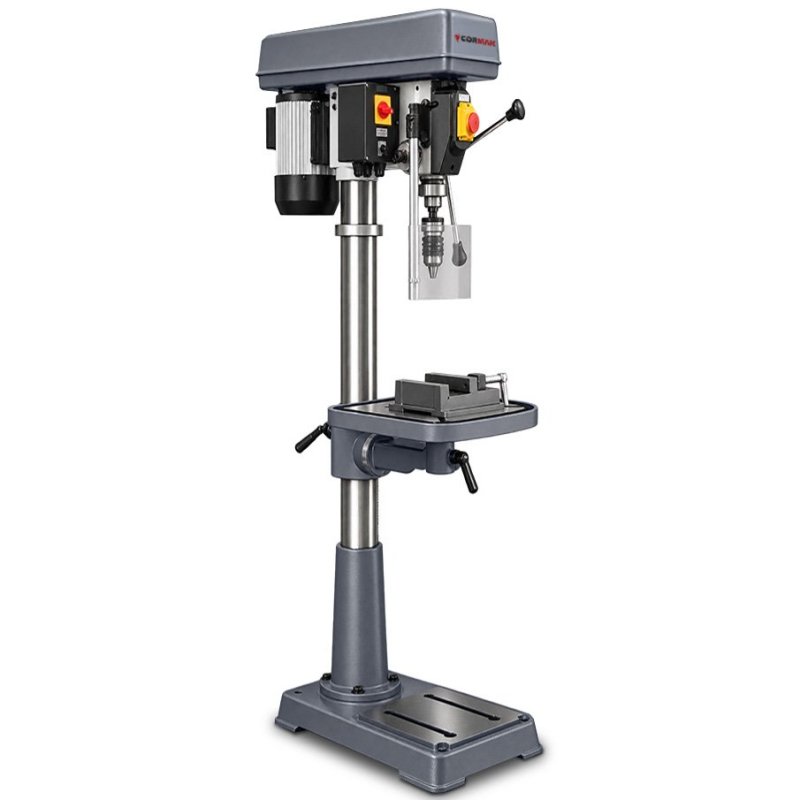

The CORMAK 25 pillar drilling machine is a highly efficient column drill, factory-fitted with a powerful two-speed 1,000 W motor featuring right- and left-hand rotation. Its robust design ensures precise operation. The worktable height is adjustable via a rack-and-pinion system and can tilt 0–45° to both sides. Supplied with a 123 mm vice and drill chuck.
The CORMAK 25mm pillar drilling machine is a professional column drilling machine for metal designed for intensive use in production facilities, locksmith workshops and technical service departments. With its sturdy construction, precise spindle guidance and wide speed range, this unit ensures efficient and safe operation even in demanding industrial environments.
The CORMAK 25mm pillar drilling machine features a strong steel column and cast-iron base and table. The spindle is mounted on precision bearings, enabling accurate drilling. The MK3 taper chuck provides wide tool compatibility. The machine is equipped with a two-speed asynchronous motor and multi-step belt transmission, giving the operator precise control over cutting speed depending on the material and tool used.
The 80 mm spindle stroke allows deep drilling without repositioning the workpiece. The large clearance between spindle and table (640 mm) and between spindle and base (1,136 mm) makes it suitable for both small and large components. The reversible spindle direction enables tapping operations. Adjustable table height and tilting capability offer versatility and comfort when working with different workpiece sizes.
The CORMAK 25mm is a pillar drilling machine ideal for:
| Parameter | Value |
|---|---|
| Maximum drilling capacity | 25 mm |
| Chuck capacity | 16 mm |
| Spindle taper | MK3 |
| Distance spindle–column | 216 mm |
| Maximum spindle travel | 80 mm |
| Distance table–spindle | 640 mm |
| Distance base–spindle | 1,136 mm |
| Table dimensions | 355 × 355 mm |
| Column diameter | 92 mm |
| Motor / Power supply | 1,000 W / 400 V |
| Spindle speed range | 80–3,000 rpm |
| Overall dimensions | 1,635 × 642 × 356 mm |
| Net weight | 85 kg |
The CORMAK 25mm pillar drilling machine is a reliable tool for demanding industrial use. Deliver the precision your workshop deserves with CORMAK quality.
▶
