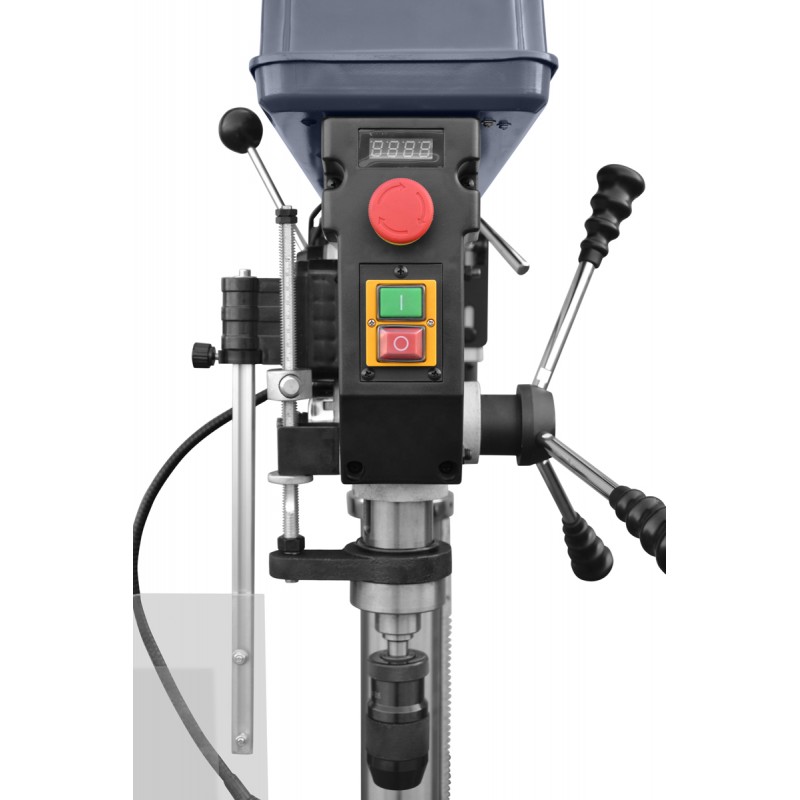

Column Drill for Metal CORMAK Z5020 VARIO 230V Variable-Speed

Column drill for metal CORMAK Z5020 Vario 230V – precision column drilling machine with continuously variable speed control

The CORMAK Z5020 Vario 230V column drill is a modern column drilling machine for metalworking, designed for professional workshop and industrial applications. With continuously variable speed control, a wide machining range and a stable construction, it is ideally suited to demanding drilling operations.

Key advantages of the CORMAK Z5020 Vario column drill

• Continuously variable spindle speed control from 180–2,000rpm – allows precise adjustment to suit the material being drilled.
• Solid 80mm-diameter column – high rigidity ensures stability during drilling.
• Tilting worktable from -45° to +45° – provides greater flexibility when machining workpieces at an angle.
• Drilling depth stop with scale – ensures repeatable drilling results.
• Integrated LED light – improves visibility of the working area.
• T-slots in the table and base – allow secure mounting of vices and fixtures.

Construction and technology

The CORMAK Z5020 Vario column drill is built from durable cast iron components, significantly improving its durability and resistance to vibration. The spindle with an MK3 taper and 150mm travel allows deep holes to be drilled. The belt-driven transmission ensures reliable and quiet operation. The worktable's vertical tilting range and 600mm of height adjustment allow workpieces of various sizes to be handled.

Precision and working efficiency

The 1,100W motor (230V / 50Hz), combined with continuously variable spindle speed control, enables efficient machining of a wide range of metal materials. Precise feed and ergonomic controls ensure operator comfort, even during extended periods of use. The machine has a maximum drilling diameter of 25mm, making it a versatile solution for many applications.

Applications

The Z5020 Vario 230V model is a column drill for metalworking, ideal for use in:

• metalworking workshops,
• manufacturing facilities,
• maintenance departments,
• technical schools and training centres.

Standard equipment

• LED light
• Drilling depth stop
• Tilting table with T-slots
• Base with T-slots
• Continuously variable spindle speed control

Technical specifications

Choose precision and durability – choose CORMAK Z5020 Vario

The CORMAK Z5020 Vario 230V metalworking column drill is a tool for professionals who demand the highest quality, stability and functionality. Order online at cormak.uk and upgrade your machinery today!
