The WS16 bench drilling machine with a reinforced structure is a general-purpose model designed for operations such as drilling, reaming, countersinking and tapping (using special holders for threading tools). These drills allow drilling and tapping with multi-spindle holders. The machine stands out for its high performance, precision, low noise level, wide range of spindle speeds, centralised control panel for convenient operation, and user-friendly design.

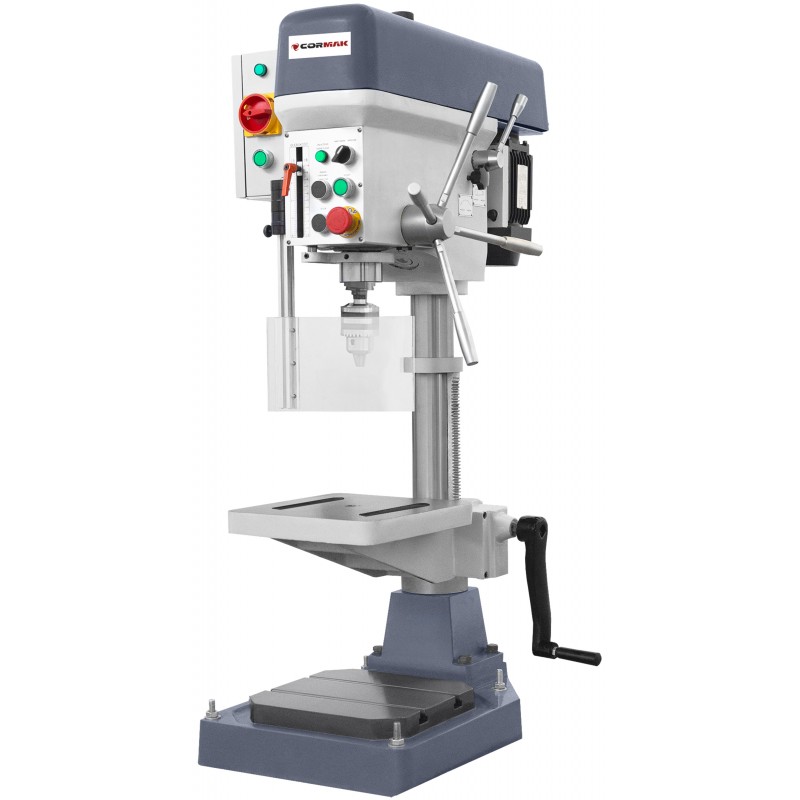

The CORMAK WS16 bench drill is a compact yet exceptionally robust column drill for metal, designed for precise drilling and tapping operations in workshop and production conditions. Thanks to automatic spindle rotation reversal, the machine enables efficient thread cutting in steel, making it an excellent choice for users who value efficiency and machining quality.

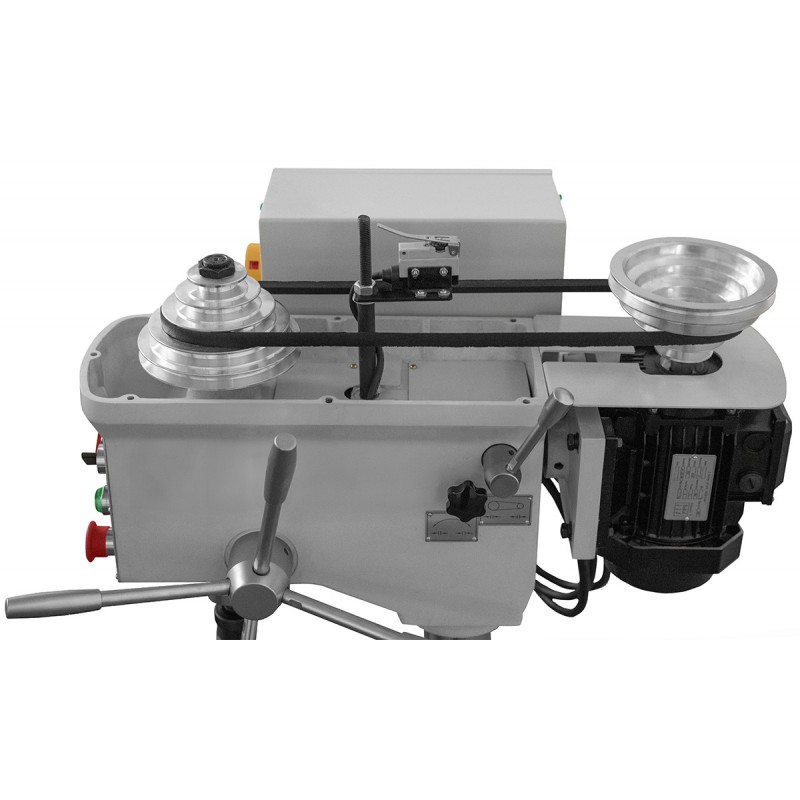

The CORMAK WS16 bench drill is designed with durability and rigidity in mind. The spindle head, column, base and table are made from high-quality seasoned castings, ensuring exceptional stiffness throughout the structure. The spindle and gear shafts are made of hardened, heat-treated steel to minimise wear during extended use. The drive system is based on a belt transmission, known for its quiet and stable operation.
With a 5-step spindle speed adjustment ranging from 480 to 1875 rpm and a Morse taper MK2, the machine enables optimal speed selection depending on the material and drilling diameter. The maximum drilling diameter in steel is 16 mm, while tapping is possible up to M10. The clear control panel and spindle rotation reversal greatly improve handling and increase process efficiency.
The CORMAK WS16 column drill is ideal for:
| Parameter | Value |
|---|---|
| Maximum drilling diameter (steel) | 16 mm |
| Maximum tapping diameter (steel) | M10 |
| Column diameter | 70 mm |
| Column wall thickness | 12.7 mm |
| Spindle travel | 100 mm |
| Distance spindle–column | 193 mm |
| Distance spindle–table (max) | 330 mm |
| Distance spindle–base (max) | 613 mm |
| Spindle taper | MK2 |
| Spindle speed range | 480–1875 rpm |
| Number of speeds | 5 |
| Table dimensions | 265 × 285 mm |
| Base dimensions | 360 × 480 mm |
| Machine height | 1130 mm |
| Motor power | 1.1 kW |
| Power supply | 400 V |
| Net weight | 131.5 kg |
| Machine dimensions | 600 × 400 × 1150 mm |
The CORMAK WS16 bench drill combines compact construction, high rigidity and practical functions for efficient drilling and tapping. It is the optimal choice for professionals who value precision, durability and safety at work.
Order today or contact our technical consultant – we will help you choose the right configuration for your production needs.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
