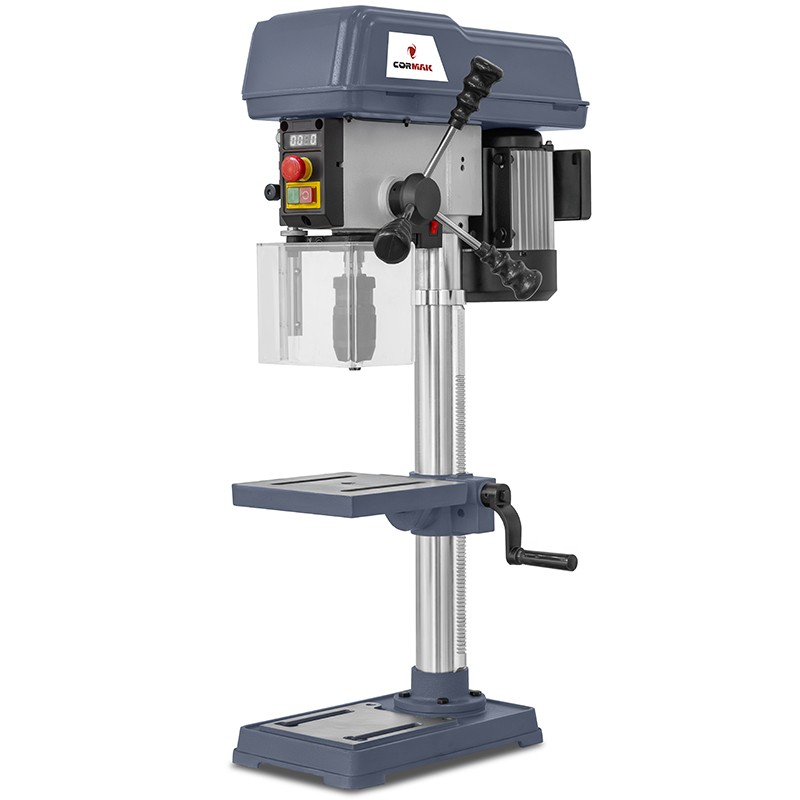

Bench Drill for Metal CORMAK Z7016A Vario

The CORMAK Z7016A Vario bench drilling machine is a compact and practical column drilling machine for metal, designed for precision drilling operations in both professional and workshop environments. With stepless speed control, a durable cast-iron structure and extensive features, this model ensures maximum drilling control and excellent work efficiency.

Main advantages of the machine

• Stepless speed control – 440–2,600 rpm range allows optimal adjustment to the machined material.
• Solid cast-iron construction – ensures high rigidity and reduces vibration during operation.

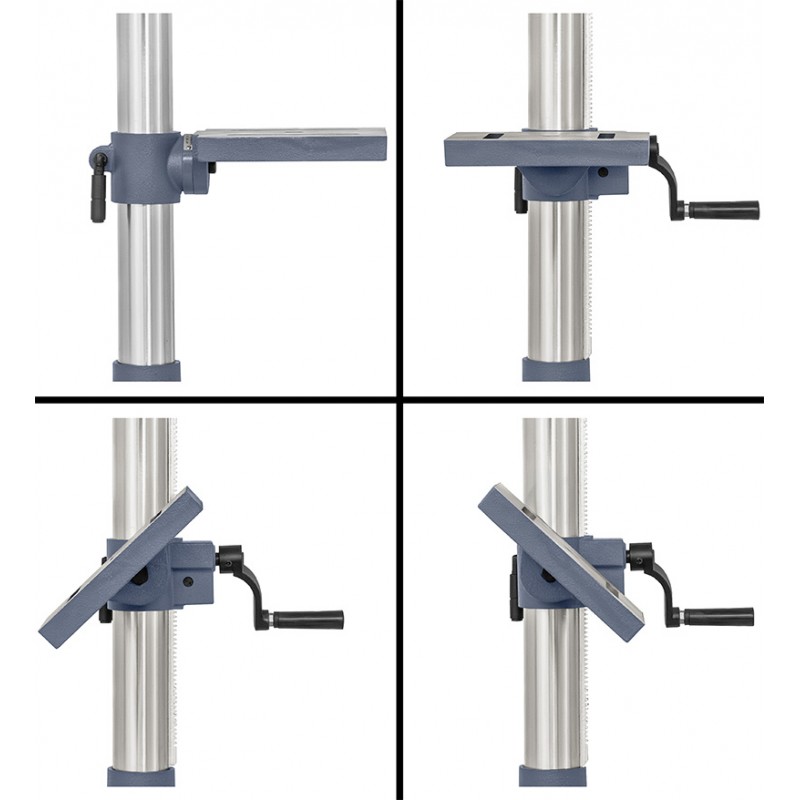

• Worktable with adjustable height and tilt – tilts from -45° to +45° and height-adjusted via rack and pinion mechanism.
• Laser guide and LED lighting – provide maximum drilling accuracy and operator comfort.
• Electronic speed display – enables full real-time control of drilling parameters.
• 65 mm vice included – ready for immediate use straight out of the box.

Construction and technology

The CORMAK Z7016A Vario bench drilling machine for metal is built on a sturdy 60 mm column and a solid cast-iron base measuring 345 × 210 mm. The machine body and worktable are made from precision-machined castings. The Morse taper MK2 accommodates a wide range of tools, while the spindle travel of 60 mm allows machining of deeper holes. With an overall height of just 870 mm, it is an ergonomic and highly mobile machine.

Precision and performance

Equipped with a 500 W (S1) / 650 W (S6) motor, the CORMAK Z7016A Vario bench drilling machine enables efficient drilling in metal up to 16 mm in diameter. The stepless variable speed system eliminates the need for gear changes, significantly reducing setup time. The ergonomic three-spoke feed lever, depth gauge and spindle guidance system ensure high repeatability and precision of drilled holes.

Applications

The Z7016A Vario model is a bench drilling machine for metal recommended for:

• locksmith and service workshops,
• maintenance departments,
• technical schools,
• small production lines and prototype workshops.

Standard equipment

• 65 mm vice
• Laser drilling guide
• LED workspace lighting
• Electronic speed display
• Three-spoke feed handle
• Tilt-adjustable table with rack height adjustment

Technical data

Choose professional performance – choose CORMAK Z7016A Vario

The CORMAK Z7016A Vario bench drilling machine is the perfect tool for workshops that demand precision, reliability and comfort. Order online or contact our technical advisor to boost your workshop’s capabilities today!
