The WS20 bench drilling machine with a reinforced structure is a general-purpose model designed for drilling, reaming, countersinking and tapping (using special holders for threading tools). The drills enable drilling and tapping with multi-spindle heads. The machine stands out for its high performance, precision, low noise level, wide spindle speed range, centralised control panel for convenient operation and user-friendly design.

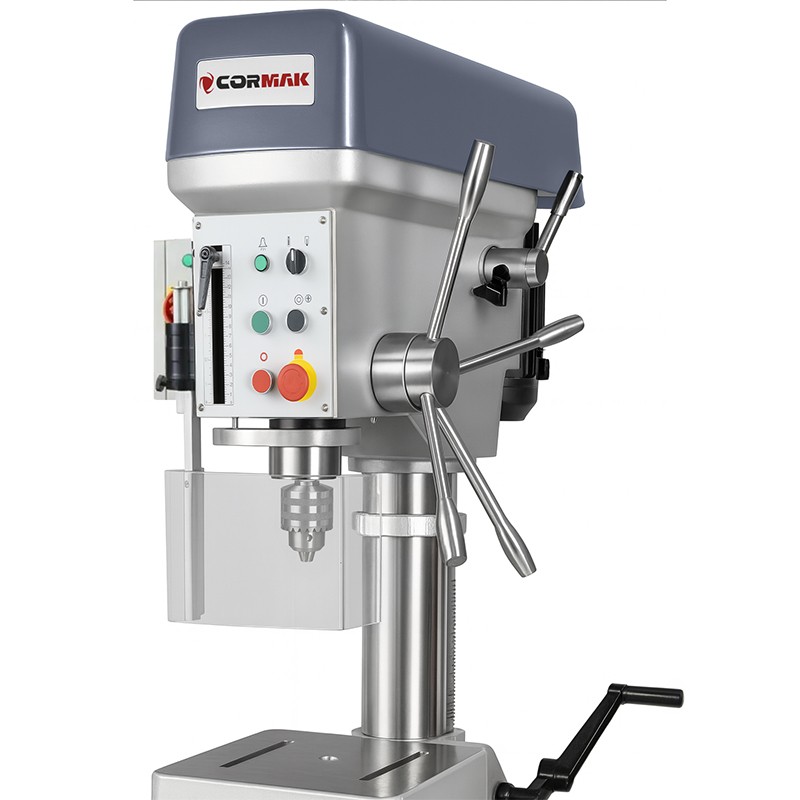

The CORMAK WS20 bench drill is a professional column drill for metal designed for drilling and tapping in industrial environments. With its robust construction, long spindle stroke and automatic tapping function, the machine delivers excellent performance and precision when machining metals, particularly structural steel.
The CORMAK WS20 bench drill for metal is built using high-grade materials. The spindle and transmission shafts are made of hardened steel for superior wear resistance. The headstock, column and table are made from precision-machined, seasoned castings to ensure excellent rigidity throughout the entire structure. The Morse taper MK2 spindle allows quick tool changes and compatibility with a wide range of drilling accessories.

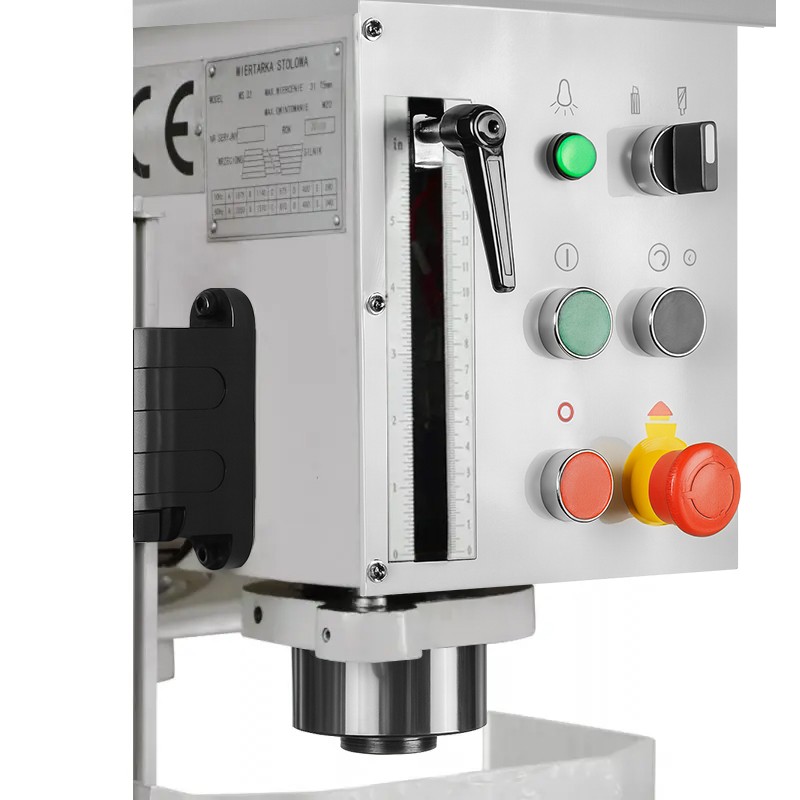

Thanks to its rigid column, long spindle stroke and carefully engineered transmission, the machine guarantees precise and repeatable drilling and threading. The clear control panel improves ease of operation, while the powerful 1.1 kW motor enables efficient work even with tough materials.
The CORMAK WS20 column drill is ideal for:
The machine is designed for drilling and tapping in steel, aluminium and non-ferrous materials.
| Parameter | Value |
|---|---|
| Maximum drilling diameter (steel) | 20 mm |
| Maximum tapping diameter (steel) | M16 |
| Spindle travel | 135 mm |
| Spindle taper | MK2 |
| Spindle speed range | 280 – 1875 rpm |
| Number of speeds | 5 |
| Column diameter | 85 mm |
| Column wall thickness | 12.7 mm |
| Distance spindle–column | 260 mm |
| Distance spindle–table | 366 mm |
| Distance spindle–base | 678 mm |
| Table dimensions | 300 × 320 mm |
| Base dimensions | 376 × 566 mm |
| Motor power | 1.1 kW |
| Power supply | 400 V |
| Net weight | 179 kg |
| Machine dimensions | 800 × 450 × 1250 mm |
The CORMAK WS20 bench drill for metal is an investment in precision, durability and safety. Contact our sales department or order online today to enhance your workshop’s capabilities!
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
