The WS20B bench drilling machine with a reinforced structure is a general-purpose model designed for drilling, reaming, countersinking and tapping (using special holders for threading tools). MODEL EQUIPPED WITH AUTOFEED. The drills allow drilling and tapping with multi-spindle heads. The machine stands out for its high performance, precision, low noise level, wide range of spindle speeds, centralised control panel for convenient operation and easy handling.

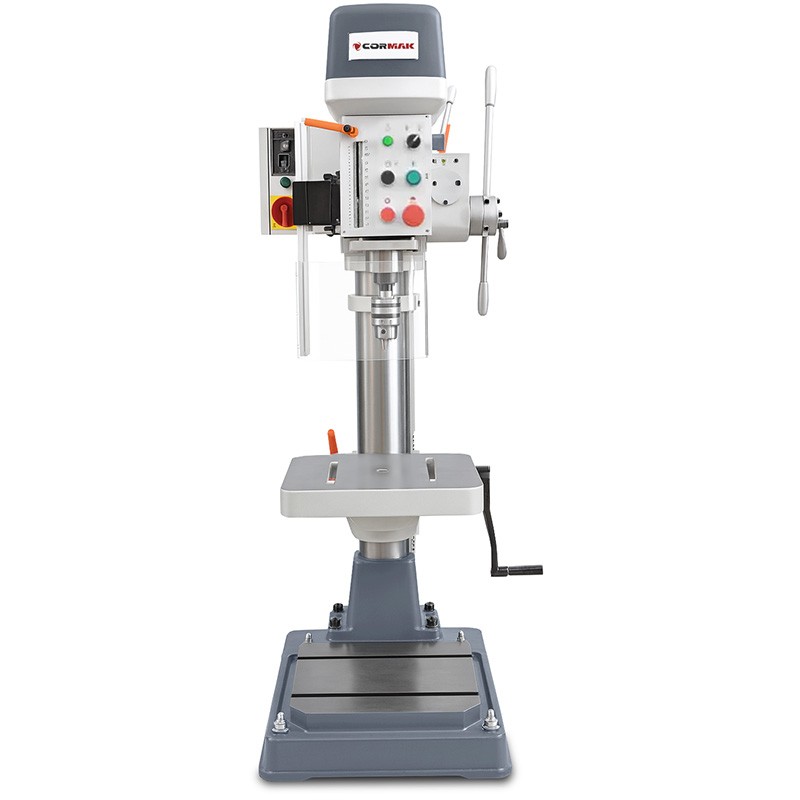

The CORMAK WS20B bench drilling machine is an advanced column drilling machine for metal equipped with a spindle autofeed, designed for precise drilling and tapping in structural steel and other metals. With its thoughtful design, high power and precise feed control, the WS20B model ensures excellent performance for both industrial and workshop applications.
The CORMAK WS20B bench drilling machine with autofeed is built for long-lasting and reliable performance. The spindle and transmission components are made from hardened and heat-treated steel. The column, base and worktable are precision-machined from seasoned cast iron, ensuring strength and rigidity. The Morse taper MK2 allows quick tool changes and compatibility with a wide range of accessories.
The combination of autofeed functionality and a powerful 1.1 kW motor enables smooth, consistent drilling even in difficult-to-machine materials. The stable design and 360° rotatable worktable improve operator comfort and flexibility when positioning components.
The CORMAK WS20B bench drilling machine with autofeed is ideal for:
Designed for drilling, reaming and tapping of metals, aluminium and engineering plastics.
| Parameter | Value |
|---|---|
| Maximum drilling capacity (steel) | 20 mm |
| Maximum tapping capacity (steel) | M16 |
| Spindle stroke | 135 mm |
| Spindle taper | MK2 |
| Spindle speed range | 280–1,875 rpm |
| Number of speeds | 5 |
| Feed rate range | 0–80 mm/min |
| Column diameter | 85 mm |
| Distance spindle–column | 260 mm |
| Distance spindle–table | 366 mm |
| Distance spindle–base | 678 mm |
| Table dimensions | 300 × 320 mm |
| Base dimensions | 376 × 566 mm |
| Motor power | 1.1 kW |
| Power supply | 400 V |
| Net weight | 179 kg |
| Machine dimensions | 800 × 450 × 1,250 mm |
The CORMAK WS20B bench drilling machine with autofeed is the perfect solution for production facilities and workshops requiring high precision and performance. Contact us or place your order directly online!
