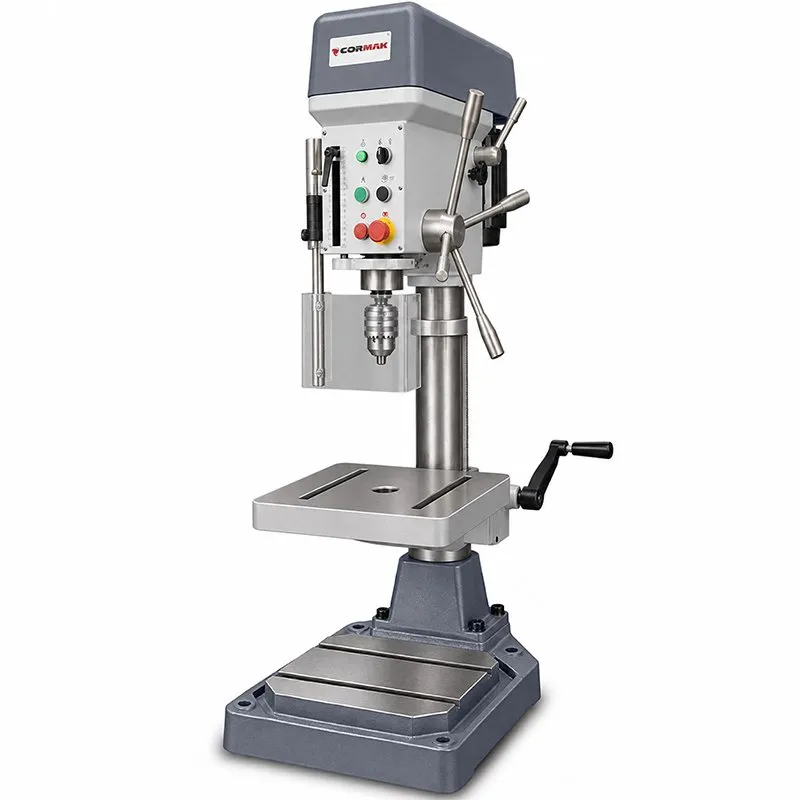

The CORMAK WS32 bench drilling machine is a robust tool with high spindle rigidity. It features automatic spindle reverse, long spindle travel and a clear control panel. Built from top-quality seasoned castings, it offers a powerful motor and CE certification. The maximum drilling capacity in steel is 32 mm, and the maximum tapping capacity is M24. Equipped with an MK3 spindle taper, it ensures stability and quick tool changes. Ideal for both professional and hobby use.
The CORMAK WS32 bench drill is a sturdy and precise column drill for metal, designed for intensive operation in industrial and workshop environments. With high rigidity, an impressive spindle stroke, and the ability to tap up to M24, this machine is a universal tool for a wide range of machining applications.
The CORMAK WS32 bench drill is made from high-quality seasoned cast iron, ensuring long-term durability and machining precision. The hardened spindle and gear shafts are resistant to wear, even during prolonged use. The intuitive control panel and ergonomic design contribute to operator comfort and productivity.
The WS32 model, with its massive structure and long spindle stroke, guarantees stable operation even in demanding applications. The ability to tap up to M24 makes it ideal for machining heavy steel components. Smooth spindle operation and flexible speed range increase overall drilling and tapping performance.
The CORMAK WS32 column drill is suitable for:
The machine enables precise drilling, reaming and tapping in steel, cast iron and non-ferrous metals.
| Parameter | Value |
|---|---|
| Maximum drilling diameter (steel) | 32 mm |
| Maximum tapping diameter (steel) | M24 |
| Column diameter | 100 mm |
| Column wall thickness | 12.7 mm |
| Spindle travel | 150 mm |
| Distance spindle–column | 265 mm |
| Distance spindle–table | 390 mm |
| Distance spindle–base | 745 mm |
| Spindle taper | MK3 |
| Spindle speed range | 280, 400, 675, 1140, 1875 rpm |
| Number of speeds | 5 |
| Table dimensions | 380 × 400 mm |
| Base dimensions | 645 × 470 mm |
| Machine height | 1370 mm |
| Motor power | 1.1 kW |
| Power supply | 400 V |
| Net weight | 230 kg |
| Overall dimensions | 900 × 500 × 1400 mm |
The CORMAK WS32 bench drill for metal is the perfect choice for professionals seeking performance, durability and accuracy in daily metalworking. Order online or contact our sales consultant!
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
