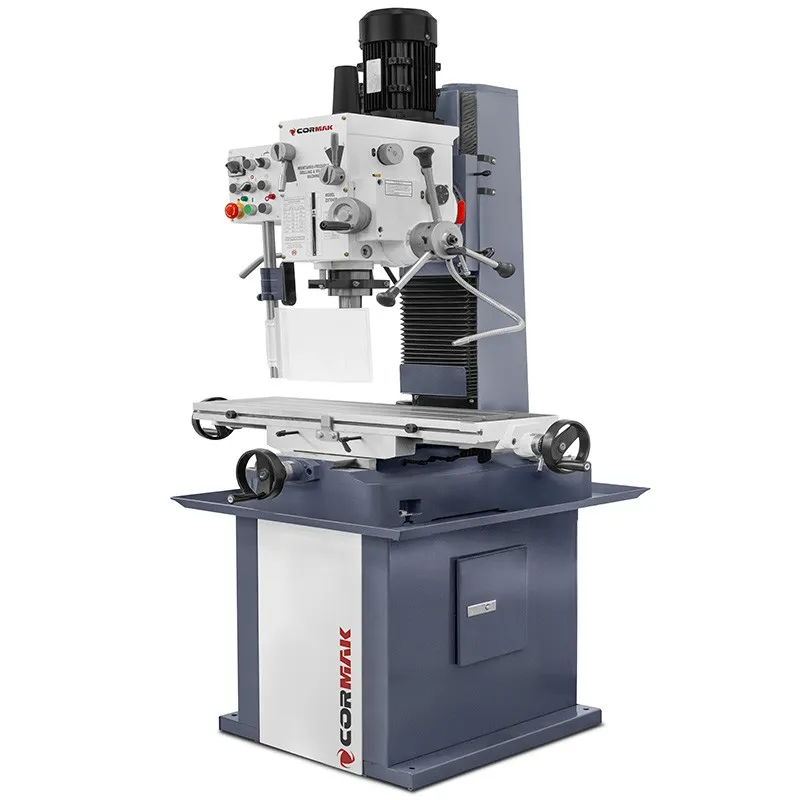

Our ZX7045 B1 drilling–milling machine with a powerful 1.8kW motor is designed for drilling, tapping, reaming, boring and enlarging holes up to 45/40mm in cast iron, as well as tapping up to M24. The ZX7045 B1 comes standard with automatic spindle feed and an efficient coolant system, providing high performance and suitable operating conditions. With milling capacity up to 80mm wide, slot milling up to 22mm, and the ability to cut and face mill, this drilling–milling machine is a versatile tool for a wide range of applications.
| DRILLING CAPACITY IN STEEL | 32mm |
| DRILLING CAPACITY IN CAST IRON | 45mm |
| FACE MILL DIAMETER | 80mm |
| END MILL DIAMETER | 28mm |
| SPINDLE SPEED | 50, 95, 100, 180, 190, 355, 360, 655, 710, 1,260, 1,310, 2,520, 3,200rpm (6/12) |
| SPINDLE TAPER | MT 4 |
| SPINDLE FEED | 125mm (AUTOMATIC FEED) |
| WORK TABLE DIMENSIONS | 820mm x 240mm |
| BASE DIMENSIONS | 580 x 600mm |
| MAX. SPINDLE-TO-TABLE DISTANCE | 445mm |
| DISTANCE FROM SPINDLE TO COLUMN SURFACE | 260mm |
| X/Y/Z AXIS TRAVEL | 515/175/430mm |
| QUILL FEED RATE | 0.12; 0.18; 0.25mm/rev. |

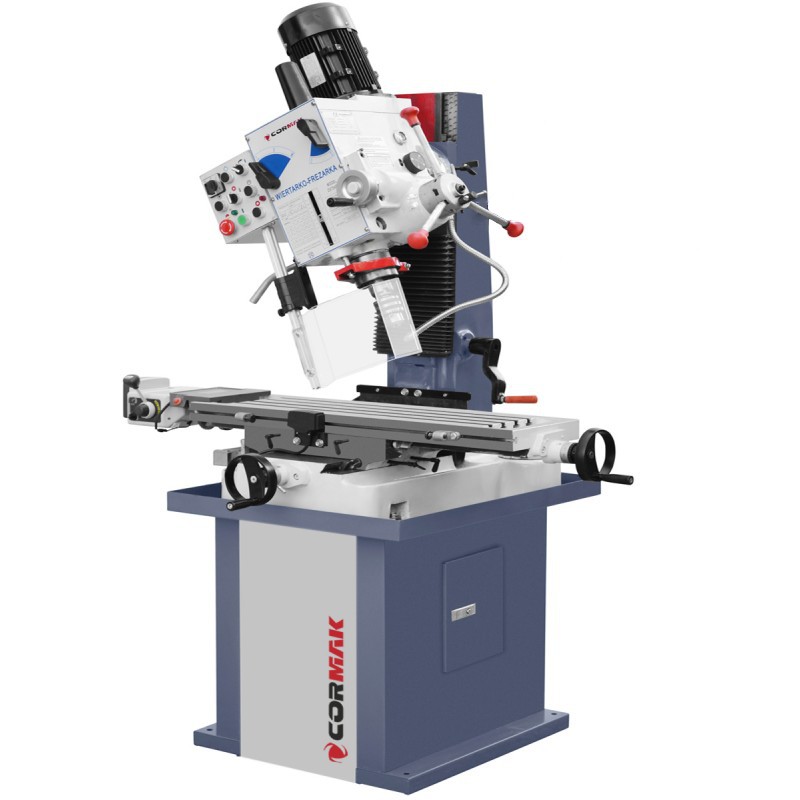

| HEAD TILT RIGHT/LEFT | 90° |
| MOTOR POWER | 1.8kW 2.5HP |
| POWER SUPPLY | 400V |
| WEIGHT | 350kg |
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
