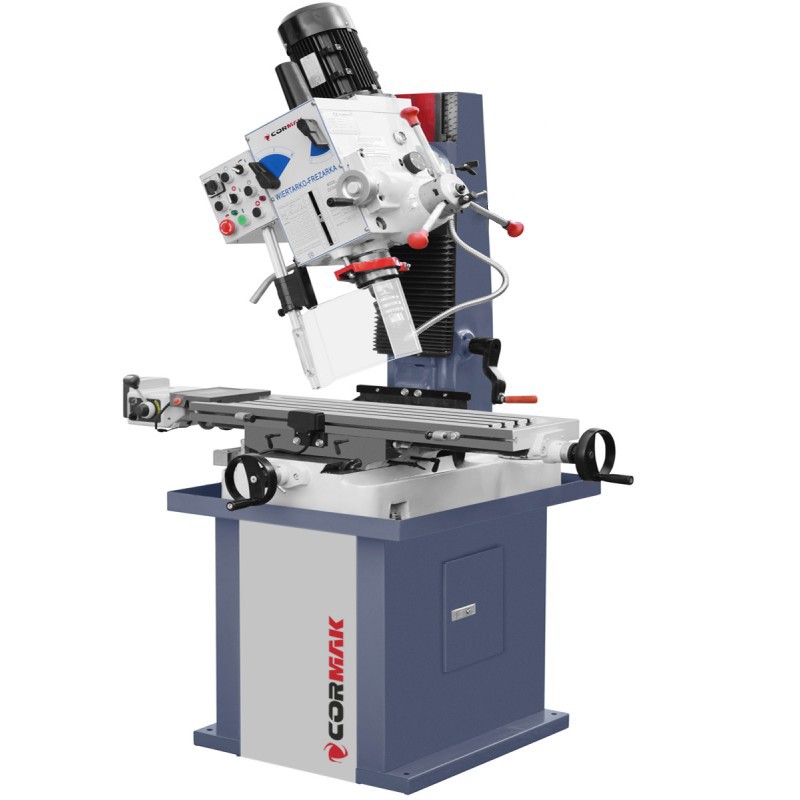

Our ZX7045 B1L drilling–milling machine with a powerful 1.8kW two-speed motor is designed for drilling, tapping, reaming, boring and enlarging holes up to 45/40 mm in cast iron, as well as tapping up to M24 mm. The ZX7045 B1L version is equipped as standard with automatic spindle feed and an efficient cooling system, ensuring not only excellent performance but also optimal working conditions. With milling capacity up to 80 mm, slotting up to 22 mm, and the ability to perform cutting and face milling operations, this machine becomes an indispensable tool in a wide range of applications.
ZX7045 B1L drilling and milling machine is a universal drill mill designed for precise metal machining in workshop and production environments. The machine combines drilling and milling functions, ensuring stable operation thanks to its heavy-duty cast iron construction and wide spindle speed range. It is a solution for facilities that expect repeatability, rigidity and genuine performance.
The ZX7045 B1L drilling and milling machine has been designed as a compact yet fully industrial metal milling machine. The massive base and cast iron body ensure high structural rigidity. The cross table with dimensions 1000 x 240 mm features a precision-ground working surface, enabling accurate clamping of workpieces.
The MT4 spindle taper as standard allows the use of a wide range of tooling – end mills, milling heads and taper shank drills. The 1.8kW (2.5HP) motor powered at 400 V ensures stable operation even at larger milling diameters.
With axis travels of X/Y/Z 560/190/430 mm, the drill mill enables a wide range of operations: drilling up to 32 mm in steel and 45 mm in castings, face milling up to 80 mm and end milling up to 28 mm. Adjustable quill feed rates (0.12; 0.18; 0.25 mm/rev.) allow parameters to be tailored to the material type and quality requirements.
This drilling and milling machine is used in toolrooms, metalworking workshops, maintenance departments and small to medium-sized production facilities. It is suitable for machining grooves, flat surfaces, precision drilling, countersinking and tapping using appropriate heads.
| DRILLING CAPACITY IN STEEL | 32 mm |
| DRILLING CAPACITY IN CAST IRON | 45 mm |
| FACE MILL DIAMETER | 80 mm |
| END MILL DIAMETER | 28 mm |
| SPINDLE SPEED | 95, 170, 190, 280, 340, 540, 570, 960, 1100, 1600, 1950, 3200 rpm (12) |
| SPINDLE TAPER | MT 4 |
| SPINDLE FEED | 125 mm (AUTOMATIC FEED) |
| WORKING TABLE DIMENSIONS | 1000 mm x 240 mm |
| BASE DIMENSIONS | 440 x 600 mm |
| MAX. DISTANCE SPINDLE TO TABLE | 445 mm |
| DISTANCE SPINDLE TO COLUMN SURFACE | 262.5 mm |
| X/Y/Z AXIS TRAVEL | 560/190/430 mm |
| QUILL FEED RATE | 0.12; 0.18; 0.25 mm/rev. |
| HEAD TILT RIGHT/LEFT | 90° |
| MOTOR POWER | 1.8kW 2.5HP |
| POWER SUPPLY | 400 V |
| WEIGHT | 375 kg |
ZX7045 B1L drilling and milling machine is a solid investment in efficient and precise machining. Contact our technical advisor to select a configuration tailored to your production requirements.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
