The CORMAK ZX50BPC is a robust drilling–milling machine for metalworking. The head and spindle can swivel ±90°, and the machine is equipped with automatic spindle feed, right and left spindle rotation, a large working table, and a coolant system. An optional automatic table feed in the X axis is available. The machine features a powerful dual-speed 1.5/2.2 kW motor, offering drilling capacity up to 40 mm and spindle speeds up to 3200 rpm.
CORMAK is a continuously developing brand, gaining more satisfied customers worldwide in both the woodworking and metalworking sectors.
| Max drilling capacity (steel/cast iron) | 32 / 40 mm |
| Face milling width | 80 mm |
| End milling width | 22 mm |
| Spindle travel | 125 mm |
| Spindle taper | MT4 |
| Number of speeds | 12 |
| Spindle speed (rpm) | 95–3200 rpm (95, 170, 190, 280, 340, 540, 570, 960, 1100, 1600, 1950, 3200) |
| Max distance spindle nose–table | 735 mm |
| Max distance spindle nose–base | 1245 mm |
| Distance spindle–column | 272 mm |

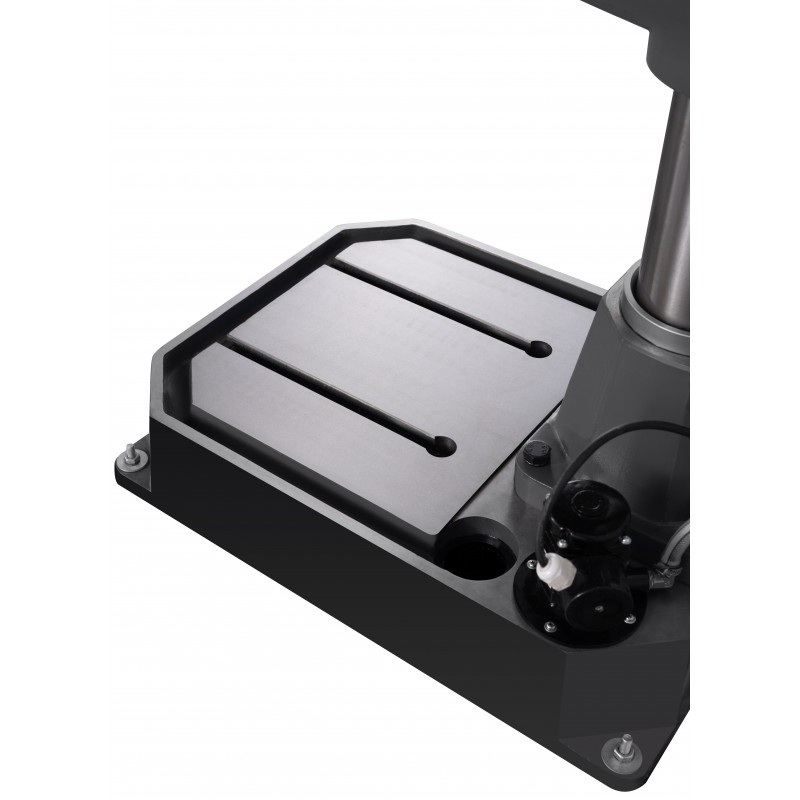

| Worktable size (upper) | 730 × 210 mm |
| Base dimensions | 690 × 520 mm |
| Motor power S1 | 1.5 / 2.0 HP (1.1 / 1.5 kW) |
| Motor power S6 | 2.25 / 3.0 HP (1.7 / 2.2 kW) |
| Coolant pump motor | 40 W |
| Machine dimensions (with base) | 1200 × 1000 × 1910 mm |
| Weight | 380 kg |
▶
