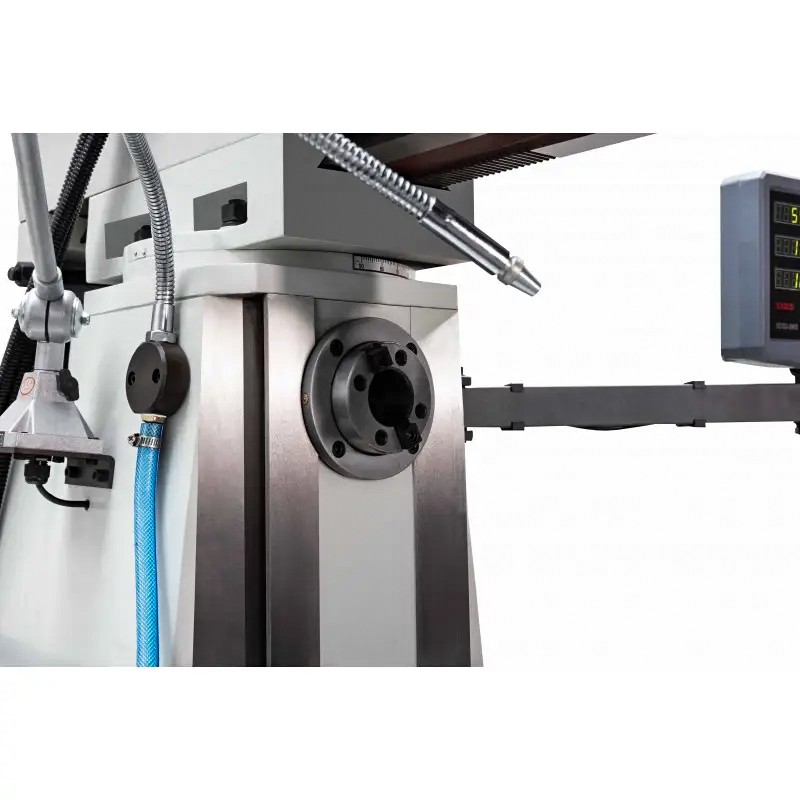

The XZ7550ZB Drilling–Milling Machine is a reliable and efficient tool designed for professional metalworking. This robust, straightforward machine guarantees continuous operation over long periods. Equipped with both a vertical head and a horizontal spindle, the XZ7550ZB offers broad machining capabilities. The ISO 40 tool holder ensures secure tool clamping, while the automatic spindle feed enhances efficiency. Working feeds in X and Y axes and a rapid setting feed in the Z axis provide precision, while the extendable vertical spindle facilitates access to the workpiece. The mechanical feed with three ranges and automatic tapping option add versatility. The vertical head swivels from 0–90°, and the extendable and rotatable upper beam increases functionality and machining precision.
The CORMAK ZX7550 ZB drilling and milling machine is an advanced industrial unit combining milling and drilling functions within one heavy, rigid cast-iron body. Its industrial-grade construction, high stiffness, and wide spindle speed range ensure reliable metalworking precision in production and workshop environments.
The CORMAK ZX7550 ZB is designed for rigidity and operational stability. It features a massive cross table (1,000×240 mm) with five T-slots ensuring firm clamping of workpieces. The ISO 40 spindle taper allows compatibility with a wide selection of cutting tools, while the option of vertical or horizontal operation enhances machine versatility.
Two high-power motors guarantee sufficient torque for heavy-duty milling operations, and the wide spindle speed range allows perfect adaptation to the processed material.
Automatic mechanical and electrical feeds enable constant and controlled movement speed, ensuring dimensional accuracy and excellent surface finish. A 120 mm spindle stroke and precision-ground guideways reduce play, allowing stable cutting even under heavy load.
The CORMAK ZX7550 ZB is ideal for tool rooms, maintenance departments, production plants, locksmith workshops, and service companies. It enables surface milling, deep drilling, boring, threading, and other specialist operations requiring high stability and repeatability.
| Max. drilling diameter | 50 mm |
| Max. horizontal milling diameter | 100 mm |
| Max. vertical milling diameter | 25 mm |
| Max. tapping diameter | M16 |
| Max. boring diameter | 120 mm |
| Spindle taper | ISO 40 |
| Spindle speed range | 72–1,800 rpm (vertical), 60–1,350 rpm (horizontal) |
| Spindle-to-column distance | 200–700 mm |
| Spindle-to-table distance | 100–480 mm |
| Spindle–table axis travel | 0–380 mm |
| T-slots | 5 / 14 mm / 44 mm |
| Spindle stroke | 120 mm |
| Table size | 1,000×240 mm |
| Table travel | 600×230 mm |
| Table feed | 24–720 mm/min (8 speeds) |
| Spindle feed | 0.015 / 0.08 / 0.25 mm/rev |
| Vertical spindle motor power S1/S6 | 2.2 / 2.8 kW |
| Horizontal spindle motor power S1/S6 | 2.2 / 2.8 kW |
| Dimensions | 1,120×1,060×2,035 mm |
| Weight | 970 kg |
If you are looking for a stable, precise, and versatile metalworking machine, the CORMAK ZX7550 ZB provides industrial-grade performance and accuracy. Contact us for an offer or to select suitable optional accessories.
