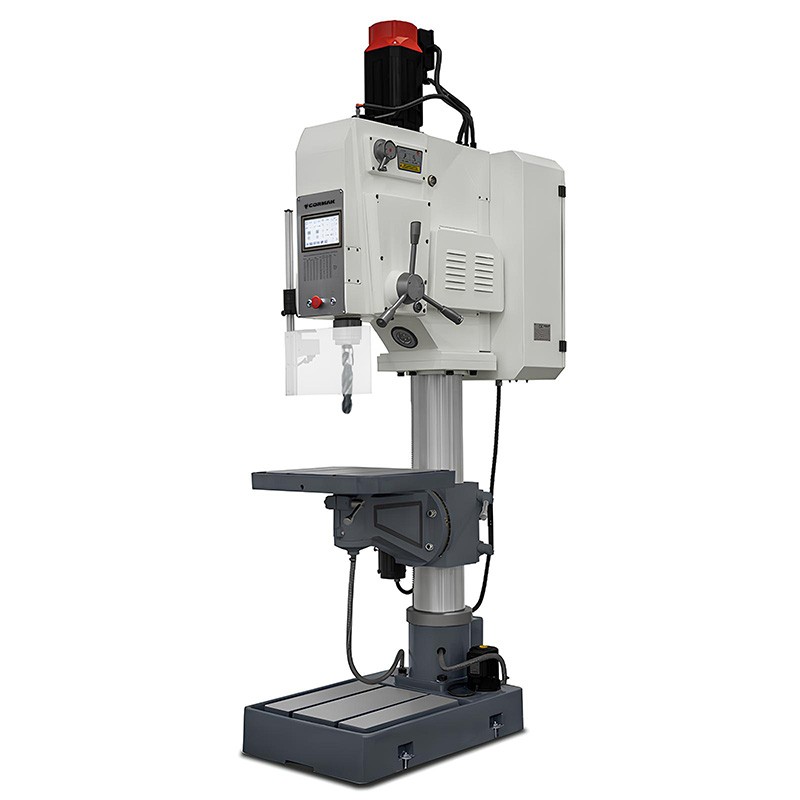

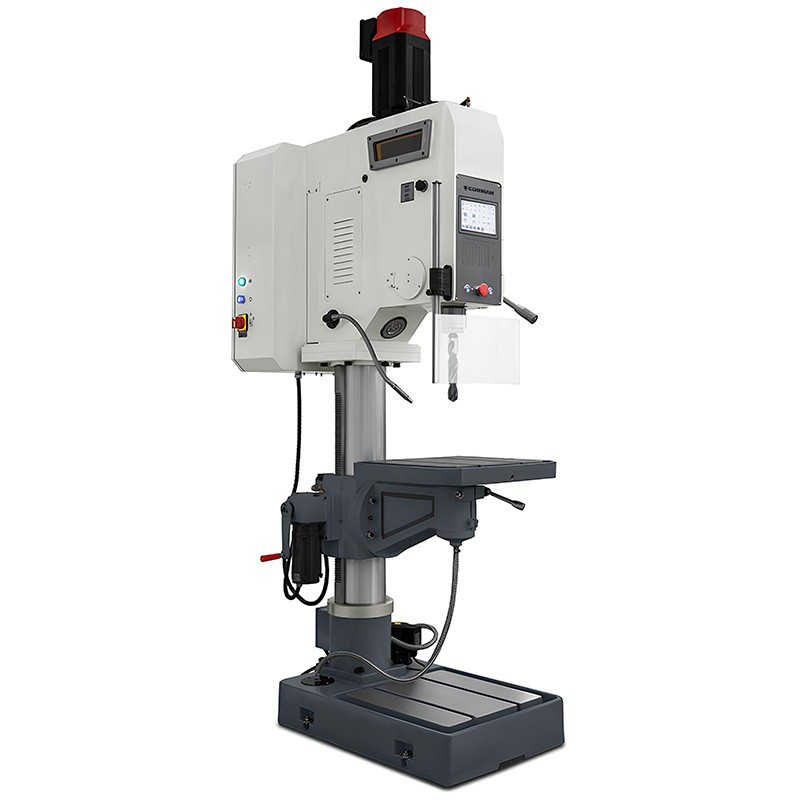

The CORMAK Z5050 AUTO column drill is an advanced industrial machine designed for precise metalworking in workshop and production environments. The control system monitors all key operating parameters, preventing settings that could cause overload or mechanical damage. This ensures not only safe operation, but also consistent process repeatability, high drilling and tapping accuracy, and reliability during intensive use.
The industrial CORMAK Z5050 AUTO drill is an advanced column drilling machine designed for professional metalworking in workshops and production facilities. The machine offers high precision drilling and tapping with reliable performance even under continuous load. The control system monitors operating parameters, preventing settings that could overload the mechanics — ensuring both safety and process stability.

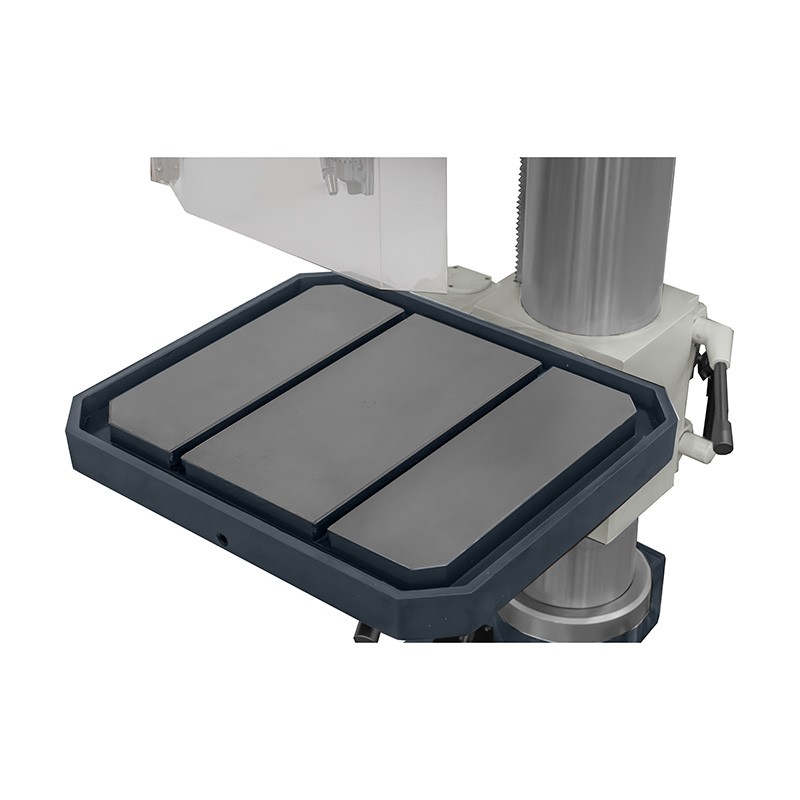

The CORMAK Z5050 AUTO column drill features a massive column and solid worktable, ensuring rigidity during drilling and tapping of heavy workpieces. The MK5 spindle taper operates with an automatic feed system, while the precise spindle guidance minimizes vibrations and deviations. The cooling system supports efficiency and safety during long-term operation.
Thanks to its stable construction, the CORMAK Z5050 AUTO column drill guarantees repeatability and consistent machining quality. The control system continuously monitors settings, preventing mechanical overload, while the automatic feed enables uniform feed during drilling and tapping. The high-quality drive and stepless gearbox provide smooth spindle speed adjustments between 50–2000 rpm.
The CORMAK Z5050 AUTO column drill is designed for professional mechanical and production facilities, including:
| Maximum drilling capacity | 50 mm |
| Drilling capacity in cast iron | 60 mm |
| Maximum tapping capacity | M30 |
| Drill chuck capacity | 3–16 / B18 mm |
| Spindle taper | MK5 |
| Minimum spindle speed | 50 rpm |
| Maximum spindle speed | 2000 rpm |
| Speed adjustment | Stepless (50–250 / 250–2000) |
| Drive transmission | Gear-driven |
| Automatic spindle feed range | 0–765 mm/rev |

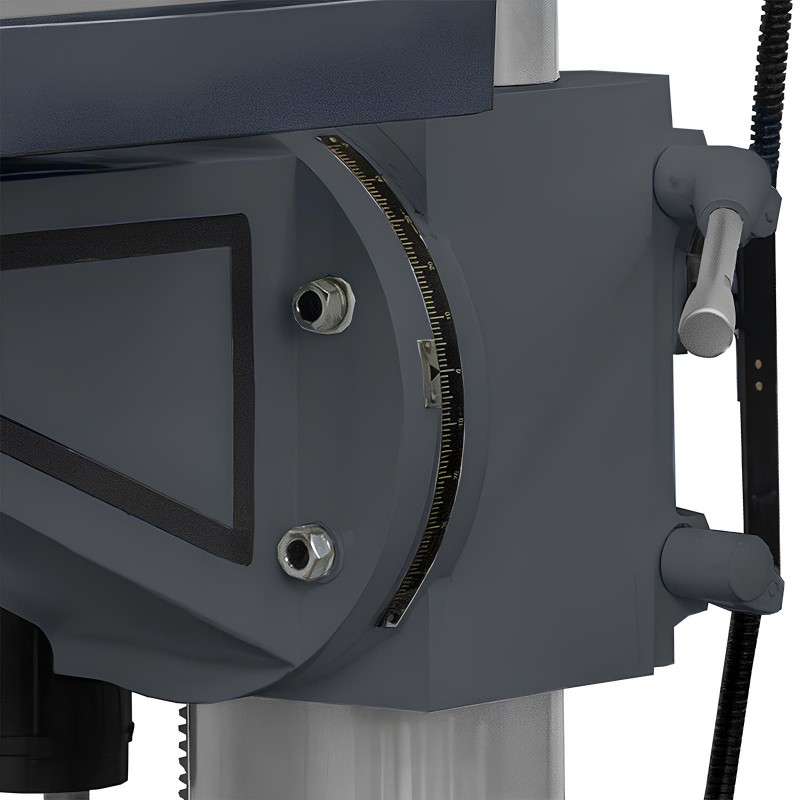

| Worktable tilt | −45° to +45° |
| Max. spindle-to-column distance | 360 mm |
| Max. spindle-to-table distance | 570 mm |
| Max. spindle-to-base distance | 1170 mm |
| Quill stroke | 245 mm |
| Column diameter | 180 mm |
| Table size – width | 545 mm |
| Table size – depth | 470 mm |
| T-slots | 14 mm |
| Main motor power S1 100% | 3.7 kW |
| Voltage | 400 V |
| Overall width | 700 mm |
| Overall depth | 1050 mm |
| Overall height | 2430 mm |
| Weight | 760 kg |
The CORMAK Z5050 AUTO column drill is the perfect choice for professionals who expect precision, efficiency, and full control over their machining process. Invest in a machine that increases productivity and ensures safety in your workshop.
