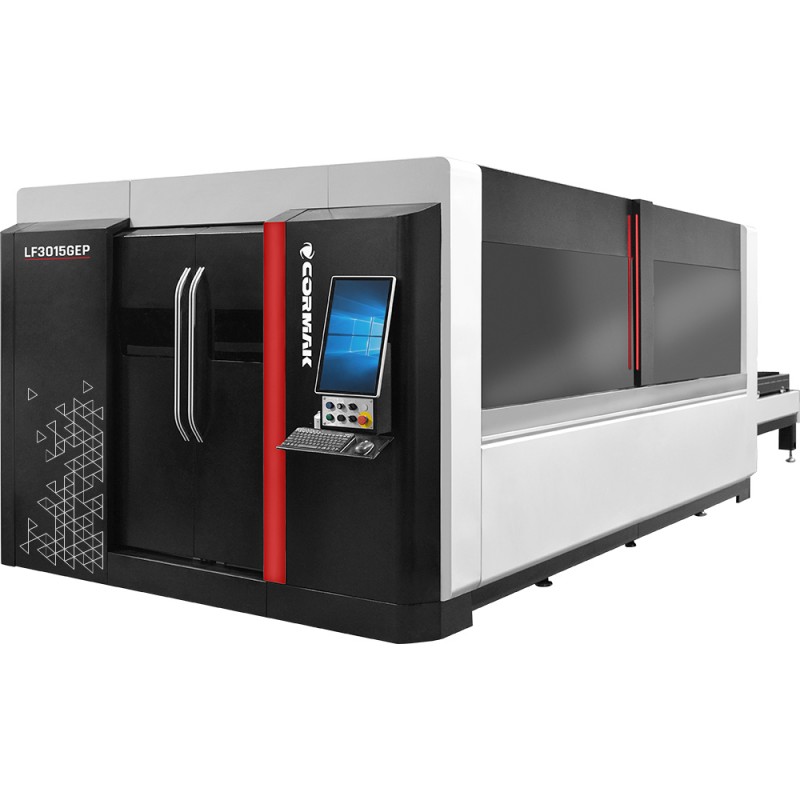

Fully enclosed, modern fibre laser cutter for sheet metal cutting. The enclosure with protective glass ensures complete protection against laser beam reflection, safeguarding the operator and all personnel in the workspace. Available with power options from 1000W to 12000W. The highest-quality components guarantee long-lasting, reliable operation of the fibre laser cutter.
Fibre laser cutting machines are modern devices offering numerous advantages. They are not only an excellent and far more economical alternative to CO2 technology but also feature many benefits that increase productivity (up to 70%) and enhance overall quality. FIBER technology allows cutting of sheets and other materials of various thicknesses, from very thin to very thick. The wavelength in a FIBER laser is 1.064 micrometres, producing an intensity 100 times greater than that of CO2 machines of comparable power.
The sliding gantry is made of aged aerospace aluminium formed under a 4,300-ton pressure, achieving exceptional rigidity. Aerospace aluminium provides high stiffness (greater than cast iron), low weight, resistance to corrosion and oxidation, and excellent machinability.
The exchangeable work table consists of upper and lower platforms whose movement and replacement are controlled by the system controller. The machine can complete a full platform exchange within 15 seconds.

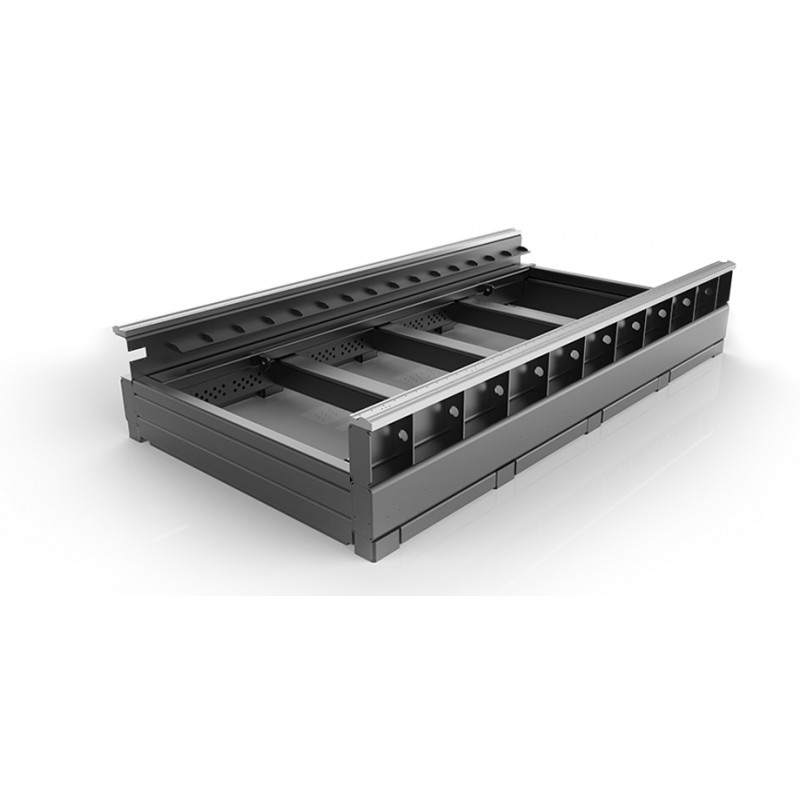

The bed structure features an internal honeycomb design made of numerous welded rectangular tubes. Reinforcements inside the tubes increase the bed’s strength, rigidity, and guide rail stability, effectively preventing deformation. High strength, stability and tensile resistance ensure 20 years of distortion-free operation.
| WORKING AREA | 1500x3000 |
| POWER | 12000W |
| REPEATABLE POSITIONING ACCURACY | ±0.02 mm/m |
| MAXIMUM SPEED | 120 m/min |
| MAXIMUM ACCELERATION | 1.5G |
| DIMENSIONS | 8850x2850x2310 |
| POWER SUPPLY | 400V 50Hz |
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
