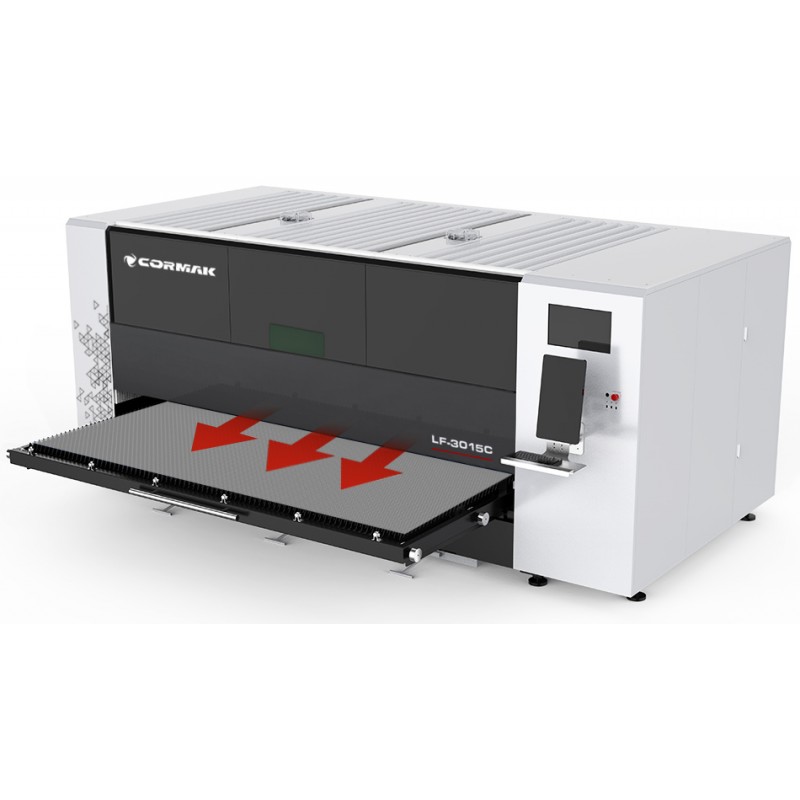

Modern, fully enclosed fibre laser cutter for cutting metal sheets up to 3000×1500 mm. The side-opening design ensures convenient loading of sheets onto the worktable. Thanks to its compact size, it is ideal for production halls with limited space, where larger laser systems with exchange tables cannot be installed.
Fibre laser cutters are modern machines distinguished by numerous advantages. They are not only an excellent and far more cost-effective alternative to CO2 technology but also offer many benefits that allow up to 70% production growth and improved quality. FIBER technology enables cutting of sheets and other materials of various thicknesses — from very thin to very thick. The wavelength of the FIBER laser is 1.064 µm, which provides an intensity 100 times higher than that of CO2 systems of comparable power.
The gantry structure is made of aged aerospace aluminium formed under 4300-ton pressure, ensuring exceptional rigidity. Aerospace aluminium offers many benefits: high stiffness (greater than cast iron), low weight, corrosion and oxidation resistance, and excellent machinability.

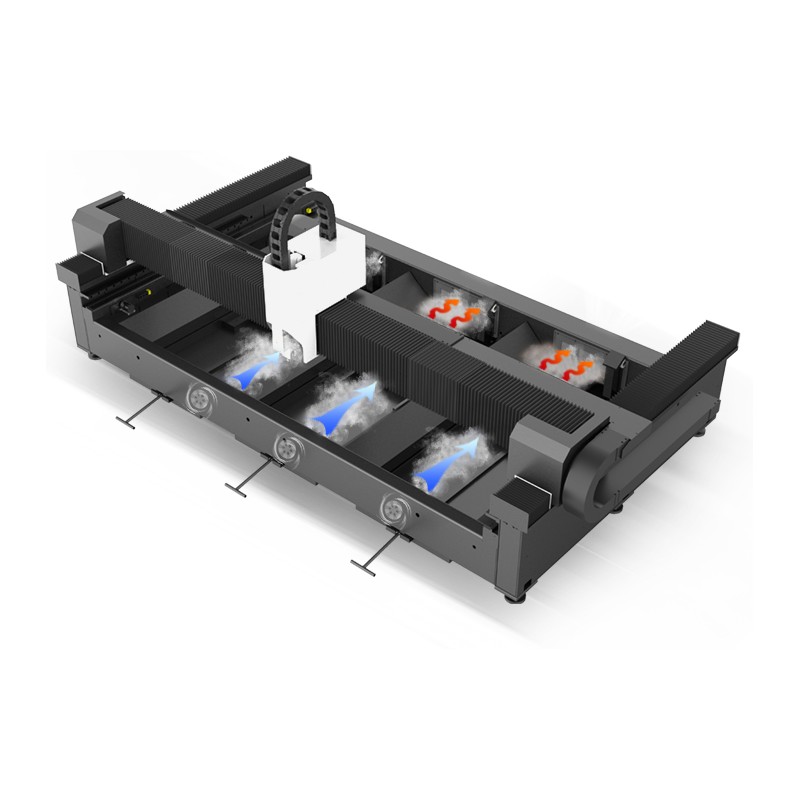

The bed structure has an internal honeycomb design made of multiple welded rectangular tubes. Reinforcements inside increase strength and improve the rigidity and stability of the guide rails, effectively preventing deformation. High strength, stability and tensile resistance ensure up to 20 years of use without distortion.
| WORKING AREA | 1500×3000 mm |
| POWER | 1000W, 2000W, 3000W, 4000W, 6000W |
| REPEAT POSITIONING ACCURACY | ±0.02 mm/m |
| MAXIMUM SPEED | 120 m/min |
| MAXIMUM ACCELERATION | 1.5G |
| DIMENSIONS | 4900×2850×2310 mm |
| POWER SUPPLY | 400V 50Hz |
Actual parameters may vary depending on technical conditions and materials used.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
▶
▶
▶
▶
▶
▶
▶
▶
▶
