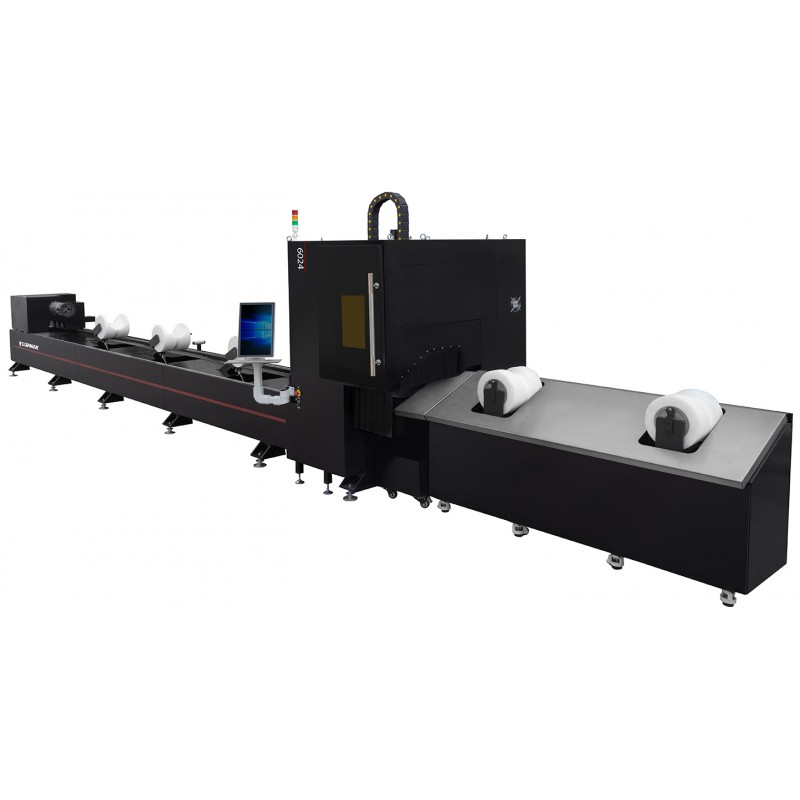

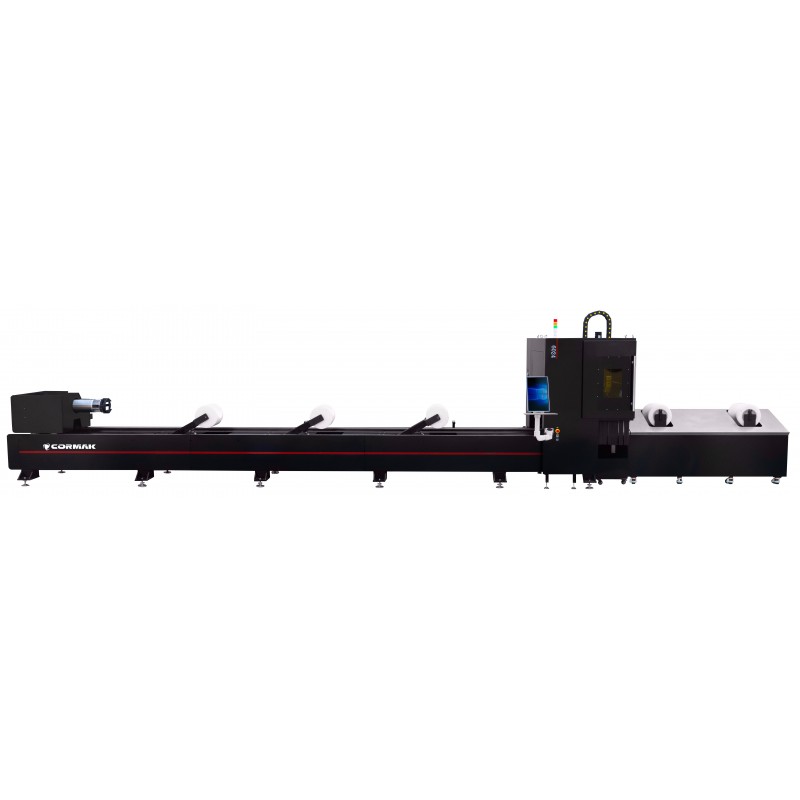

The latest model of the fibre laser for cutting tubes and profiles. The automation of the laser cutting process significantly increases work efficiency. The available laser power options include 1000W, 2000W, 3000W, 4000W, and 6000W.
Fibre laser cutters are modern machines that stand out due to numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also have many benefits that enable production growth (up to 70%) and higher quality. FIBER technology allows cutting of sheets and other materials with various thicknesses — from very thin to very thick. The wavelength in a FIBER laser is 1.064 micrometres. These properties result in an intensity 100 times higher than in CO2 devices of comparable power.
The chuck grips the profile in two directions and automatically performs centring.

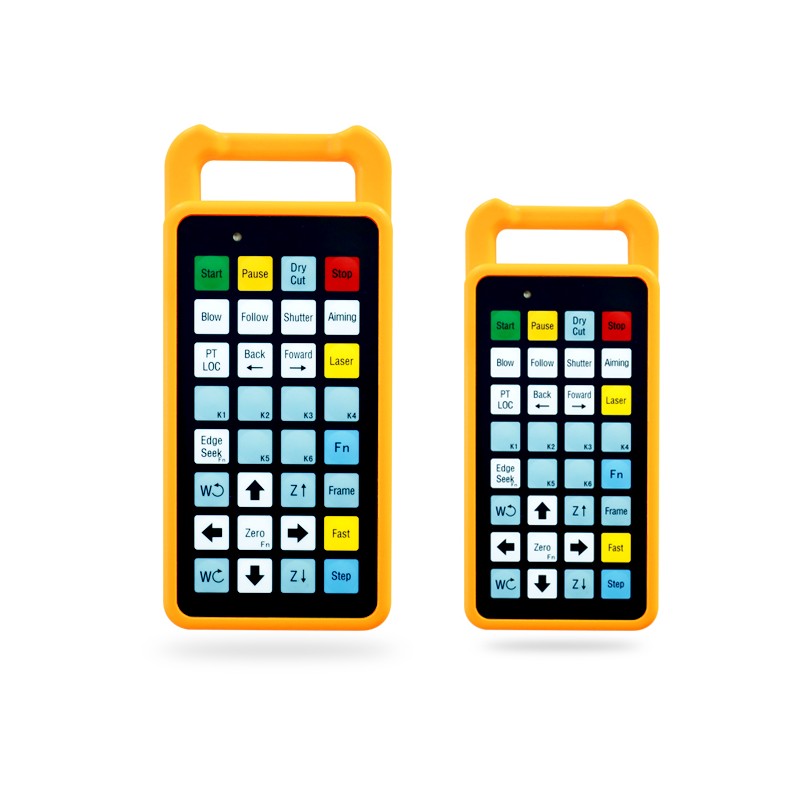

Wireless controller for convenient operation.
An intelligent tube support system has been implemented to prevent deformation during the cutting of long tubes.
The cut parts fall onto a receiver from which they can be further transported.
The feeder automatically delivers the workpiece, reducing cutting time to a minimum.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
| TUBE DIAMETER | 20–240 mm |
| POWER | 4000W |
| REPEATABLE POSITIONING ACCURACY | ±0.02 mm/m |
| POWER SUPPLY | 400V 50Hz |
Actual parameters may vary depending on technical conditions and materials used.
