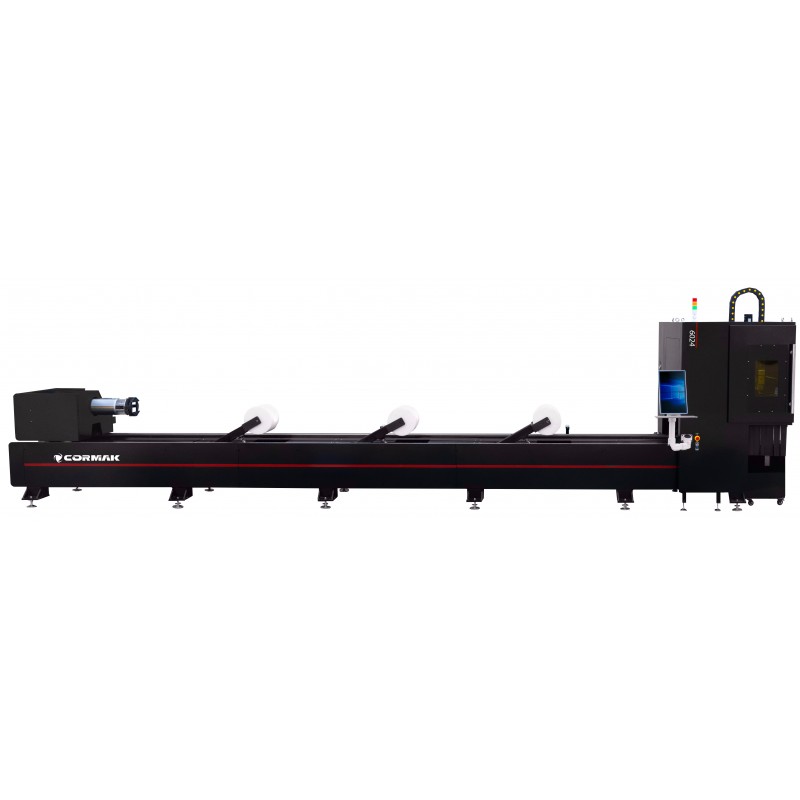

The latest model of the fibre laser for cutting tubes and profiles. The automation of the laser cutting process significantly increases work efficiency. The available laser power options include 1000W, 2000W, 3000W, 4000W, and 6000W.
Fibre laser cutters are modern machines distinguished by numerous advantages. They are not only an excellent and far more cost-effective alternative to CO2 technology but also have many inherent strengths that allow production to expand (up to 70%) and improve its quality. FIBER technology enables cutting of sheets and other materials with varying thicknesses, from very thin to very thick. The wavelength in the FIBER laser is 1.064 micrometres. These properties result in an intensity 100 times greater than in CO2 devices of similar power.
The chuck grips the profile in two directions and automatically performs profile alignment.
Wireless controller for convenient operation.
An intelligent tube support assembly has been implemented to eliminate deformation during the cutting of long tubes.
The cut parts fall onto a receiver, from which they can be further transported.
The feeder automatically supplies the workpiece, thus reducing cutting time to a minimum.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
| TUBE DIAMETER | 20–240 mm |
| POWER | 3000W |
| REPEATABLE POSITIONING ACCURACY | ±0.02 mm/m |
| POWER SUPPLY | 400V 50Hz |
Actual parameters may vary depending on technical conditions and materials used.
