The latest fibre laser for cutting tubes and profiles. The automation of the laser cutting process significantly increases work efficiency. Available laser powers: 1000W, 2000W, 3000W, 4000W, and 6000W.
Fibre laser cutting machines are modern devices distinguished by numerous advantages. They are not only an excellent and much more cost-effective alternative to CO2 technology but also have many features that allow production to grow (by up to 70%) and improve its quality. The FIBER technology enables cutting sheets and other materials of various thicknesses, from very thin to very thick. The wavelength in a FIBER laser is 1.064 micrometres. These properties affect the beam intensity, which is 100 times higher than that of CO2 machines of similar power.

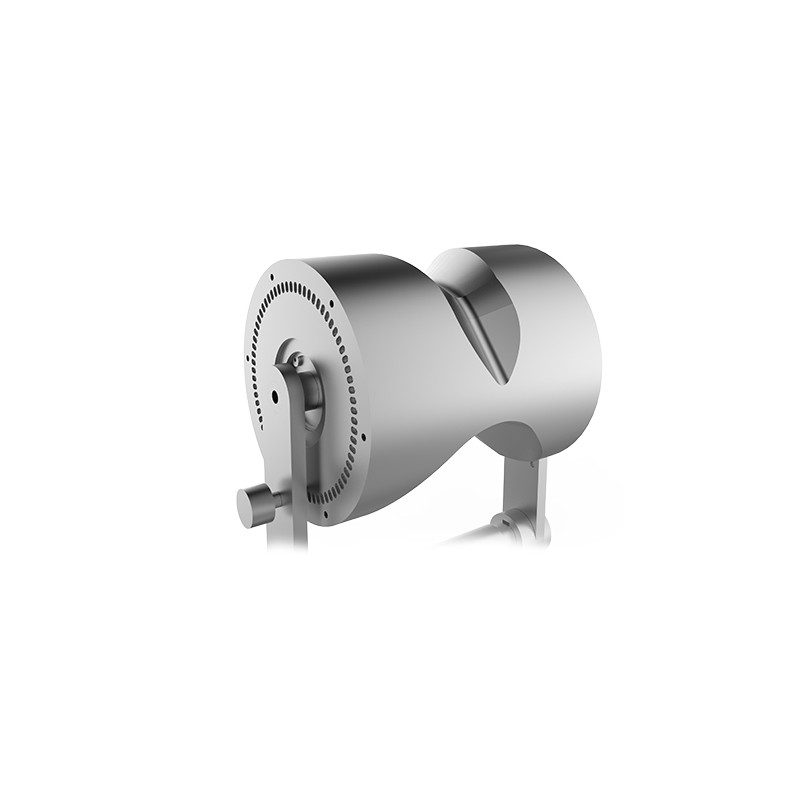

The chuck grips the profile in two directions and automatically performs profile alignment.

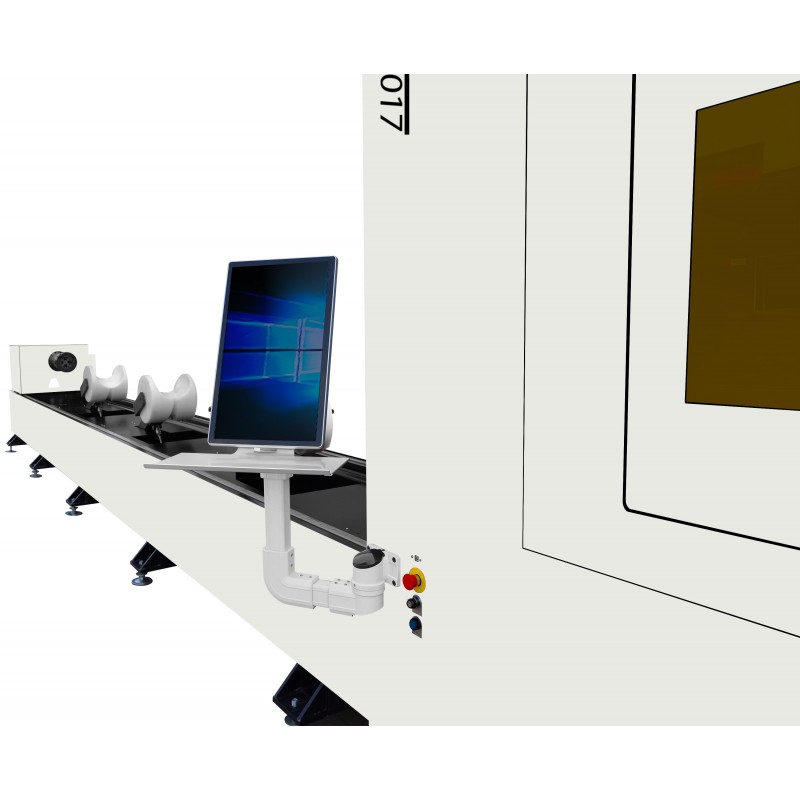

Wireless controller for easier operation.
An intelligent tube support system has been applied, which solves deformation problems occurring when cutting long tubes.
Cut parts fall onto the receiver, from which they can be further transported.
The feeder automatically delivers the workpiece, reducing cutting time to a minimum.
| TUBE DIAMETER | 20–170 mm |
| POWER | 1000W |
| REPEATABLE POSITIONING ACCURACY | ±0.02 mm/m |
| POWER SUPPLY | 400V 50Hz |
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
Actual parameters may vary depending on technical conditions and materials used.
