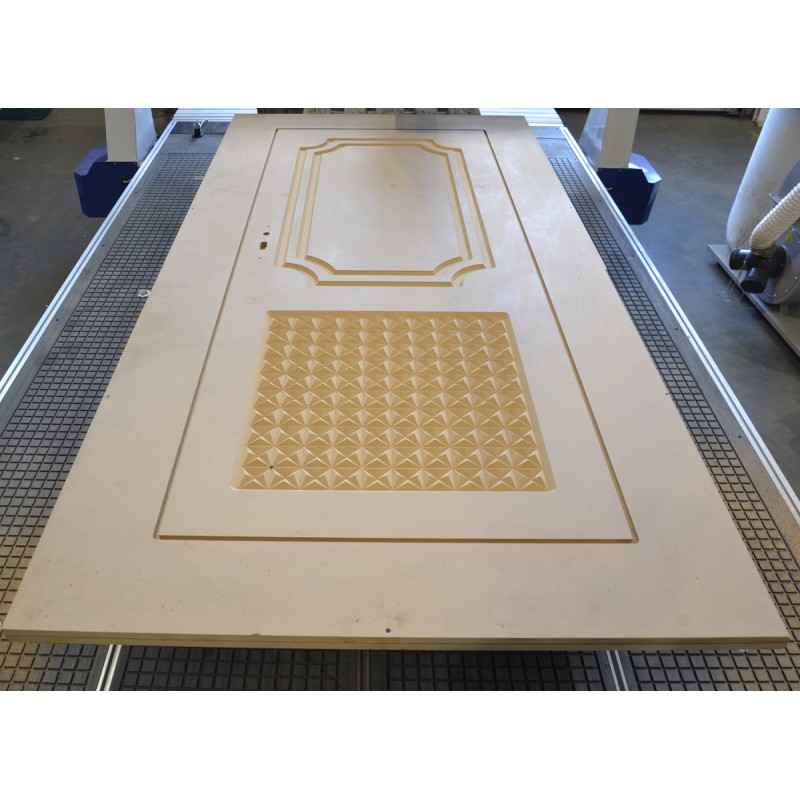

The machining centre with industrial control provides versatile machining capabilities including cutting, drilling, milling, and engraving. Easy access to the machine allows operation by a single operator. The offered CNC router is a precise machine based on components from leading global manufacturers. The CORMAK C2040 ATC CNC router is designed for processing and cutting wood, chipboard, MDF, OSB, plywood, and plastics such as PVC, plexiglass, and dibond. AC YASKAWA SERVO motors ensure appropriate acceleration and travel speeds on each axis.
AC YASKAWA SERVO motors used to drive high-power machine tools ensure appropriate acceleration and axis speeds.
The router operates on new-generation software.
The machine is controlled via a Japanese industrial controller with a handwheel and LCD display.
We offer machine tools with full CE certification.
By choosing the CORMAK brand, you choose machining precision, long service life, and safety for operators.
| Working area | 2150x4300 mm |
| Z axis | 350 mm |

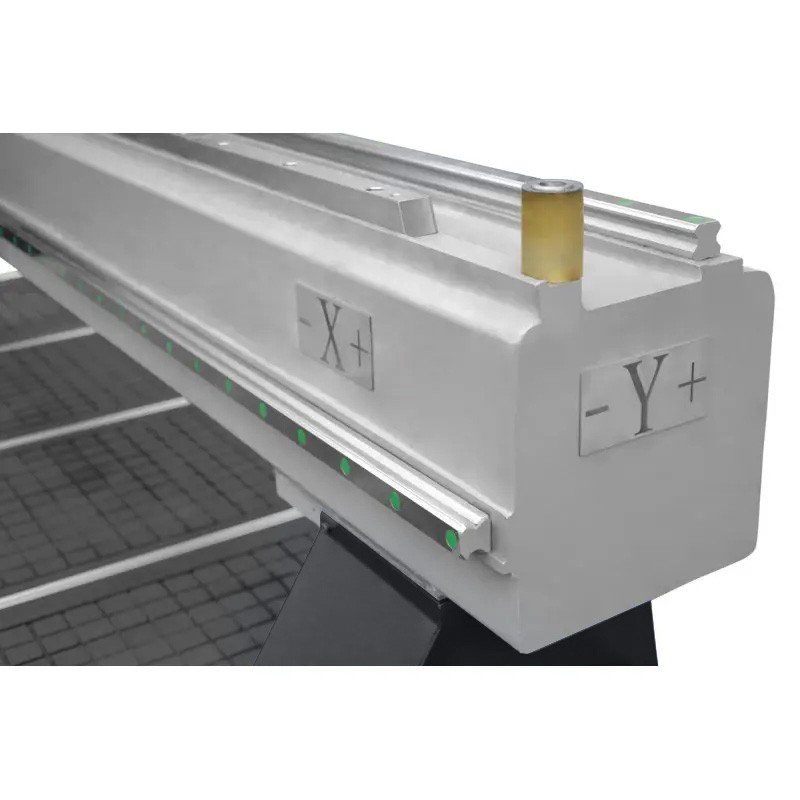

| Construction | Gantry – cast iron / table – welded steel |
| Drives | servo motors, hybrid |

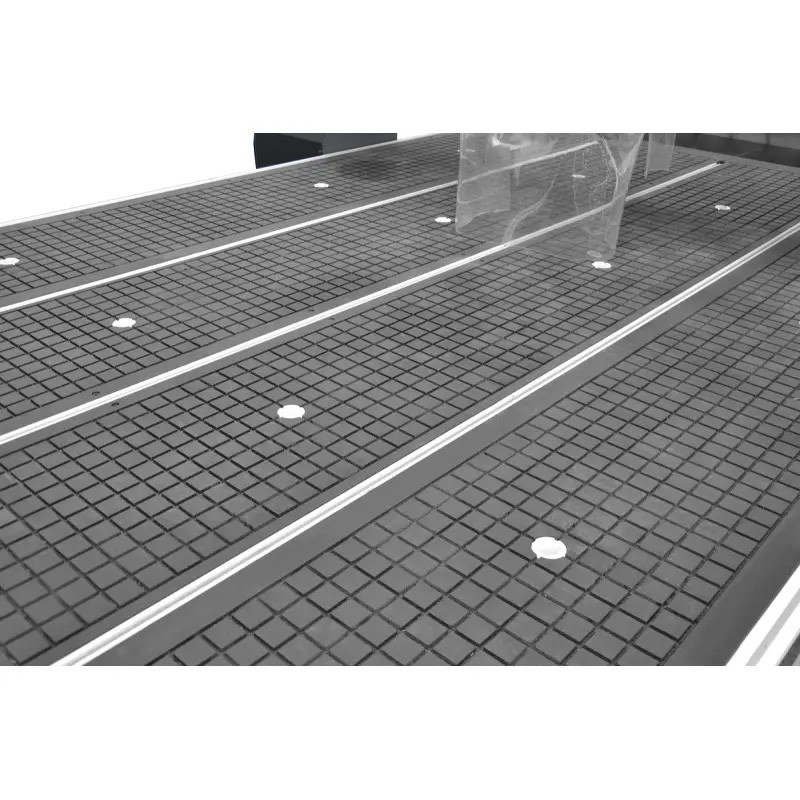

| Table | hybrid |
| Spindle power | 9 kW |

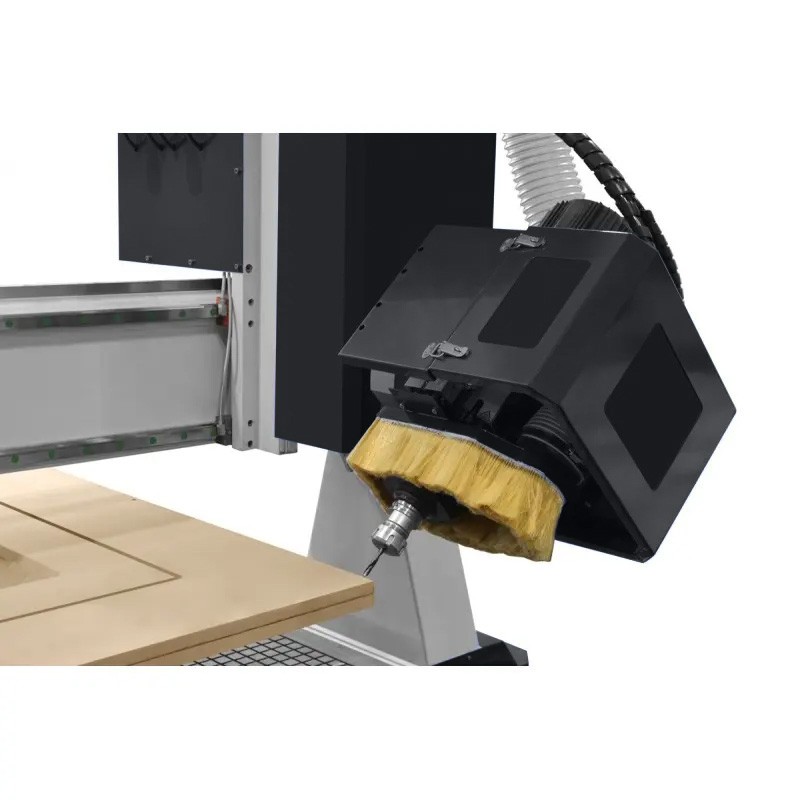

| Spindle | HQD air-cooled (optional oil mist) |
| Spindle speed | from 6,000 to 24,000 rpm |
| Power supply | 400 V, compressed air min. 8 bar |
| Re-positioning accuracy | 0.01 mm |

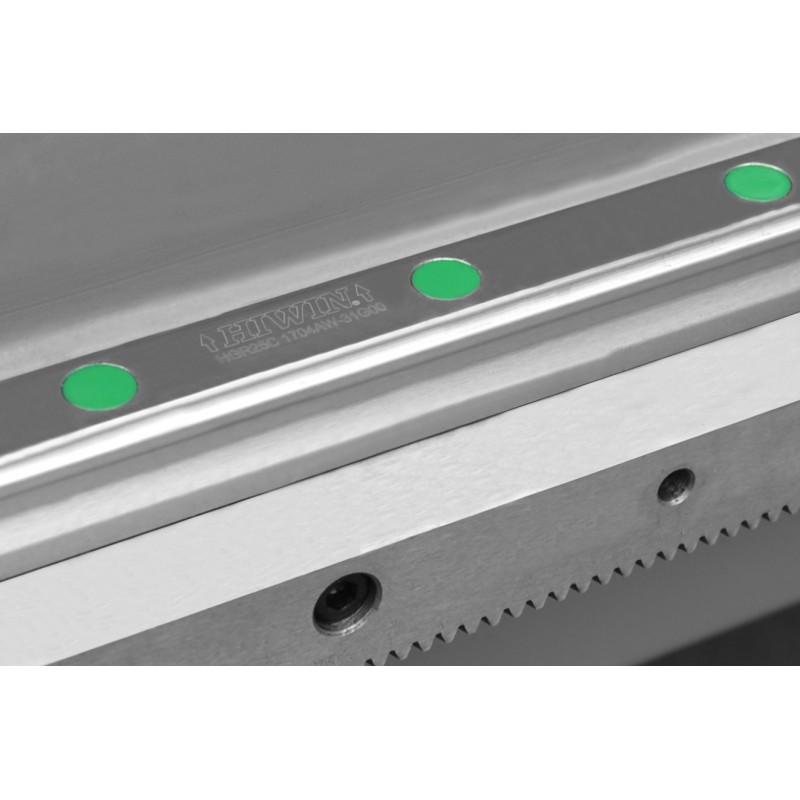

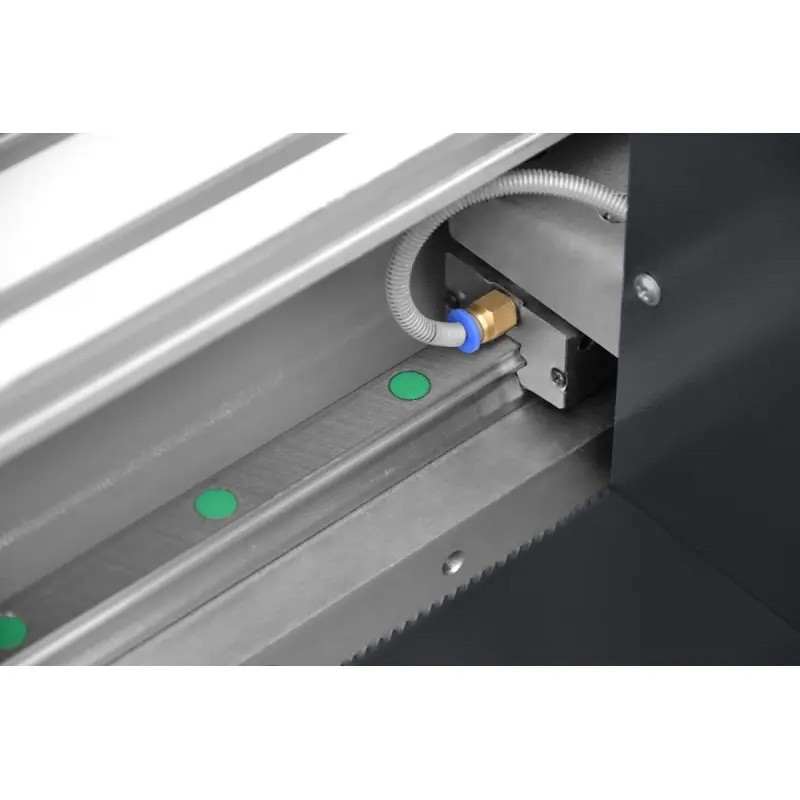

| Linear bearings | trapezoidal rails, Hiwin carriages |
| Material clamping | vacuum, hybrid |
| Vacuum pump | (option*) 7.5 kW, 4 independent vacuum zones |
| Software | UCanCAM V13 (option*) |
| Dimensions | 5070 x 2870 x 1950 mm |
| Weight | 2450 kg |
Unloading and positioning of the machine on the customer’s side.
Power plug on the customer’s side due to different 16A / 32A sockets.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
▶
