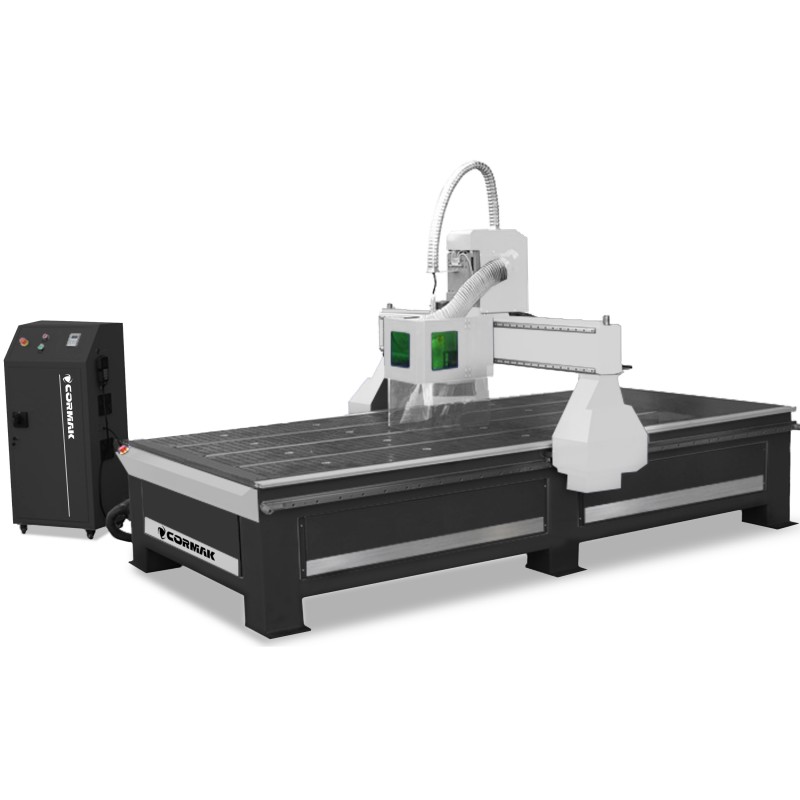

CNC Milling Machine / CNC Router CORMAK C1530 BSP (1500x3000)

• Rigid welded steel structure,
• The gantry arms are made of hardened, powder-coated thick sheet metal, providing increased stiffness and improved machining precision.

Worktable

• Equipped with T-slots for manual clamping of materials measuring 1500 x 3000 mm,

Drive

• SERVO motors provide high acceleration and travel speed in all directions.

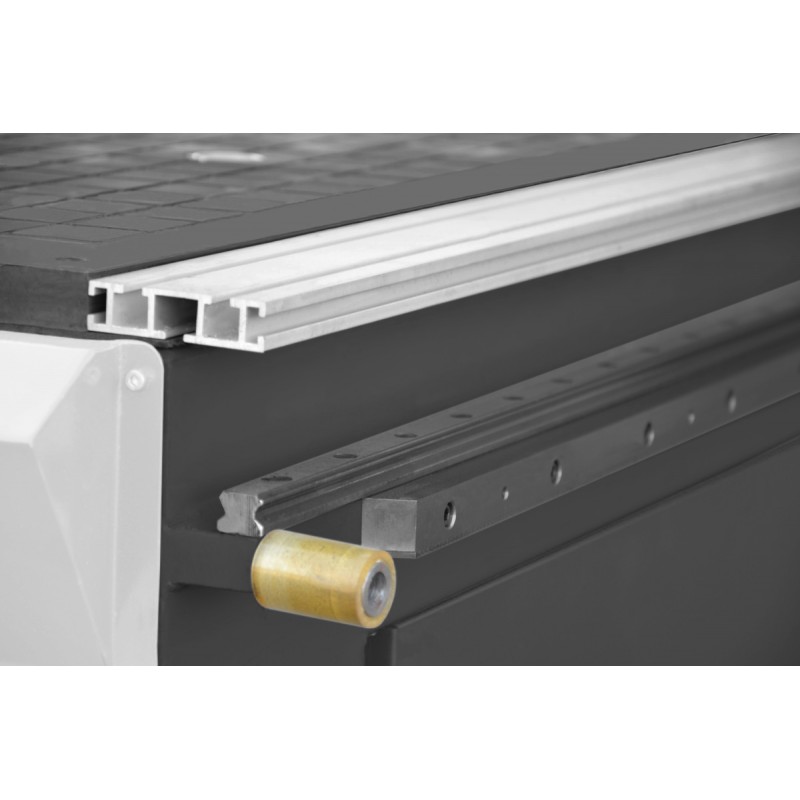

• X and Y axes use high-quality rack and pinion drives, ensuring durability and precision,
• Z axis driven by a high-quality ball screw.
• All axes move on linear guideways.
• The machine is equipped with a tool height sensor.
• Linear bearings: trapezoidal rails, Hiwin carriages.

Spindle

• High-quality brushless spindle designed for durability.
• Additionally equipped with an innovative AIR cooling system (not liquid!)
• The spindle design uses precision machine bearings ensuring quiet operation and long service life.
• Tool height measuring sensor – included.
• Spindle speed range: 4,500–18,000 rpm.
• Tool clamping via ER32 collets.

Software

• OPTIONALLY latest software UCanCAM V13 (software enables importing files from Corel, AutoCAD, etc. Import/export, text editing and creation, and many other functions)
• Allows fast and simple design of parts, converting them into G-code. It also allows importing ready-made files from other programs.
• The machine features G-code path memory (in the event of power failure, it resumes from the last point without time or material loss.)

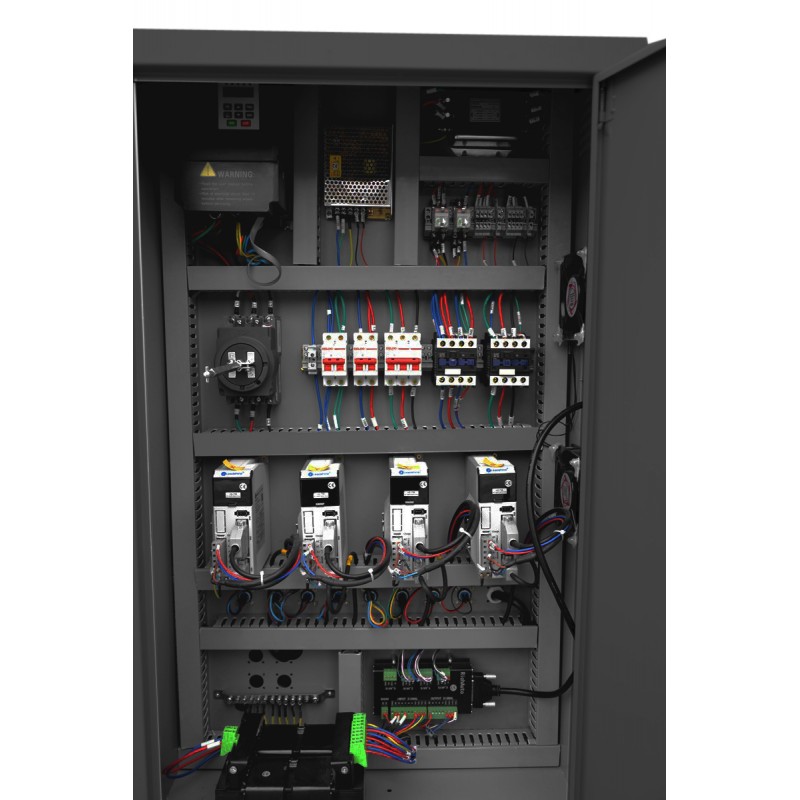

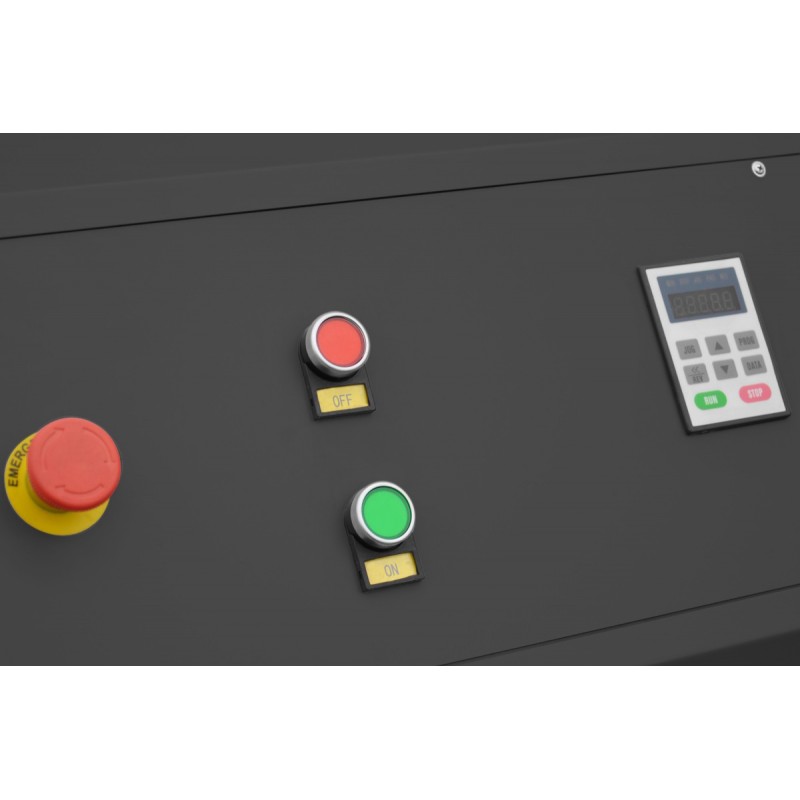

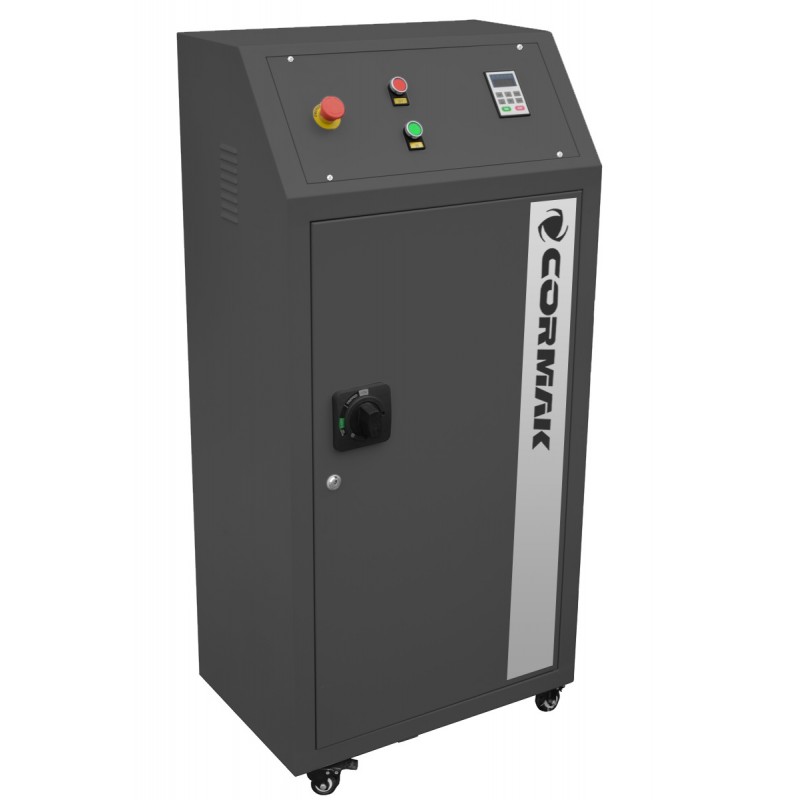

DSP Control

• Digital Signal Processing – digital signal processing technology
• The DSP controller has its own processor and memory, ensuring reliable operation and ease of control.
• The controller ensures smooth operation and machining precision.
• After power loss, program reinitialisation is unnecessary.
• Built-in memory allows machine operation without reloading the program each time.



We offer machines with genuine CE certification – certified by leading EU institutions.

By choosing the CORMAK brand, you choose machining precision, long service life, and operator safety.

We offer warranty and post-warranty service. Machine training and/or commissioning is available upon individual pricing — please contact our consultant.

Technical parameters

Equipment

• Air-cooled spindle
• Hybrid servo drives
• Raised Z-axis gantry – 350 mm
• Tool height sensor included
• Tool set, collets, levelling feet, and other accessories
• DSP control – digital data processing

Unloading and machine placement are the customer’s responsibility.

Power plug on the customer’s side due to various 16A / 32A sockets.

On-site commissioning of CNC routers available upon request, with individual pricing.
