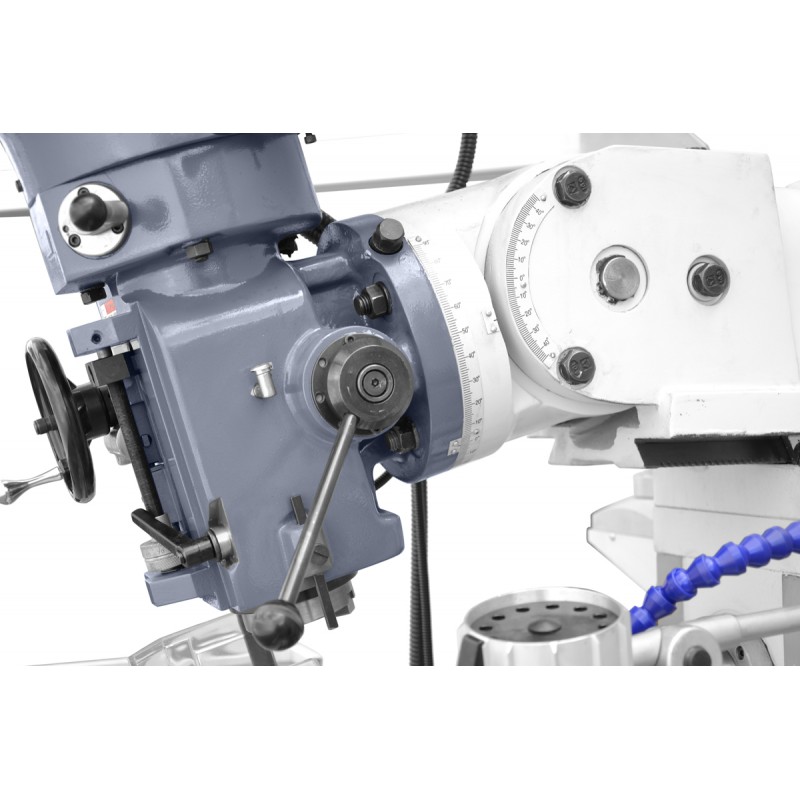

The CORMAK MFM300 Universal Multi-Purpose Milling Machine is an excellent solution for companies specialising in metal machining. With a head tilting on two axes, offering a right/left tilt of ±90° and a front/back tilt of ±45°, this machine performs complex milling operations with the highest precision. Featuring three automatic feeds, manual quill coarse feed and a 3-axis digital readout, the MFM300 delivers efficiency and versatility in both single and serial production. Additional functions such as central lubrication, manual spindle brake and a cooling system with chip tray make this milling machine indispensable in daily workshop operations.
|
Technical parameters | |
|---|---|
|
TABLE DIMENSIONS |
1370 × 320 mm |
|
DISTANCE FROM HORIZONTAL SPINDLE TO TABLE SURFACE |
45 – 475 mm |
|
DISTANCE FROM VERTICAL SPINDLE TO TABLE SURFACE |
178 – 868 mm |
|
MAX LONGITUDINAL TRAVEL |
820 mm |
|
MAX HORIZONTAL TRAVEL |
300 mm |
|
MAX VERTICAL TRAVEL |
400 mm |
|
NUMBER OF T-SLOTS |
3 |
|
T-SLOT WIDTH |
14 mm |
|
T-SLOT SPACING |
80 mm |
|
SPINDLE TAPER |
Vertical: ISO 40 Horizontal: ISO 40 |
|
SPINDLE SPEEDS |
Vertical: 65 – 4660 rpm Horizontal: 35 – 1500 rpm |
|
LONGITUDINAL RAPID FEED RATE |
30 – 830 mm/min |
|
HORIZONTAL RAPID FEED RATE |
30 – 830 mm/min |
|
VERTICAL RAPID FEED RATE |
23 – 625 mm/min |
|
SPINDLE MOTOR POWER |
Vertical: 3.7 kW Horizontal: 3 kW |
|
COOLANT PUMP POWER |
40 W |
|
NET WEIGHT |
1700 kg |
|
DIMENSIONS |
1820 × 1680 × 2350 mm |
