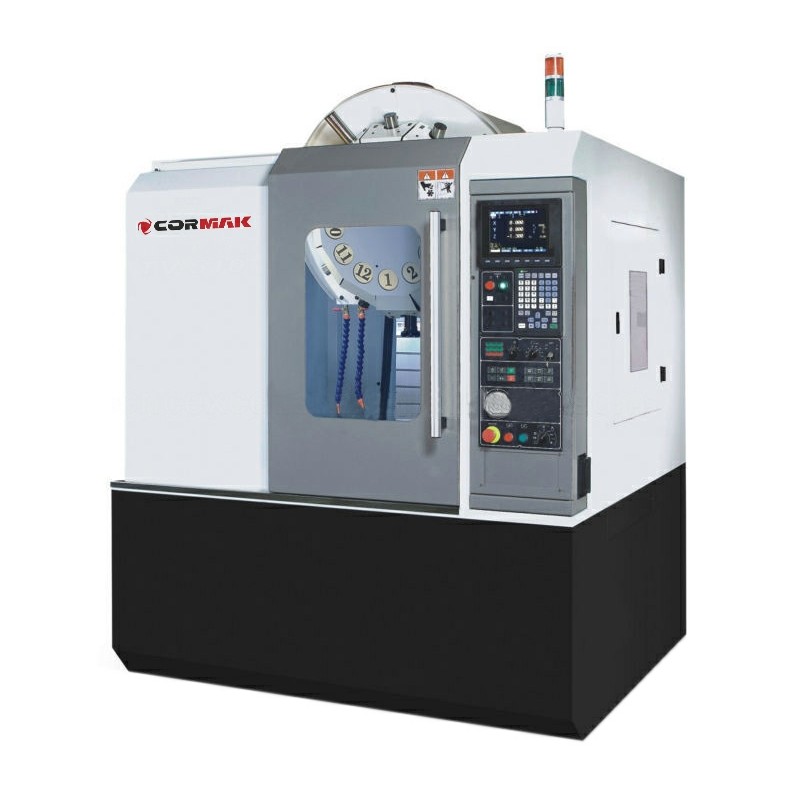

Designed for machining parts requiring numerous drilled and tapped holes as well as light milling operations. A highly efficient machine tool for serial production. Rapid traverses up to 48 m/min; spindle speed up to 12,000 rpm.
|
TABLE SIZE |
400×570 mm |
|
X-AXIS TRAVEL |
500 mm |
|
Y-AXIS TRAVEL |
450 mm |
|
Z-AXIS TRAVEL |
300 mm |
|
SPINDLE–TABLE DISTANCE |
155–450 mm |
|
SPINDLE TAPER |
BT30 (100 mm) |
|
SPINDLE SPEED |
12,000 rpm |
|
RAPID FEED X,Y,Z |
48 m/min |
|
MAIN MOTOR POWER |
5.5 kW |
|
TORQUE OF X,Y,Z MOTORS |
8/10/12 Nm |
|
MAX. TABLE LOAD |
251 kg |
|
NET WEIGHT |
3100 kg |
Control system: SIEMENS 828D or FANUC Oi Mate MD
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
