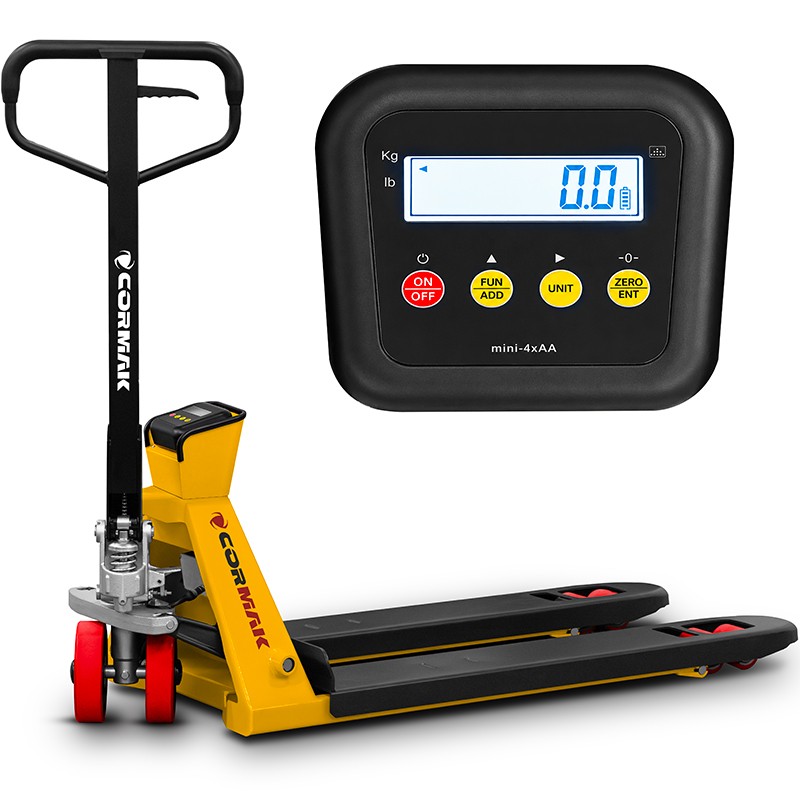

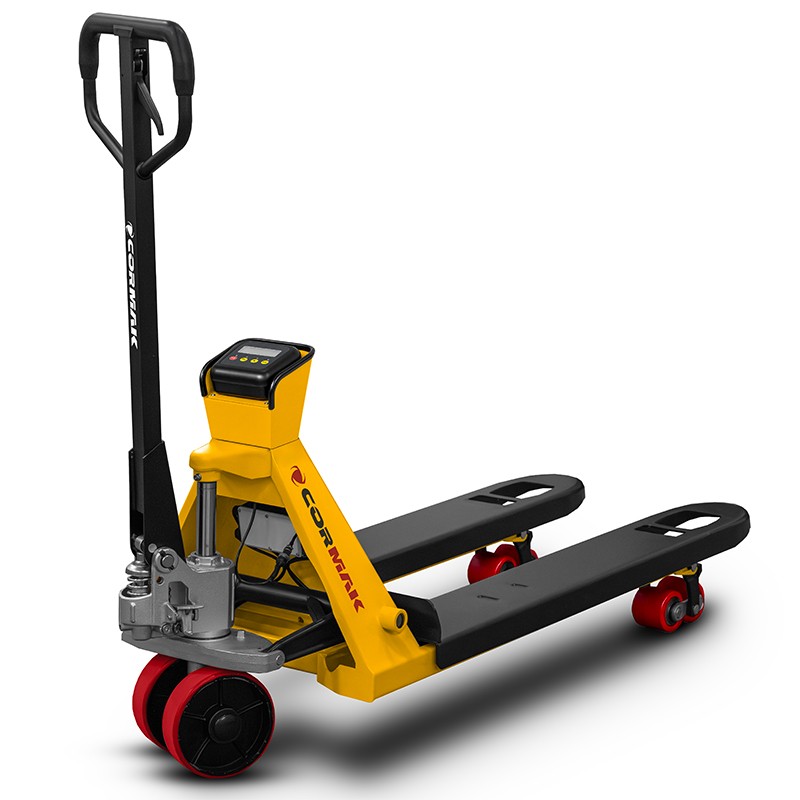

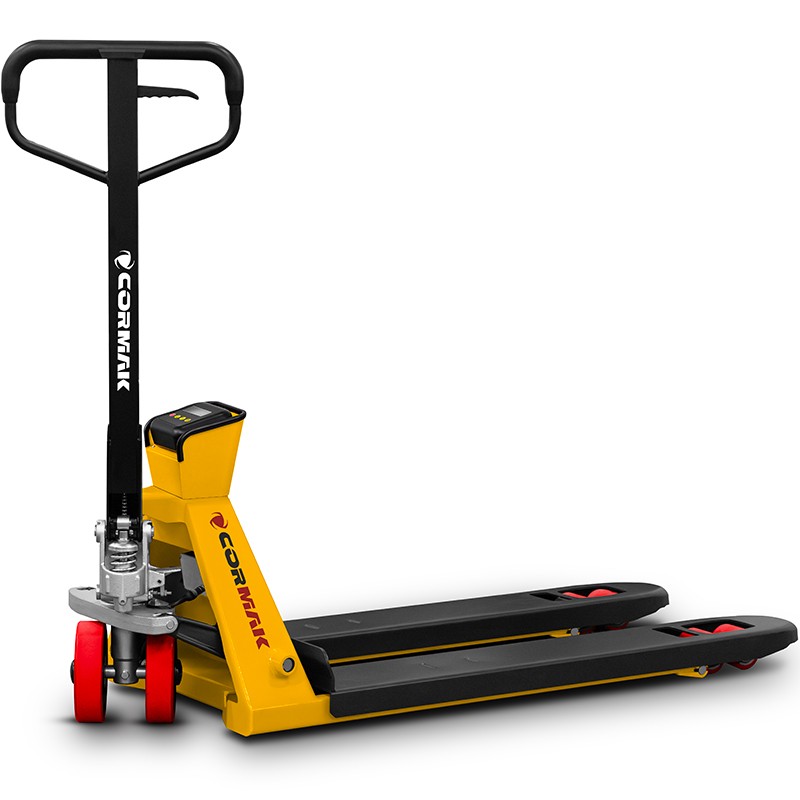

The SP2000E pallet truck combines pallet transport with quick load weight checking. Thanks to the built-in scale, there is no need to move goods to a separate weighing station, saving time and streamlining work. The unit facilitates delivery checks, order picking and the preparation of pallets for dispatch. Its robust construction is suitable for everyday work with heavy loads. The SP2000E is a practical solution for warehouses, wholesalers, production facilities and logistics centres.
The SP2000E pallet truck with electronic scales combines the transport of pallets with the ability to check the weight of the load as it is being transported. With a lifting capacity of 2,000 kg, it is capable of handling heavy goods in warehouses, distribution centres, production facilities and goods-in and goods-out areas.

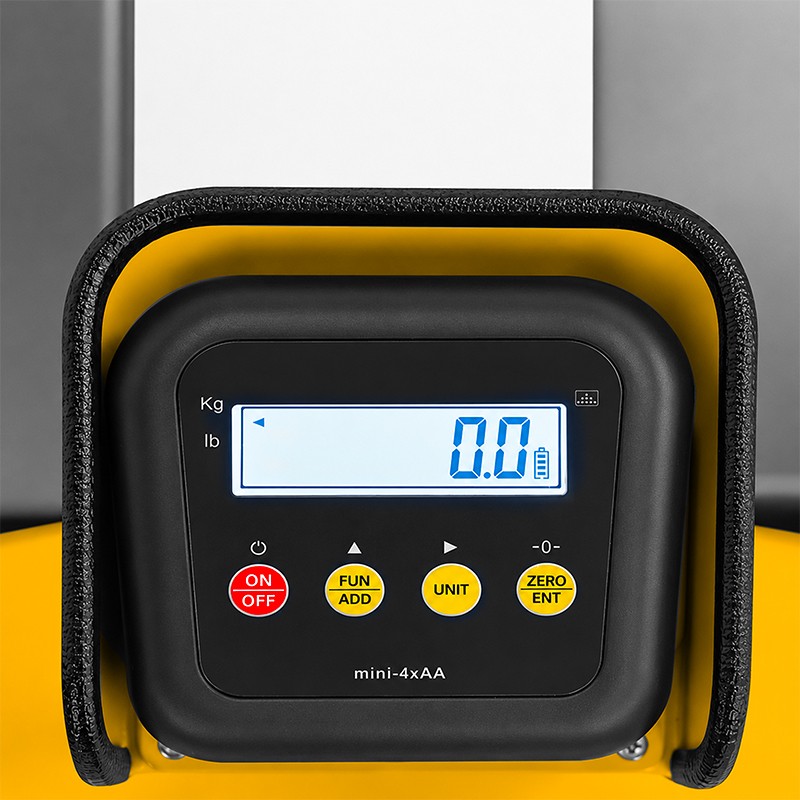

The integrated weighing system enables the weight of the pallet to be checked without having to move it to a separate weighing station each time. This solution streamlines the receipt of deliveries, order picking, stock control and the preparation of goods for dispatch.
The key distinguishing feature of the SP2000E model is the combination of a classic pallet truck’s functions with an electronic weighing system. The operator can pick up a pallet, check the load’s weight, and then transport it to the desired location.
Reducing the number of additional operations shortens handling times and streamlines work organisation. The pallet truck is particularly well-suited to situations where the weight of pallets is regularly checked during goods receipt, order picking or parcel preparation.
The truck’s design is suited to handling loads weighing up to 2,000 kg. This allows the truck to be used for transporting pallets containing production materials, cartons, components, semi-finished products and finished goods.
The forks are 1,150 mm long and 165 mm wide. Their spacing is 555 mm, ensuring adequate support for the pallet during lifting, weighing and transport.
The minimum fork height of 85 mm allows them to be slid under standard warehouse pallets. The 110 mm lifting stroke enables the load to be raised above the floor and safely moved to a storage, order-picking or dispatch area.
The lifting mechanism is operated via the tiller, which is also used for steering and manoeuvring. This design ensures the operator has full control over the truck whilst picking up, transporting and setting down the load.

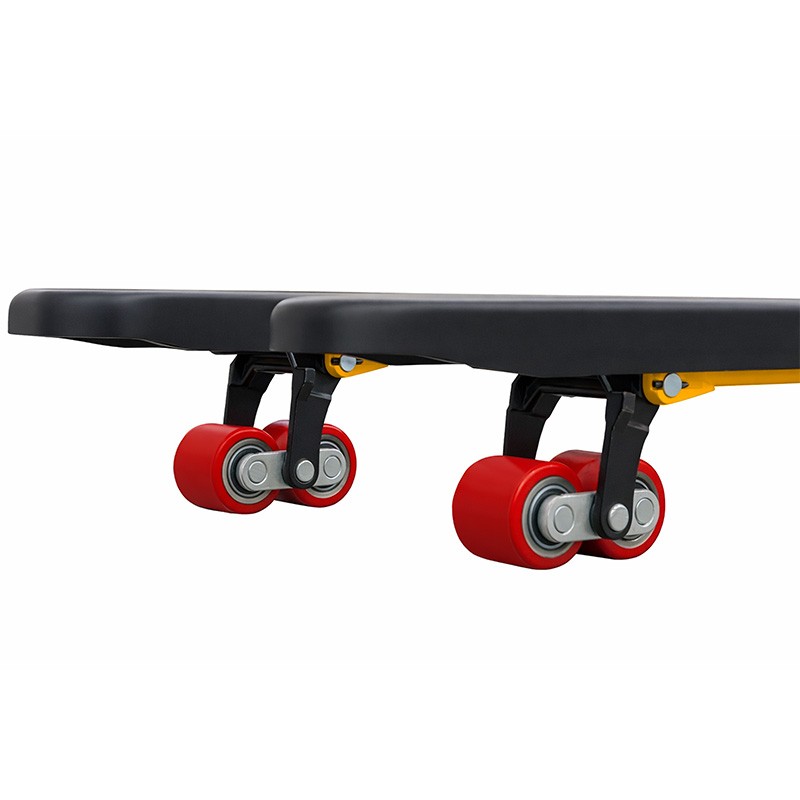

Swivel castors measuring Ø180 × 50 mm make it easy to change direction, whilst fork rollers measuring Ø80 × 70 mm provide support for the front of the truck. The 1220 mm wheelbase contributes to the truck’s stability when moving pallets.
The truck’s unladen weight is 98 kg. Its robust construction allows the SP2000E to be used in day-to-day warehouse operations where both the transport and control of goods weight are required.
The SP2000E pallet truck with electronic scales is ideal for use in, amongst other places:
The SP2000E model eliminates the need for two separate devices. A single forklift can pick up a load, check its weight and transport it to the designated area. This facilitates the control of goods flow and allows daily warehouse operations to be carried out more quickly.
A lifting capacity of 2,000 kg, standard fork length and an integrated electronic scale provide a practical solution for companies wishing to combine internal transport with the weighing of loads.
| LOAD CAPACITY | 2,000 kg |
| MINIMUM FORK HEIGHT | 85 mm |
| MAXIMUM FORK HEIGHT | 195 mm |
| FORK LENGTH | 1150 mm |
| FORK SPACING | 555 mm |
| OVERALL LENGTH | 1550 mm |
| AXLE SPACING | 1,220 mm |
| STEERING WHEEL DIMENSIONS | Ø180 × 50 mm |
| FORK ROLLER DIMENSIONS | Ø80 × 70 mm |
| WEIGHING ACCURACY | 0.5% |
| GRADATION | 0.5 kg |
| WEIGHING CAPACITY | 98 kg |
The SP2000E pallet truck with electronic scales streamlines the transport, weighing and inspection of loads in a single operation. It is a practical solution for businesses wishing to reduce pallet handling times and improve warehouse organisation.
