The industrial high-performance slant-bed lathe CORMAK CK7150x750 features a compact, rigid design, ensuring easy operation and maintenance. Dedicated for machining ferrous, non-ferrous and non-metallic components. The lathe performs turning of cylindrical, conical, and face surfaces, boring, grooving, threading and spherical turning, making it a versatile solution for industries such as automotive, machinery, and precision engineering. Equipped with a 12-position tool turret, it ensures efficient production in both batch and single-part machining.

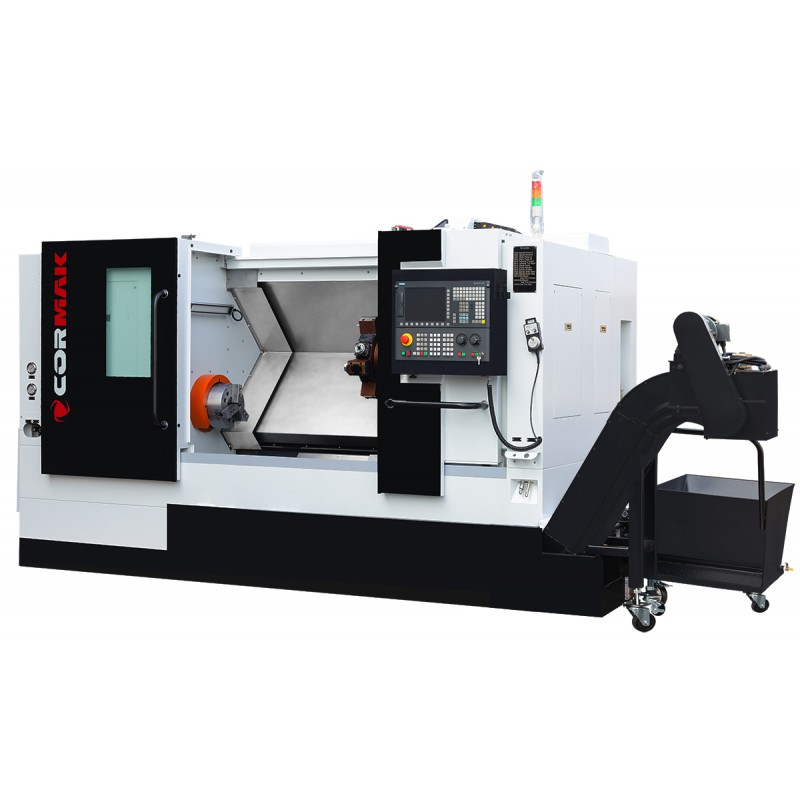

CNC Slant-Bed Lathe CORMAK CK7150x750
The CNC slant-bed lathe CORMAK CK7150x750 is an advanced industrial machine designed for high-precision metal machining. Equipped with the modern Siemens Sinumerik 808D control system and a robust structure, it ensures reliability and efficiency in demanding production environments.
The CK7150x750 CNC lathe is designed for modern production plants requiring precision, durability and flexibility in metal cutting. Combining advanced technologies with a solid slant-bed design, this lathe maximises productivity while maintaining the highest machining accuracy. Its key advantages include:
The industrial lathe CORMAK CK7150x750 features a 45° slant bed ensuring high rigidity, thermal stability and effective chip evacuation. This design enhances precision and extends the machine’s operational life.
The spindle with a 52 mm bore (optional 66 mm or 86 mm) and 210 mm chuck is powered by an 11 kW motor, reaching speeds up to 3000 rpm. It enables efficient machining of both soft and hard materials.
The 12-position tool turret allows quick tool changes (tool size 25×25 mm) with an option for driven tools. The automatic lubrication system ensures smooth motion and reduces mechanical wear.
The efficient cooling system prevents overheating of tools and parts during long production runs. The hydraulic tailstock with an 88 mm sleeve, 85 mm travel and MT5 taper ensures secure support of workpieces up to 750 mm long.
The CORMAK CK7150x750 CNC metal lathe combines advanced technology with robust construction to deliver exceptional precision and productivity. The slant bed design minimises vibration for superior surface finish and dimensional accuracy. With a maximum turning diameter of 500 mm over bed and 290 mm over carriage, it handles a wide range of workpieces. Positioning accuracy of 0.001 mm and rapid feed ensure efficient operation in both batch and single production.
The CK7150x750 CNC lathe is the perfect solution for workshops and production facilities requiring reliable precision equipment. It is used in:
| Max turning diameter over bed | 500 mm |
| Max turning diameter over carriage | 290 mm |
| Max workpiece length | 750 mm |
| Travel (X/Z axis) | 500/210 mm |
| Spindle bore | 52 mm (optional 66 or 86 mm) |
| Spindle speed | 3000 rpm |
| Chuck size | 210 mm |
| Spindle motor power | 11 kW |
| Positioning accuracy (X/Z) | 0.001 mm |
| Tool size | 25×25 mm (driven tools optional) |
| Number of tools | 12 |
| Tailstock sleeve diameter | 88 mm |
| Tailstock sleeve travel | 85 mm |
| Tailstock taper | MT5 |
| Dimensions (L×W×H) | 3700×1800×2100 mm |
| Weight | 4600 kg |
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
